FRAM Extra Guard® Oil Filter
| Height (Inch) | 3.386 |
|---|---|
| Outer Diameter Top (Inch) | 2.579 |
| Anti-Drain Back Valve | No |
| Bypass Relief Valve | No |
| Gasket Inside Diameter (Inch) | 2.898 |
| Gasket Outside Diameter (Inch) | 3.3 |
| Gasket Thickness (Inch) | 0.13 |
| Filter Media Material | Synthetic |
| Inside Diameter Bottom (Inch) | 1.004 |
| O-Ring Inside Diameter (Inch) | 0.591 |
| O-Ring Outside Diameter (Inch) | 0.709 |
| O-Ring Thickness (Inch) | 0.118 |
| O-Rings Included | Yes |
| Outer Diameter Bottom (Inch) | 2.579 |
| Top Inside Diameter (Inch) | 0.984 |
| Torque Nut | No |
| Washer Inside Diameter (Inch) | 0.563 |
| Washer Outside Diameter (Inch) | 0.768 |
| Washer Thickness (Inch) | 0.059 |
Search
- Description

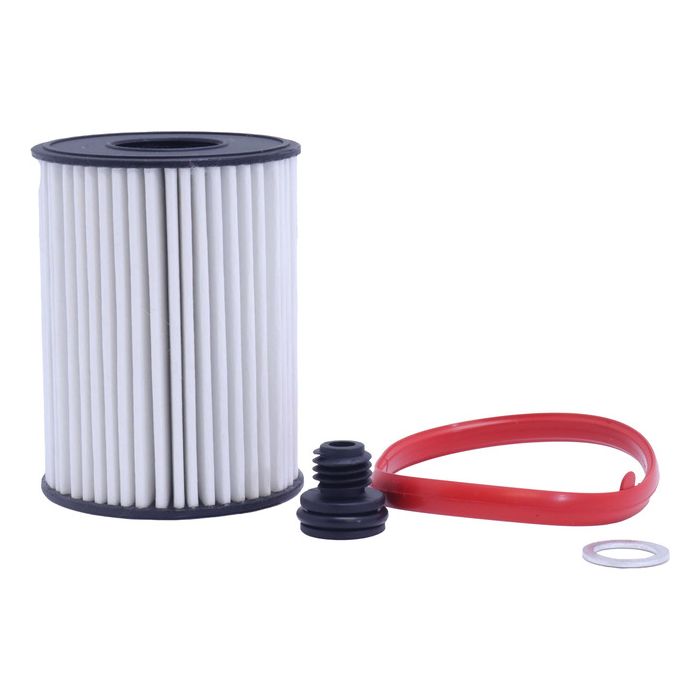

FRAM Ultra Synthetic® oil filters are engineered for drivers who are looking for ultimate performance and engine protection. Its dual-layered synthetic blend media provides 99%+ filtering efficiency and protects up to 20,000 miles (32,000 kilometers).
- Proven protection for up to 20,000 miles (32,000 kilometers)
- Synthetic blend media provides 99%+ filtration efficiency*
- Optimized for synthetic motor oil
- Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today’s engines
*FRAM Group testing of average filter efficiency of XG8A, XG3387A and XG4967 under ISO 4548-12 for particles greater than 20 microns.
**FRAM Group mulitpass testing of representative sampling of average filter capacity of comparable competitive retail products based on ISO4548-12 for XG8A and XG3387A.
***Greater than 3X the functional life of Nitrile ADB when tested per SAE HS806 hot oil and Anti-drain-back test.
+ FRAM Group testing per USCAR-36 Low Temperature Leakage test after hot oil, when compared to standard nitrile gasket.
?Not all features are available on every part number in the product line. Check the package for specific features of individual filters.
- Applications
This Item Fits the Following Vehicles:
Year Make Model Engine 25-22 HYUNDAI SANTA CRUZ L4-2.5L 25-21 HYUNDAI SANTA FE L4-2.5L 25-20 HYUNDAI SONATA L4-2.5L 25-22 HYUNDAI TUCSON L4-2.5L 25-21 KIA K5 L4-2.5L 25-21 KIA SORENTO L4-2.5L 25-23 KIA SPORTAGE L4-2.5L - Comparison
COMPETITOR NAME COMPETITOR PART # Carquest 95329 FRAM Core COR12811ACC FRAM Drive FD12811 FRAM Extra Guard CH12811 FRAM Force FF12811 FRAM Pro FP12811BP FRAM Synthetic Endurance FE12811 FRAM Titanium FS12811 FRAM Tough Guard TG12811 Hyundai 26350-2S000 LUBER-FINER P1086 MicroGard Select MSL10514 NAPA Gold Filters 100514 NAPA Proformer 2100514 Premium Guard PG99527EX PurolatorONE PL11752 Service Champ CF1752 STP Filters S45020 STP Filters S45020XL Valvoline VO-208 Wix WL10514 - Installation
- Remove drain plug from housing cap if present and allow oil to drain from cap. Remove housing cap, old gaskets/O-Rings, and filter element. Discard the used filter element and gaskets/O-Rings in the proper manner.
- Clean filter housing components and apply a light coating of clean engine oil to the new provided gaskets/O-Rings. Install, being careful to avoid damage to the gaskets/O-Rings. Avoid twisting of the gaskets/O-Rings.
- Install new filter element into the housing cap. Reinstall the housing cap and tighten to the proper installation torque as listed on the housing cap or in the service manual. Reinstall the housing cap drain if present to the proper installation torque.
