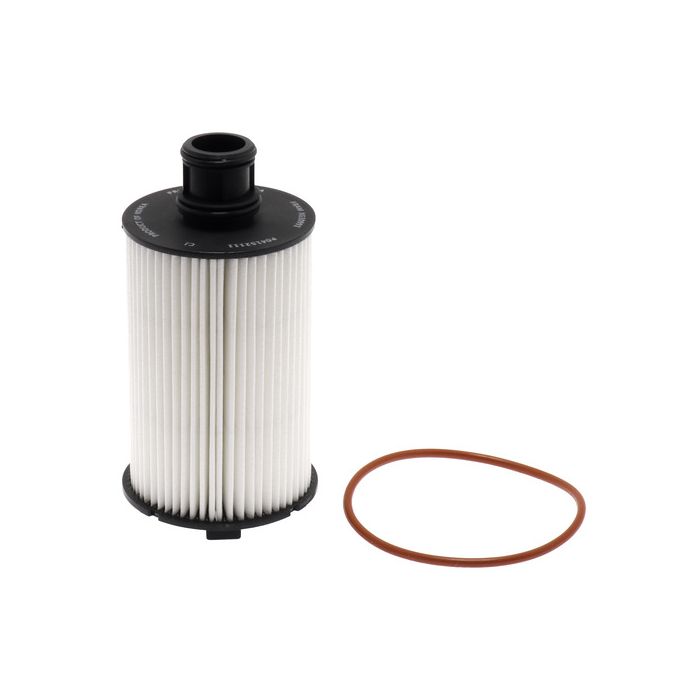

FRAM Ultra Synthetic® Oil Filter
| Height (Inch) | 5.57 |
|---|---|
| Outer Diameter Top (Inch) | 2.921 |
| Anti-Drain Back Valve | No |
| Bypass Relief Valve | No |
| Filter Media Material | Synthetic |
| Inside Diameter Bottom (Inch) | 0.779 |
| O-Ring Inside Diameter (Inch) | 3.236 |
| O-Ring Outside Diameter (Inch) | 3.373 |
| O-Ring Thickness (Inch) | 0.137 |
| O-Rings Included | Yes |
| Outer Diameter Bottom (Inch) | 2.755 |
| Top Inside Diameter (Inch) | 0.992 |
| Torque Nut | No |
Search
- Description
FRAM Ultra Synthetic® oil filters are engineered for drivers who are looking for ultimate performance and engine protection. Its dual-layered synthetic blend media provides 99%+ filtering efficiency and protects up to 20,000 miles (32,000 kilometers).
- Proven protection for up to 20,000 miles (32,000 kilometers)
- Synthetic blend media provides 99%+ filtration efficiency*
- Optimized for synthetic motor oil
- Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today’s engines
*FRAM Group testing of average filter efficiency of XG8A, XG3387A and XG4967 under ISO 4548-12 for particles greater than 20 microns.
**FRAM Group mulitpass testing of representative sampling of average filter capacity of comparable competitive retail products based on ISO4548-12 for XG8A and XG3387A.
***Greater than 3X the functional life of Nitrile ADB when tested per SAE HS806 hot oil and Anti-drain-back test.
+ FRAM Group testing per USCAR-36 Low Temperature Leakage test after hot oil, when compared to standard nitrile gasket.
?Not all features are available on every part number in the product line. Check the package for specific features of individual filters.
- Applications
This Item Fits the Following Vehicles:
Year Make Model Engine 20-17 JAGUAR F-PACE V6-3.0L 24-19 JAGUAR F-PACE V8-5.0L 21-14 JAGUAR F-TYPE V6-3.0L 24-14 JAGUAR F-TYPE V8-5.0L 19-17 JAGUAR XE V6-3.0L 2019 JAGUAR XE V8-5.0L 20-13 JAGUAR XF V6-3.0L 15-10 JAGUAR XF V8-5.0L 15-10 JAGUAR XFR V8-5.0L 15-13 JAGUAR XFR-S V8-5.0L 19-13 JAGUAR XJ V6-3.0L 19-10 JAGUAR XJ V8-5.0L 17-14 JAGUAR XJR V8-5.0L 19-18 JAGUAR XJR575 V8-5.0L 15-10 JAGUAR XK V8-5.0L 15-10 JAGUAR XKR V8-5.0L 15-12 JAGUAR XKR-S V8-5.0L 25-22 LAND ROVER DEFENDER 110 V8-5.0L 25-24 LAND ROVER DEFENDER 130 V8-5.0L 25-22 LAND ROVER DEFENDER 90 V8-5.0L 20-17 LAND ROVER DISCOVERY V6-3.0L 16-14 LAND ROVER LR4 V6-3.0L 13-10 LAND ROVER LR4 V8-5.0L 19-14 LAND ROVER RANGE ROVER V6-3.0L 22-10 LAND ROVER RANGE ROVER V8-5.0L 19-14 LAND ROVER RANGE ROVER SPORT V6-3.0L 22-10 LAND ROVER RANGE ROVER SPORT V8-5.0L 20-18 LAND ROVER RANGE ROVER VELAR V6-3.0L 2020 LAND ROVER RANGE ROVER VELAR V8-5.0L - Comparison
COMPETITOR NAME COMPETITOR PART # ACDelco PF705G ACDelco PF659A Autopart International 5001-291815 Carquest Premium Filters 84279 Champ P986 ECOGARD X10239 FERGUSON G7279 Ford 8W93-6A692-AC FRAM Drive FD10992 FRAM Extra Guard CH10992 FRAM Tough Guard TG10992 FRAM Ultra Synthetic XG10992 FVP G7279 FVP Filters G7279 Hastings LF661 Jaguar C2D 3670 Land Rover LR011279 LUBER-FINER P986 MAHLE OX774DECO MAHLE OX774D Mann-Filter HU8008Z NAPA Gold Filters 7279 NAPA ProSelect Filters 27279 Parts Master 67279 Purolator L36290 Service Champ WP986 STP S10992 STP S10992XL STP Filters S10992 STP Filters S10992XL Valvoline VO-141 Warner P986 Warner VO-141 Warner Filters P986 Wix 57279 - Installation
- Remove drain plug from housing cap if present and allow oil to drain from cap. Remove housing cap old gaskets/O-Rings and filter element. Discard the used filter element and gaskets/O-Rings in the proper manner.
- Clean filter housing components and apply a light coating of clean engine oil to the new provided gaskets/O-Rings. Install being careful to avoid damage to the gaskets/O-Rings. Avoid twisting of the gaskets/O-Rings.
- Install new filter element into the housing cap. Reinstall the housing cap and tighten to the proper installation torque as listed on the housing cap or in the service manual. Reinstall the housing cap drain if present to the proper installation torque.
