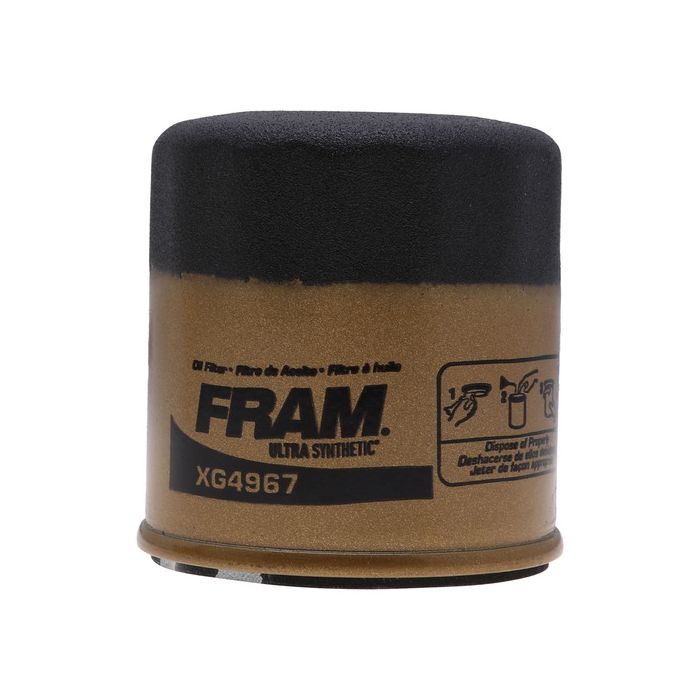

FRAM Ultra Synthetic® Oil Filter
SKU
XG4967
| Height (Inch) | 2.922 |
|---|---|
| Outside Diameter (Inch) | 2.688 |
| Anti-Drain Back Valve | Yes |
| Bypass Relief Valve | Yes |
| Gasket Inside Diameter (Inch) | 2.188 |
| Gasket Outside Diameter (Inch) | 2.438 |
| Gasket Thickness (Inch) | 0.188 |
| Gasket Type | Base |
| Attachment Type | Spin-On |
| Burst Pressure (Pounds per Square Inch) | 350.000 |
| Bypass Relief Valve Setting (Pounds per Square Inch) | 12 |
| Filter Media Material | Synthetic |
| Inlet Type | Threaded |
| Inside Thread Diameter (Inch) | 3/4-16 |
| Thread Size | Standard |
| Torque Nut | No |
Where To Shop
Search
Search
- Description
FRAM Ultra Synthetic® oil filters are engineered for drivers who are looking for ultimate performance and engine protection. Its dual-layered synthetic blend media provides 99%+ filtering efficiency and protects up to 20,000 miles (32,000 kilometers). The silicone anti-drain back valve ensures safe engine startups, extending the life of the oil filter. FRAM Ultra Synthetic is equipped with SureGrip® technology that provides a non-slip surface allowing for easy install and removal.
- Proven protection for up to 20,000 miles (32,000 kilometers)
- SureGrip® technology for easy install and removal
- Silicone anti-drain back valve helps ensure safe engine start up
- Dual-layered synthetic blend media provides 99%+ filtration efficiency*
- Optimized for synthetic motor oil
*FRAM Group testing of average filter efficiency of XG8A, XG3387A and XG4967 under ISO 4548-12 for particles greater than 20 microns.
**FRAM Group mulitpass testing of representative sampling of average filter capacity of comparable competitive retail products based on ISO4548-12 for XG8A and XG3387A.
***Greater than 3X the functional life of Nitrile ADB when tested per SAE HS806 hot oil and Anti-drain-back test.
+ FRAM Group testing per USCAR-36 Low Temperature Leakage test after hot oil, when compared to standard nitrile gasket.
?Not all features are available on every part number in the product line. Check the package for specific features of individual filters.
- Applications
This Item Fits the Following Vehicles:
Year Make Model Engine 1988 CHEVROLET NOVA L4-1.6L 02-98 CHEVROLET PRIZM L4-1.8L 02-00 CHEVROLET TRACKER L4-1.6L 03-99 CHEVROLET TRACKER L4-2.0L 92-88 DAIHATSU CHARADE L3-1.0L 92-89 DAIHATSU CHARADE L4-1.3L 92-90 DAIHATSU ROCKY L4-1.6L 97-89 GEO PRIZM L4-1.6L 97-93 GEO PRIZM L4-1.8L 96-91 INFINITI G20 L4-2.0L 25-21 LEXUS ES250 L4-2.5L 25-19 LEXUS ES300H L4-2.5L 25-24 LEXUS GX550 V6-3.4L 12-10 LEXUS HS250H L4-2.4L 25-19 LEXUS LS500 V6-3.4L 25-22 LEXUS LX600 V6-3.4L 2025 LEXUS LX700H V6-3.4L 25-22 LEXUS NX250 L4-2.5L 25-22 LEXUS NX350 L4-2.4L 25-22 LEXUS NX350H L4-2.5L 25-22 LEXUS NX450H+ L4-2.5L 25-23 LEXUS RX350 L4-2.4L 25-23 LEXUS RX350H L4-2.5L 25-24 LEXUS RX450H+ L4-2.5L 25-23 LEXUS RX500H L4-2.4L 25-24 LEXUS TX350 L4-2.4L 25-24 LEXUS TX500H L4-2.4L 22-19 LEXUS UX200 L4-2.0L 25-19 LEXUS UX250H L4-2.0L 2025 LEXUS UX300H L4-2.0L 11-05 LOTUS ELISE L4-1.8L 10-06 LOTUS EXIGE L4-1.8L 2025 MAZDA CX-50 L4-2.5L 91-84 NISSAN MICRA L4-1.2L 93-91 NISSAN NX L4-2.0L 94-91 NISSAN SENTRA L4-2.0L 08-03 PONTIAC VIBE L4-1.8L 10-09 PONTIAC VIBE L4-2.4L 2014 SCION FR-S H4-2.0L 10-05 SCION TC L4-2.4L 06-04 SCION XA L4-1.5L 06-04 SCION XB L4-1.5L 13-08 SCION XB L4-2.4L 2015 SCION XB L4-2.4L 03-02 SUZUKI AERIO L4-2.0L 07-04 SUZUKI AERIO L4-2.3L 02-99 SUZUKI ESTEEM L4-1.8L 13-09 SUZUKI GRAND VITARA L4-2.4L 13-10 SUZUKI KIZASHI L4-2.4L 95-90 SUZUKI SAMURAI L4-1.3L 1989 SUZUKI SIDEKICK L4-1.3L 98-96 SUZUKI SIDEKICK L4-1.8L 1989 SUZUKI SWIFT L4-1.3L 2001 SUZUKI SWIFT L4-1.3L 2013 SUZUKI SWIFT L4-1.6L 13-07 SUZUKI SX4 L4-2.0L 2012 SUZUKI SX4 CROSSOVER L4-2.0L 02-99 SUZUKI VITARA L4-1.6L 03-99 SUZUKI VITARA L4-2.0L 22-19 TOYOTA AVALON L4-2.5L 91-88 TOYOTA CAMRY L4-2.0L 01-92 TOYOTA CAMRY L4-2.2L 11-02 TOYOTA CAMRY L4-2.4L 25-18 TOYOTA CAMRY L4-2.5L 93-90 TOYOTA CELICA L4-1.6L 05-00 TOYOTA CELICA L4-1.8L 97-94 TOYOTA CELICA L4-1.8L 93-88 TOYOTA CELICA L4-2.0L 99-90 TOYOTA CELICA L4-2.2L 22-18 TOYOTA C-HR L4-2.0L 97-87 TOYOTA COROLLA L4-1.6L 08-93 TOYOTA COROLLA L4-1.8L 25-16 TOYOTA COROLLA L4-1.8L 25-19 TOYOTA COROLLA L4-2.0L 13-09 TOYOTA COROLLA L4-2.4L 25-22 TOYOTA COROLLA CROSS L4-2.0L 18-17 TOYOTA COROLLA IM L4-1.8L 25-23 TOYOTA CROWN L4-2.4L 25-23 TOYOTA CROWN L4-2.5L 2025 TOYOTA CROWN SIGNIA L4-2.5L 05-00 TOYOTA ECHO L4-1.5L 25-23 TOYOTA GR COROLLA L3-1.6L 25-24 TOYOTA GRAND HIGHLANDER L4-2.4L 25-24 TOYOTA GRAND HIGHLANDER L4-2.5L 07-01 TOYOTA HIGHLANDER L4-2.4L 25-23 TOYOTA HIGHLANDER L4-2.4L 25-20 TOYOTA HIGHLANDER L4-2.5L 25-24 TOYOTA LAND CRUISER L4-2.4L 08-03 TOYOTA MATRIX L4-1.8L 13-09 TOYOTA MATRIX L4-2.4L 89-88 TOYOTA MR2 L4-1.6L 95-91 TOYOTA MR2 L4-2.0L 95-91 TOYOTA MR2 L4-2.2L 05-00 TOYOTA MR2 SPYDER L4-1.8L 99-92 TOYOTA PASEO L4-1.5L 09-01 TOYOTA PRIUS L4-1.5L 22-17 TOYOTA PRIUS L4-1.8L 25-23 TOYOTA PRIUS L4-2.0L 22-19 TOYOTA PRIUS AWD-E L4-1.8L 19-12 TOYOTA PRIUS C L4-1.5L 22-17 TOYOTA PRIUS PRIME L4-1.8L 24-23 TOYOTA PRIUS PRIME L4-2.0L 03-96 TOYOTA RAV4 L4-2.0L 08-04 TOYOTA RAV4 L4-2.4L 25-19 TOYOTA RAV4 L4-2.5L 24-21 TOYOTA RAV4 PRIME L4-2.5L 25-23 TOYOTA SEQUOIA V6-3.4L 25-21 TOYOTA SIENNA L4-2.5L 01-99 TOYOTA SOLARA L4-2.2L 08-02 TOYOTA SOLARA L4-2.4L 25-24 TOYOTA TACOMA L4-2.4L 99-87 TOYOTA TERCEL L4-1.5L 25-22 TOYOTA TUNDRA V6-3.4L 24-21 TOYOTA VENZA L4-2.5L 19-06 TOYOTA YARIS L4-1.5L - Comparison
COMPETITOR NAME COMPETITOR PART # ACDelco PF2127 ACDelco PF1233 ACDelco PF2128 ACDelco PF2246 American SportWorks 2-20159 Amsoil EA15K09 Amsoil EAO09 Arctic Cat 3005-948 Ariens 21527000 Ariens 21380000 Ariens 21535800 Autopar - Archived FE254 Autopar - Archived FE308 Autopro 2394 Bad Boy Mowers 063-2090 Bad Boy Mowers 063-8017-00 Baldwin B33 Baldwin B7165 Beck/Arnley 041-0750 Beck/Arnley 041-8066 Big A 92394 Big A 92395 Bosch 72167 Bosch 3311 Bosch D3311 Briggs & Stratton 692513 Briggs & Stratton 499532 Briggs & Stratton 820314 Cam2 C4476 Canada Tire 17-1717-2 Carquest 85394 Carquest R85394 Carquest 85395 Carquest Premium Filters 85394 Casite Filters CF410 Casite Filters CF308 Castrol CAS4967 Cenex CO2840 Certified CPH4967 Champ PH2840 Champ PH3656 Champion COS4967 Champion 41394T Champion Filters 41394T Champion Filters COS4967 Chery 372-1012010 Club Car 1016467 Crosland 2077 Cub Cadet 490-201-0001 Cub Cadet 15200-003-0000 Cushman D368 Cushman 833438 Daihatsu 15601-87204-000 Daihatsu 15601-87107 Daihatsu 15601-87703 Defense Filters DL4967 Delphi FX1006 DENSO 115010-1780 DENSO 115010-16020 DENSO 115010-1291 DENSO 115010-5480 DENSO 150-1000 Deutsch D368 Distance Plus D3325 Distance Plus D3311 Donaldson P502015 Donaldson P502024 Driveworks DW-4476 ECOGARD S5608 Econo-lube L22821 Evergard E4476 FERGUSON F2840 Ferris 5021334X1 Firestone TF4477 Flag C-4967 Fleetguard C-4967 Fleetguard LF3614 FRAM Core COR4967ACC FRAM Drive FD4967 FRAM Force FF4967 FRAM Pro FP4967BP FRAM Synthetic Endurance FE4967 FRAM Titanium FS4967 FRAM Tough Guard TG4967 FRAM Ultra Synthetic XG4967 Fuji Heavy Industrial 248-65801-00 FVP F2840 Geely JX0604 Generac 70185 Generac 070185B Generac 070185BS Generac 070185D Generac 070185 Generac 1323 General Motors 88971573 General Motors 94853643 General Motors 25161880 General Motors 94847351 General Motors 94858995 General Motors 94851874 Girling F6586 Grand Prix PH2840 Grasshopper 100806 Gravely 43594 Grease Monkey GM22821 Group 7 V4476 Group 7 V4477 Harley Davidson 63806-00Y Hastings LF410 Hastings LF410F Hesston 72859 HiFlo HF177 HiFlo HF128 Husqvarna 531 30 73-88 Hustler 772079 IAPCO OF1 Installer Edge AL4967 Installer Edge ML4967 IPD 10131 ITM 11-11514 ITM Autoparts 11-11514 Jacobsen 2701908 Jiffy Lube JL4476 Jiffy Lube HL4967 John Deere AM105555 John Deere AM39687 John Deere ET15499 John Deere AM107423 K&N KN-128 K&N HP-1003 K&N PS-1003 Kawasaki 49065-2076 Kawasaki 45065-2071 Kawasaki 49065-2077 Kawasaki 49065-2068 Kawasaki 49065-2075 Kawasaki 16097-1069 Kawasaki 49065-7004 Kawasaki 49065-2060 Kawasaki 16097-0010 Kawasaki 49065-2081 Kawasaki 49065-2071 Kawasaki 49065-2078 Kawasaki 49065-7010 Kawasaki 49065-0724 Kees 1992581 Kees 7077288YP Kees 7-7355 Kees 7077288 Kees 77288 Koehler 359771 Kohler 359771 Lazorlite L11-1899 Lee LF-2840HP Lee LF-2840 LUBER-FINER PH2840 Magneti Marelli 1AMFL00007 MAHLE OC340 Mann-Filter W68/1 Mann-Filter W68/80 Mann-Filter ML 1009 Master Parts PH-2840 Mazda CWA1-14-302 Mercury 35-8222626Q15 Mercury Q15 Mercury 35-822626T7 Mercury T653945 Mercury Marine 35-8222626Q15 Mercury Marine T653945 MicroGard MGL4967 MicroGard MGL10332 Mighty Distributing System M4477 Mighty Distributing System T4477SP Mileguard MO4967 Mobil MO4477 Mobil 1 M1-103A Mobil 1 M1-103 Mopar FE00308 MotoMaster MPH4967 Motorcraft FL-836 MTD Products 15200-003-0000 NAPA 1394 NAPA 1065 NAPA 1395 NAPA Gold Filters 1394 NAPA Platinum Filters 41394 NAPA Silver Filters 21394 OE+ OF-440 OMC 5033539 OMC 434839 OMC 778886 Onan 122-0737-02 Onan 122-0737 One Performance 122-0737 One Performance 122-0737-02 Parts Master 61394X Parts Master WL610332X Parts Master 61396 Parts Master 61394 Parts Plus PH2840 Pennzoil PZ-197 Pennzoil PZ-39 Pentius PLB4967 Performax PO-39 Phillips 66 PO1394 Power Flo SL14477 Premium Guard PG4476 Prime Guard Filters - Archived POF4476 Professionals Choice - Archived Q4476 Pro-Gauge PGO-4476 Promotive PH4476 Pro-Tec 154 Purolator L14476 Purolator PSL14476 Purolator BOSS PBL14476 Purolator PureONE PL22821 Purolator PureONE PL14476 Purolator TECH TL14476 PurolatorONE PL22821 PurolatorONE PL14476 PurolatorONE PL11411 Quaker State QS4967 Robin 261-65902-AO Robin 248-65801-00 Rockhill 61394 Rotary Lifts 6600 Security Filters SO2840 Service Pro M4476 Shell - Archived SH525 Sierra 18-7906 Sierra 18-7897 Sierra 18-7906-1 Sierra 18-7916 Silverline 21394 Snapper 7-7355 Snapper 77288 Snapper 7077288YP Snapper 7077288 Snapper 5021334X1 Snapper 1992581 Stens 054-067 Stens 120-634 STP S2878XL STP S4967ML STP S4967XL STP Filters S2878 STP Filters S4967ML STP Filters S2878XL STP Filters S4967 STP Filters S4967XL Super Tech Filters ST4967 SUPERTECH ST4967 Suzuki 16510-82703 TCI Automotive C0120-00013 Tecumseh/Lauson 36262 Tokyo-Roki LFS706 Toro 127-9222 Toro KW10586 Toro 108-3842 Toro KW10761 Toro NN10684 Toro 136-7848 Toro 120-4276 Tough Guard TG4967 Toyota 90080-91210 Toyota C0120-00013 Toyota 90915-YZZF2 Toyota 90915-YZZM1 Toyota 15600-16020 Toyota 90915-10001 Toyota 90915-10009 Toyota 90915-YZZF8 Toyota 90080-91034 Toyota 90915-03001 Toyota 08922-02002 Toyota 90915-TA002 Toyota 90915-10003 Toyota 90915-YZZN1 Toyota 90915-10004 Toyota 90080-91058 Toyota 08922-02005 Toyota 90915-YZZA2 Toyota 90915-TA001 Trust PH2840 Unocal 76 PF2874 Valucraft V4967 Valvoline VO-40BP Valvoline VO-40 Vera 10-01618 VIPER 4967 Wako LO-430K Warner Filters PH2840 Web W4967 Web W4386 Wix 51395 Wix 51394XP Wix WL10332 Wix 51394 Woods 72859 Yamaha YA2-48658-01-00 Yamaha YA2-48658-01 - Installation
- Use proper protective gear. Used motor oil should not come in contact with bare skin. Engine oil may be hot.
- Place a drain pan under the oil filter and unscrew oil filter.
- Clean mounting base making sure the O-ring from the old filter is not stuck to the filter mount.
- Apply film of clean oil to filter gasket. Do not use grease.
- Screw new filter on until gasket reaches base contact. Then tighten according to instructions on filter using tightening guide markers.
- Check owner’s manual for correct oil specification viscosity and amount.
- Add oil to “full” on dipstick. Idle engine for 5 minutes and check for leaks.
- Shut off engine and recheck oil level after 5 minutes and top off as necessary.
