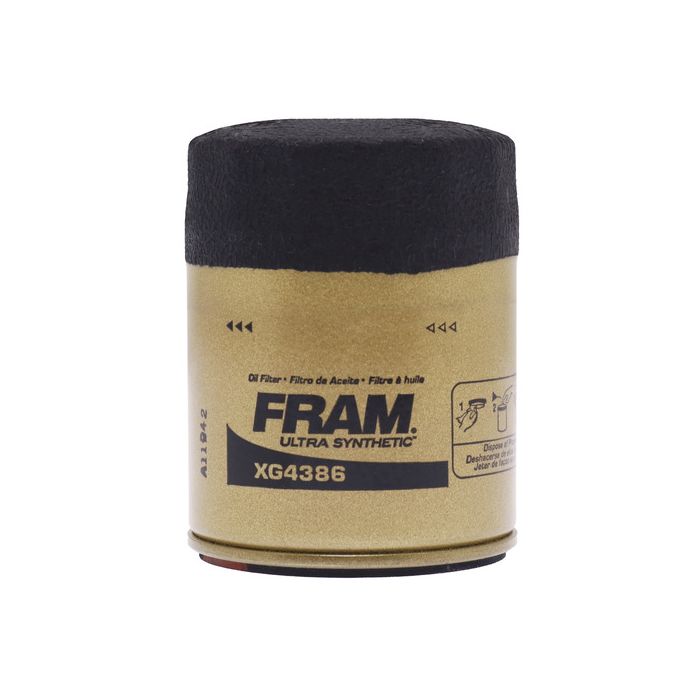

FRAM Ultra Synthetic® Oil Filter
SKU
XG4386
| Height (Inch) | 3.469 |
|---|---|
| Outside Diameter (Inch) | 2.688 |
| Anti-Drain Back Valve | Yes |
| Bypass Relief Valve | Yes |
| Gasket Inside Diameter (Inch) | 2.250 |
| Gasket Outside Diameter (Inch) | 2.500 |
| Gasket Thickness (Inch) | 0.281 |
| Gasket Type | Base |
| Attachment Type | Spin-On |
| Burst Pressure (Pounds per Square Inch) | 350.000 |
| Bypass Relief Valve Setting (Pounds per Square Inch) | 14 |
| Filter Media Material | Synthetic |
| Inlet Type | Threaded |
| Inside Thread Diameter (Inch) | 3/4-16 |
| Thread Size | Standard |
| Torque Nut | No |
Where To Shop
Search
Search
- Description
FRAM Ultra Synthetic® oil filters are engineered for drivers who are looking for ultimate performance and engine protection. Its dual-layered synthetic blend media provides 99%+ filtering efficiency and protects up to 20,000 miles (32,000 kilometers). The silicone anti-drain back valve ensures safe engine startups, extending the life of the oil filter. FRAM Ultra Synthetic is equipped with SureGrip® technology that provides a non-slip surface allowing for easy install and removal.
- Proven protection for up to 20,000 miles (32,000 kilometers)
- SureGrip® technology for easy install and removal
- Silicone anti-drain back valve helps ensure safe engine start up
- Dual-layered synthetic blend media provides 99%+ filtration efficiency*
- Optimized for synthetic motor oil
*FRAM Group testing of average filter efficiency of XG8A, XG3387A and XG4967 under ISO 4548-12 for particles greater than 20 microns.
**FRAM Group mulitpass testing of representative sampling of average filter capacity of comparable competitive retail products based on ISO4548-12 for XG8A and XG3387A.
***Greater than 3X the functional life of Nitrile ADB when tested per SAE HS806 hot oil and Anti-drain-back test.
+ FRAM Group testing per USCAR-36 Low Temperature Leakage test after hot oil, when compared to standard nitrile gasket.
?Not all features are available on every part number in the product line. Check the package for specific features of individual filters.
- Applications
This Item Fits the Following Vehicles:
Year Make Model Engine 1988 CHEVROLET NOVA L4-1.6L 02-00 CHEVROLET TRACKER L4-1.6L 03-99 CHEVROLET TRACKER L4-2.0L 1988 DAIHATSU CHARADE L3-1.0L 92-90 GEO PRIZM L4-1.6L 96-91 INFINITI G20 L4-2.0L 25-24 LEXUS GX550 V6-3.4L 25-19 LEXUS LS500 V6-3.4L 25-22 LEXUS LX600 V6-3.4L 2025 LEXUS LX700H V6-3.4L 25-23 LEXUS RX350H L4-2.5L 25-23 LEXUS RX500H L4-2.4L 93-91 NISSAN NX L4-2.0L 94-91 NISSAN SENTRA L4-2.0L 06-05 PONTIAC VIBE L4-1.8L 10-09 PONTIAC VIBE L4-2.4L 2014 SCION FR-S H4-2.0L 10-09 SCION TC L4-2.4L 13-08 SCION XB L4-2.4L 2015 SCION XB L4-2.4L 03-02 SUZUKI AERIO L4-2.0L 07-04 SUZUKI AERIO L4-2.3L 02-99 SUZUKI ESTEEM L4-1.8L 13-11 SUZUKI GRAND VITARA L4-2.4L 13-10 SUZUKI KIZASHI L4-2.4L 95-90 SUZUKI SAMURAI L4-1.3L 1989 SUZUKI SIDEKICK L4-1.3L 98-96 SUZUKI SIDEKICK L4-1.8L 1989 SUZUKI SWIFT L4-1.3L 2001 SUZUKI SWIFT L4-1.3L 13-07 SUZUKI SX4 L4-2.0L 2012 SUZUKI SX4 CROSSOVER L4-2.0L 02-99 SUZUKI VITARA L4-1.6L 03-99 SUZUKI VITARA L4-2.0L 11-02 TOYOTA CAMRY L4-2.4L 01-00 TOYOTA CELICA L4-1.8L 93-90 TOYOTA CELICA L4-2.0L 91-88 TOYOTA COROLLA L4-1.6L 13-09 TOYOTA COROLLA L4-2.4L 07-02 TOYOTA HIGHLANDER L4-2.4L 13-09 TOYOTA MATRIX L4-2.4L 89-88 TOYOTA MR2 L4-1.6L 95-91 TOYOTA MR2 L4-2.0L 08-04 TOYOTA RAV4 L4-2.4L 25-23 TOYOTA SEQUOIA V6-3.4L 08-02 TOYOTA SOLARA L4-2.4L 25-22 TOYOTA TUNDRA V6-3.4L - Comparison
COMPETITOR NAME COMPETITOR PART # ACDelco PF2052 ACDelco PF2228 ACDelco PF53CL ACDelco PF1238 ACDelco PF2246 ACDelco 88969580 ACDelco PF53FCL ACDelco PF53 ACDelco PF1234 ACDelco PF1233 Amsoil EAO10 Atlas M-40 Auto Extra 61851396 Baldwin B37 Baldwin B7119 Baldwin B1406 Beck/Arnley 041-8066 Beck/Arnley 041-8065 Beck/Arnley 041-8079 Beck/Arnley 041-8102 Big A 92396 Bosch 3311 Bosch 72176 Bosch D3311 Bosch D3325 Bosch 72166 Cam2 C4477 Canada Tire 17-1724-4 Car Care OF4536 Car Care IOF4386 Carquest 85396 Carquest R84145 Carquest 84145 Carquest B4477 Carquest 84530 Casite Filters CF413 Castrol CAS4967 Cenex CO2841 Cenex CO2823 Certified CPH4386 Champ PH2840XL Champ PH2840 Champion COS4386 Champion 47145T Champion Filters COS4386 Champion Filters 47145T Citgo Petroleum C4477 Crosland 2100 Daihatsu L14477 Daihatsu 15601-87705-000 Defense Filters DL4386 DENSO 150-1001 DENSO 150-1015 DENSO 115010-1660 DENSO 115010-1390 Deutsch D372 Deutsch D369 Deutz-allis 72101498 Donaldson P502019 Donaldson P551255 Econo-lube L14477 Evergard E4477 FERGUSON F2840 Filters Inc OF4386 Firestone TF4477 Flag C-3614 Flag C-4967 Fleetguard MK13083 Fleetguard LF3615 FRAM Core COR4967ACC FRAM Drive FD4386 FRAM Force FF4386 FRAM Pro FP4967BP FRAM Titanium FS4386 FRAM Tough Guard TG4386 FRAM Ultra Synthetic XG4386 FVP F2840 Generac 070185E Generac 070185ES Generac 070185F General Motors 94845246 General Motors 88969580 General Motors 91176161 General Motors 94848478 General Motors 94851858 General Motors 9484246 General Motors 91173772 General Motors 89060498 General Motors 89060466 Girling F6588 Girling F6622 Girling F6613 Girling F6603 Goodyear L4477 Grand Prix PH2823 Grand Prix PH2841 Grease Monkey GM14477 Grease Monkey GM4477 Group 7 V4476 Hastings LF308F Hastings LF413F Hastings LF308 Hastings LF413 Havoline TFC-525 IAPCO OF4 IAPCO OF22 Installer Edge AL4386 Installer Edge ML4386 IPD 10129 ITM 11-11518 ITM Autoparts 11-11518 Jiffy Lube JL4477 Jiffy Lube HL4386 Jiffy Lube L14477 K&N PS-1003 K&N HP-1003 Kendall K33 Kralinator L4 Lazorlite L11-1929 Lazorlite L11-1910 Lee LF-2841 Lee LF-2841HP LUBER-FINER PH2840 Magneti Marelli 1AMFL00007 MAHLE OC217 MAHLE OC218 MAHLE OC217/6 MAHLE OC1042 Mann-Filter W610/80 Mann-Filter W610/83 Mann-Filter ML 1017 Master Parts PH-2841 MicroGard MGL57145 MicroGard MGL4967 MicroGard MGL57530 Mileguard MO4967 Mileguard MO4386 Mobil MO4477 Mobil 1 M1-103A Mobil 1 M1-103 MotoMaster MPH4386 NAPA 7145 NAPA 7530 NAPA 1396 NAPA Gold Filters 7145 NAPA Platinum Filters 47145 NAPA ProSelect Filters 27530 NAPA ProSelect Filters 27145 Nissan 15208-53J00 OE+ OF-470 OE+ OF-460 OMC 5035703 OMC 5033919 OMC 778887 OMC 778888 Parts Master 67530 Parts Master 67145 Parts Master 67145BP Parts Plus PH2840 Pennzoil HPZ-38 Pennzoil PZ38 Pennzoil PZ38BP Pennzoil PZ-38 Pentius PLB4386 Performax PO-38 Pit Stop PSL33 Power Flo SL14477 Power Flo SL10241 Professionals Choice - Archived Q4477 Pro-Gauge PGO-4477 Promotive SL14476 Pronto PO-4386 Pronto PO-4476 PureZone 8-57530 PureZone 8-57145 Purolator L14477 Purolator PSL14477 Purolator BOSS PBL14476 Purolator BOSS PBL14477 Purolator PureONE PL22821 Purolator PureONE PL14476 Purolator TECH TL14477 PurolatorONE PL22821 PurolatorONE PL14476 PurolatorONE PL14477 Quaker State QS4386 Quaker State QS4386BLK Security Filters SO2841 Security Filters SO2823 Service Champ OF4477 Service Pro M4477 Shell - Archived SH525 Sierra 18-7896 Sierra 18-7895 Silverline 21396 STP S4967 STP Filters S4967 Sunoco O-34 Super Tech Filters ST4967 Super Tech Filters ST4386 SUPERTECH ST4967 SUPERTECH ST4386 Suzuki 16510-61A20-MHL Suzuki 16510-61A02 Suzuki 16510-61A00 Suzuki 16510-61A20 Suzuki 16510-61A30 Suzuki 16510-82703 Suzuki 16510-61A31 Suzuki 16510-93J00 Suzuki 16510-61A21 Suzuki 16510-61AV1 Suzuki 16510-61A01 TCI Automotive C0120-00014 Tokyo-Roki LFS708 Tough Guard TG4386 Toyota 90915-TA002 Toyota 90915-YZZF1 Toyota 90915-YZZE2 Toyota 15600-16010 Toyota 90915-03004 Toyota 90915-10002 Toyota 90915-10004 Toyota 90915-YZZA2 Toyota 08922-02001 Toyota 90915-10010 Trust PH2841 Unocal 76 PF2875 Valvoline VO-41 Valvoline VO-40BP Valvoline VO-40 VIPER 4386 Volvo Penta 861473-7 Volvo Penta 861473 Warner Filters PH2841 Warner Filters PH2840 Warner Filters PH2823 Web W4386 Wix 51389 Wix 57145 Wix 57145XP Wix 57530 Wix 51396 - Installation
- Use proper protective gear. Used motor oil should not come in contact with bare skin. Engine oil may be hot.
- Place a drain pan under the oil filter and unscrew oil filter.
- Clean mounting base making sure the O-ring from the old filter is not stuck to the filter mount.
- Apply film of clean oil to filter gasket. Do not use grease.
- Screw new filter on until gasket reaches base contact. Then tighten according to instructions on filter using tightening guide markers.
- Check owner’s manual for correct oil specification viscosity and amount.
- Add oil to “full” on dipstick. Idle engine for 5 minutes and check for leaks.
- Shut off engine and recheck oil level after 5 minutes and top off as necessary.
