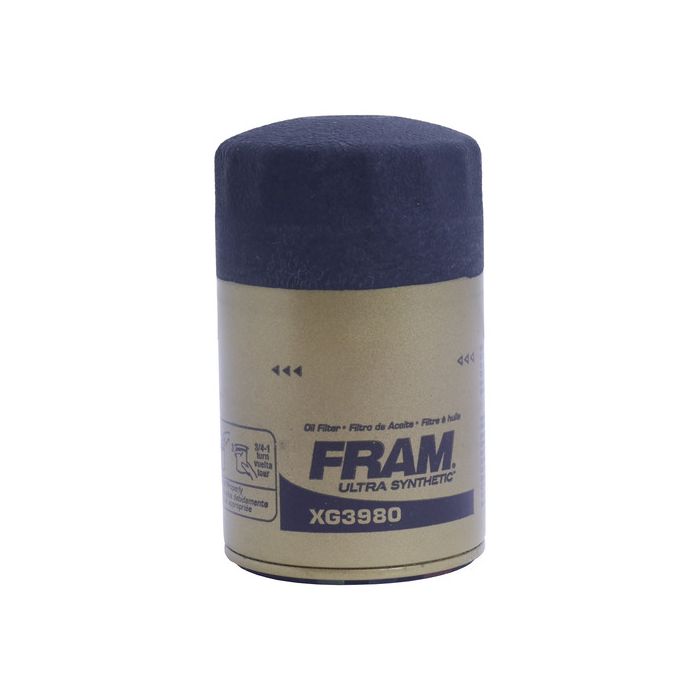

FRAM Ultra Synthetic® Oil Filter
Oil Filter
SKU
XG3980
| Performance | Ultimate |
|---|---|
| Length | 3.06 |
| Width | 3.06 |
| Filter Type | Spin-On Canister |
| Grade Type | Premium |
| Housing Color | Gold |
| New Or Remanufactured | New |
| Reusable | No |
| Replaceable Filter | Yes |
| Meets Or Exceeds Original Equipment Manufacture Specifications | Yes |
| Height | 4.938 (in.) |
| Outside Diameter | 2.984 (in.) |
| Anti-drain Back Valve | Yes |
| Bypass Relief Valve | No |
| Gasket Inside Diameter | 2.469 IN |
| Gasket Outside Diameter | 2.750 IN |
| Gasket Thickness | 0.188 IN |
| Gasket Type | Base |
| Attachment Type | Spin-On |
| Burst Pressure | 310.000 PS |
| Filter Media Material | Synthetic |
| Inlet Type | Threaded |
| Inside Thread Diameter | M18x1.5 MM |
| Non Slip Grip | Yes |
| Thread Size | Metric |
| Torque Nut | No |
- Description
FRAM Ultra Synthetic® oil filters are engineered for drivers who are looking for ultimate performance and engine protection. Its dual-layered synthetic blend media provides 99%+ filtering efficiency and protects up to 20,000 miles (32,000 kilometers). The silicone anti-drain back valve ensures safe engine startups, extending the life of the oil filter. FRAM Ultra Synthetic is equipped with SureGrip® technology that provides a non-slip surface allowing for easy install and removal.
- Proven protection for up to 20,000 miles (32,000 kilometers)
- SureGrip® technology for easy install and removal
- Silicone anti-drain back valve helps ensure safe engine start up
- Dual-layered synthetic blend media provides 99%+ filtration efficiency*
- Optimized for synthetic motor oil
*FRAM Group testing of average filter efficiency of XG8A, XG3387A and XG4967 under ISO 4548-12 for particles greater than 20 microns.
**FRAM Group mulitpass testing of representative sampling of average filter capacity of comparable competitive retail products based on ISO4548-12 for XG8A and XG3387A.
***Greater than 3X the functional life of Nitrile ADB when tested per SAE HS806 hot oil and Anti-drain-back test.
+ FRAM Group testing per USCAR-36 Low Temperature Leakage test after hot oil, when compared to standard nitrile gasket.
?Not all features are available on every part number in the product line. Check the package for specific features of individual filters. - Applications
This Item Fits the Following Vehicles:
Year Make Model Engine 1980 Buick Skylark 2.8L 1980 Chevrolet Citation 2.8L 1980 Oldsmobile Omega 2.8L 1980 Pontiac Phoenix 2.8L 1981 Buick Skylark 2.8L 1981 Checker Marathon 3.8L 1981 Chevrolet Camaro 3.8L 1981 Chevrolet Camaro 3.8L 1981 Chevrolet Caprice 3.8L 1981 Chevrolet Citation 2.8L 1981 Chevrolet El Camino 3.8L 1981 Chevrolet Impala 3.8L 1981 Chevrolet Malibu 3.8L 1981 Chevrolet Malibu 3.8L 1981 Chevrolet Monte Carlo 3.8L 1981 GMC Caballero 3.8L 1981 GMC Caballero 3.8L 1981 Oldsmobile Omega 2.8L 1981 Pontiac Grand LeMans 3.8L 1981 Pontiac Grand LeMans 3.8L 1981 Pontiac Phoenix 2.8L 1982 Buick Century 2.8L 1982 Buick Century 4.3L 1982 Buick Regal 4.3L 1982 Buick Skyhawk 1.8L 1982 Buick Skylark 2.8L 1982 Cadillac Cimarron 1.8L 1982 Checker Marathon 3.8L 1982 Chevrolet Camaro 2.8L 1982 Chevrolet Caprice 3.8L 1982 Chevrolet Cavalier 1.8L 1982 Chevrolet Celebrity 2.8L 1982 Chevrolet Celebrity 4.3L 1982 Chevrolet Citation 2.8L 1982 Chevrolet El Camino 3.8L 1982 Chevrolet Impala 3.8L 1982 Chevrolet Malibu 3.8L 1982 Chevrolet Malibu 3.8L 1982 Chevrolet Malibu 4.3L 1982 Chevrolet Monte Carlo 3.8L 1982 Chevrolet Monte Carlo 4.3L 1982 Chevrolet S10 2.8L 1982 GMC Caballero 3.8L 1982 GMC Caballero 3.8L 1982 GMC S15 2.8L 1982 Oldsmobile Cutlass Calais 4.3L 1982 Oldsmobile Cutlass Ciera 2.8L 1982 Oldsmobile Cutlass Ciera 4.3L 1982 Oldsmobile Cutlass Supreme 4.3L 1982 Oldsmobile Firenza 1.8L 1982 Oldsmobile Firenza 1.8L 1982 Oldsmobile Omega 2.8L 1982 Pontiac 6000 2.8L 1982 Pontiac 6000 4.3L 1982 Pontiac Firebird 2.8L 1982 Pontiac J2000 1.8L 1982 Pontiac Phoenix 2.8L 1983 Buick Century 2.8L 1983 Buick Century 4.3L 1983 Buick Regal 4.3L 1983 Buick Skyhawk 2.0L 1983 Buick Skylark 2.8L 1983 Cadillac Cimarron 2.0L 1983 Chevrolet Cavalier 2.0L 1983 Chevrolet Celebrity 2.8L 1983 Chevrolet Celebrity 4.3L 1983 Chevrolet Citation 2.8L 1983 Chevrolet Impala 3.8L 1983 Chevrolet Malibu 3.8L 1983 Chevrolet Malibu 3.8L 1983 Chevrolet Malibu 4.3L 1983 Chevrolet Monte Carlo 3.8L 1983 Chevrolet Monte Carlo 4.3L 1983 Chevrolet S10 2.8L 1983 Chevrolet S10 Blazer 2.8L 1983 GMC Caballero 3.8L 1983 GMC Caballero 3.8L 1983 GMC S15 2.8L 1983 GMC S15 Jimmy 2.8L 1983 Oldsmobile Cutlass Calais 4.3L 1983 Oldsmobile Cutlass Ciera 2.8L 1983 Oldsmobile Cutlass Ciera 4.3L 1983 Oldsmobile Cutlass Supreme 4.3L 1983 Oldsmobile Firenza 2.0L 1983 Oldsmobile Omega 2.8L 1983 Pontiac 6000 2.8L 1983 Pontiac 6000 4.3L 1983 Pontiac J2000 2.0L 1983 Pontiac Phoenix 2.8L 1984 Buick Century 2.8L 1984 Buick Century 4.3L 1984 Buick Regal 4.3L 1984 Buick Skyhawk 2.0L 1984 Cadillac Cimarron 2.0L 1984 Chevrolet Cavalier 2.0L 1984 Chevrolet Celebrity 2.8L 1984 Chevrolet Celebrity 4.3L 1984 Chevrolet Citation 2.8L 1984 Chevrolet Impala 3.8L 1984 Chevrolet Monte Carlo 3.8L 1984 Chevrolet S10 2.8L 1984 Chevrolet S10 Blazer 2.8L 1984 GMC Caballero 3.8L 1984 GMC Caballero 3.8L 1984 GMC S15 2.8L 1984 GMC S15 Jimmy 2.8L 1984 Oldsmobile Cutlass Calais 4.3L 1984 Oldsmobile Cutlass Ciera 4.3L 1984 Oldsmobile Cutlass Supreme 4.3L 1984 Oldsmobile Firenza 2.0L 1984 Oldsmobile Omega 2.8L 1984 Pontiac 6000 4.3L 1984 Pontiac Fiero 2.5L 1984 Pontiac J2000 Sunbird 2.0L 1985 Buick Century 4.3L 1985 Buick Electra 4.3L 1985 Buick Regal 4.3L 1985 Buick Skyhawk 2.0L 1985 Cadillac Cimarron 2.0L 1985 Cadillac Commercial Chassis 4.3L 1985 Cadillac DeVille 4.3L 1985 Cadillac Fleetwood 4.3L 1985 Chevrolet Astro 4.3L 1985 Chevrolet C10 4.3L 1985 Chevrolet C20 4.3L 1985 Chevrolet Caprice 4.3L 1985 Chevrolet Cavalier 2.0L 1985 Chevrolet Celebrity 4.3L 1985 Chevrolet Citation 2.8L 1985 Chevrolet El Camino 4.3L 1985 Chevrolet G10 4.3L 1985 Chevrolet G20 4.3L 1985 Chevrolet G30 4.3L 1985 Chevrolet Impala 4.3L 1985 Chevrolet K10 4.3L 1985 Chevrolet K20 4.3L 1985 Chevrolet Monte Carlo 4.3L 1985 Chevrolet P40 4.3L 1985 Chevrolet S10 2.8L 1985 Chevrolet S10 Blazer 2.8L 1985 GMC C1500 4.3L 1985 GMC C2500 4.3L 1985 GMC Caballero 4.3L 1985 GMC G1500 4.3L 1985 GMC G2500 4.3L 1985 GMC G3500 4.3L 1985 GMC K1500 4.3L 1985 GMC K2500 4.3L 1985 GMC S15 2.8L 1985 GMC S15 Jimmy 2.8L 1985 GMC Safari 4.3L 1985 Oldsmobile 98 4.3L 1985 Oldsmobile Cutlass Ciera 4.3L 1985 Oldsmobile Firenza 2.0L 1985 Pontiac 6000 4.3L 1985 Pontiac Fiero 2.8L 1985 Pontiac J2000 Sunbird 2.0L 1985 Pontiac Parisienne 4.3L 1986 Buick Skyhawk 2.0L 1986 Cadillac Cimarron 2.0L 1986 Chevrolet Astro 4.3L 1986 Chevrolet C10 4.3L 1986 Chevrolet C20 4.3L 1986 Chevrolet Caprice 4.3L 1986 Chevrolet Cavalier 2.0L 1986 Chevrolet Citation 2.8L 1986 Chevrolet El Camino 4.3L 1986 Chevrolet G10 4.3L 1986 Chevrolet G20 4.3L 1986 Chevrolet G30 4.3L 1986 Chevrolet K10 4.3L 1986 Chevrolet Monte Carlo 4.3L 1986 Chevrolet P40 4.3L 1986 Chevrolet S10 2.8L 1986 Chevrolet S10 Blazer 2.8L 1986 GMC C1500 4.3L 1986 GMC C2500 4.3L 1986 GMC Caballero 4.3L 1986 GMC G1500 4.3L 1986 GMC G2500 4.3L 1986 GMC G3500 4.3L 1986 GMC K1500 4.3L 1986 GMC S15 2.8L 1986 GMC S15 Jimmy 2.8L 1986 GMC Safari 4.3L 1986 Oldsmobile Firenza 2.0L 1986 Pontiac Bonneville 4.3L 1986 Pontiac Fiero 2.8L 1986 Pontiac Grand Prix 4.3L 1986 Pontiac Parisienne 4.3L 1986 Pontiac Sunbird 2.0L 1987 Buick Century 2.8L 1987 Buick Skyhawk 2.0L 1987 Chevrolet Astro 4.3L 1987 Chevrolet Beretta 2.0L 1987 Chevrolet Caprice 4.3L 1987 Chevrolet Cavalier 2.0L 1987 Chevrolet Corsica 2.0L 1987 Chevrolet El Camino 4.3L 1987 Chevrolet G10 4.3L 1987 Chevrolet G20 4.3L 1987 Chevrolet G30 4.3L 1987 Chevrolet Monte Carlo 4.3L 1987 Chevrolet P40 4.3L 1987 Chevrolet R10 4.3L 1987 Chevrolet R20 4.3L 1987 Chevrolet S10 2.8L 1987 Chevrolet S10 Blazer 2.8L 1987 Chevrolet V10 4.3L 1987 GMC Caballero 4.3L 1987 GMC G1500 4.3L 1987 GMC G2500 4.3L 1987 GMC G3500 4.3L 1987 GMC P4500 4.3L 1987 GMC R1500 4.3L 1987 GMC R2500 4.3L 1987 GMC S15 2.8L 1987 GMC S15 Jimmy 2.8L 1987 GMC Safari 4.3L 1987 GMC V1500 4.3L 1987 Oldsmobile Firenza 2.0L 1987 Pontiac 6000 2.8L 1987 Pontiac Grand Prix 4.3L 1987 Pontiac Tempest 2.0L 1988 Buick Century 2.8L 1988 Buick Regal 2.8L 1988 Buick Skyhawk 2.0L 1988 Chevrolet Astro 4.3L 1988 Chevrolet Beretta 2.0L 1988 Chevrolet C1500 4.3L 1988 Chevrolet C2500 4.3L 1988 Chevrolet Caprice 4.3L 1988 Chevrolet Cavalier 2.0L 1988 Chevrolet Corsica 2.0L 1988 Chevrolet G10 4.3L 1988 Chevrolet G20 4.3L 1988 Chevrolet G30 4.3L 1988 Chevrolet K1500 5.0L 1988 Chevrolet K1500 5.7L 1988 Chevrolet K1500 4.3L 1988 Chevrolet K2500 5.0L 1988 Chevrolet K2500 5.7L 1988 Chevrolet K2500 4.3L 1988 Chevrolet K3500 5.7L 1988 Chevrolet Monte Carlo 4.3L 1988 Chevrolet P40 4.3L 1988 Chevrolet R20 4.3L 1988 Chevrolet S10 2.8L 1988 Chevrolet S10 4.3L 1988 Chevrolet S10 Blazer 2.8L 1988 Chevrolet S10 Blazer 4.3L 1988 GMC C1500 4.3L 1988 GMC C2500 4.3L 1988 GMC G1500 4.3L 1988 GMC G2500 4.3L 1988 GMC G3500 4.3L 1988 GMC K1500 5.0L 1988 GMC K1500 5.7L 1988 GMC K1500 4.3L 1988 GMC K2500 5.0L 1988 GMC K2500 5.7L 1988 GMC K2500 4.3L 1988 GMC K3500 5.7L 1988 GMC P4500 4.3L 1988 GMC S15 2.8L 1988 GMC S15 4.3L 1988 GMC S15 Jimmy 2.8L 1988 GMC S15 Jimmy 4.3L 1988 GMC Safari 4.3L 1988 Oldsmobile Cutlass 3.1L 1988 Oldsmobile Firenza 2.0L 1988 Pontiac 6000 2.8L 1988 Pontiac 6000 3.1L 1988 Pontiac Grand Prix 2.8L 1988 Pontiac Tempest 2.0L 1989 Buick Regal 2.8L 1989 Buick Regal 3.1L 1989 Buick Skyhawk 2.0L 1989 Chevrolet Astro 4.3L 1989 Chevrolet Beretta 2.0L 1989 Chevrolet C1500 4.3L 1989 Chevrolet C2500 4.3L 1989 Chevrolet Caprice 4.3L 1989 Chevrolet Cavalier 2.0L 1989 Chevrolet Corsica 2.0L 1989 Chevrolet G10 4.3L 1989 Chevrolet G20 4.3L 1989 Chevrolet G30 4.3L 1989 Chevrolet K1500 5.0L 1989 Chevrolet K1500 5.7L 1989 Chevrolet K1500 4.3L 1989 Chevrolet K2500 5.0L 1989 Chevrolet K2500 5.7L 1989 Chevrolet K2500 4.3L 1989 Chevrolet K3500 5.7L 1989 Chevrolet P40 4.3L 1989 Chevrolet S10 2.8L 1989 Chevrolet S10 4.3L 1989 Chevrolet S10 Blazer 2.8L 1989 Chevrolet S10 Blazer 4.3L 1989 GMC C1500 4.3L 1989 GMC C2500 4.3L 1989 GMC G1500 4.3L 1989 GMC G2500 4.3L 1989 GMC G3500 4.3L 1989 GMC K1500 5.0L 1989 GMC K1500 5.7L 1989 GMC K1500 4.3L 1989 GMC K2500 5.0L 1989 GMC K2500 5.7L 1989 GMC K2500 4.3L 1989 GMC K3500 5.7L 1989 GMC P4500 4.3L 1989 GMC S15 2.8L 1989 GMC S15 4.3L 1989 GMC S15 Jimmy 2.8L 1989 GMC S15 Jimmy 4.3L 1989 GMC Safari 4.3L 1989 Oldsmobile Cutlass 3.1L 1989 Oldsmobile Cutlass Supreme 3.1L 1989 Pontiac 6000 3.1L 1989 Pontiac Grand Prix 2.8L 1989 Pontiac Grand Prix 3.1L 1989 Pontiac Tempest 2.0L 1990 Buick Regal 3.1L 1990 Chevrolet Astro 4.3L 1990 Chevrolet Beretta 2.2L 1990 Chevrolet C1500 4.3L 1990 Chevrolet C2500 4.3L 1990 Chevrolet Camaro 3.1L 1990 Chevrolet Caprice 4.3L 1990 Chevrolet Cavalier 2.2L 1990 Chevrolet Celebrity 3.1L 1990 Chevrolet Corsica 2.2L 1990 Chevrolet G10 4.3L 1990 Chevrolet G20 4.3L 1990 Chevrolet G30 4.3L 1990 Chevrolet K1500 5.0L 1990 Chevrolet K1500 5.7L 1990 Chevrolet K1500 4.3L 1990 Chevrolet K2500 5.0L 1990 Chevrolet K2500 5.7L 1990 Chevrolet K2500 4.3L 1990 Chevrolet K3500 5.7L 1990 Chevrolet Lumina 3.1L 1990 Chevrolet Lumina APV 3.1L 1990 Chevrolet P30 4.3L 1990 Chevrolet P40 4.3L 1990 Chevrolet S10 2.8L 1990 Chevrolet S10 4.3L 1990 Chevrolet S10 Blazer 4.3L 1990 GMC C1500 4.3L 1990 GMC C2500 4.3L 1990 GMC G1500 4.3L 1990 GMC G2500 4.3L 1990 GMC G3500 4.3L 1990 GMC K1500 5.0L 1990 GMC K1500 5.7L 1990 GMC K1500 4.3L 1990 GMC K2500 5.0L 1990 GMC K2500 5.7L 1990 GMC K2500 4.3L 1990 GMC K3500 5.7L 1990 GMC P3500 4.3L 1990 GMC P4500 4.3L 1990 GMC S15 2.8L 1990 GMC S15 4.3L 1990 GMC S15 Jimmy 4.3L 1990 GMC Safari 4.3L 1990 Oldsmobile Cutlass 3.1L 1990 Oldsmobile Cutlass Supreme 3.1L 1990 Oldsmobile Silhouette 3.1L 1990 Pontiac 6000 3.1L 1990 Pontiac Firebird 3.1L 1990 Pontiac Grand Prix 3.1L 1990 Pontiac Tempest 2.2L 1990 Pontiac Tempest 3.1L 1990 Pontiac Trans Sport 3.1L 1991 Buick Regal 3.1L 1991 Chevrolet Astro 4.3L 1991 Chevrolet Beretta 2.2L 1991 Chevrolet Blazer 5.7L 1991 Chevrolet C1500 4.3L 1991 Chevrolet C2500 4.3L 1991 Chevrolet Camaro 3.1L 1991 Chevrolet Cavalier 2.2L 1991 Chevrolet Corsica 2.2L 1991 Chevrolet G10 4.3L 1991 Chevrolet G20 4.3L 1991 Chevrolet G30 4.3L 1991 Chevrolet K1500 5.0L 1991 Chevrolet K1500 5.7L 1991 Chevrolet K1500 4.3L 1991 Chevrolet K2500 5.0L 1991 Chevrolet K2500 5.7L 1991 Chevrolet K2500 4.3L 1991 Chevrolet K3500 5.7L 1991 Chevrolet Lumina 3.1L 1991 Chevrolet Lumina 3.4L 1991 Chevrolet Lumina APV 3.1L 1991 Chevrolet P30 4.3L 1991 Chevrolet S10 2.8L 1991 Chevrolet S10 3.1L 1991 Chevrolet S10 4.3L 1991 Chevrolet S10 Blazer 3.1L 1991 Chevrolet S10 Blazer 4.3L 1991 GMC C1500 4.3L 1991 GMC C2500 4.3L 1991 GMC G1500 4.3L 1991 GMC G2500 4.3L 1991 GMC G3500 4.3L 1991 GMC K1500 5.0L 1991 GMC K1500 5.7L 1991 GMC K1500 4.3L 1991 GMC K2500 5.0L 1991 GMC K2500 5.7L 1991 GMC K2500 4.3L 1991 GMC K3500 5.7L 1991 GMC P3500 4.3L 1991 GMC S15 Jimmy 4.3L 1991 GMC Safari 4.3L 1991 GMC Sonoma 2.8L 1991 GMC Sonoma 4.3L 1991 GMC Syclone 4.3L 1991 Oldsmobile Bravada 4.3L 1991 Oldsmobile Cutlass 3.1L 1991 Oldsmobile Cutlass Supreme 3.1L 1991 Oldsmobile Cutlass Supreme 3.4L 1991 Oldsmobile Silhouette 3.1L 1991 Pontiac 6000 3.1L 1991 Pontiac Firebird 3.1L 1991 Pontiac Grand Prix 3.1L 1991 Pontiac Grand Prix 3.4L 1991 Pontiac Tempest 2.2L 1991 Pontiac Trans Sport 3.1L 1992 Buick Regal 3.1L 1992 Chevrolet Astro 4.3L 1992 Chevrolet Blazer 5.7L 1992 Chevrolet C1500 4.3L 1992 Chevrolet C2500 4.3L 1992 Chevrolet Camaro 3.1L 1992 Chevrolet Caprice 4.3L 1992 Chevrolet Commercial Chassis 4.3L 1992 Chevrolet Corvette 5.7L 1992 Chevrolet G10 4.3L 1992 Chevrolet G20 4.3L 1992 Chevrolet G30 4.3L 1992 Chevrolet K1500 5.0L 1992 Chevrolet K1500 5.7L 1992 Chevrolet K1500 4.3L 1992 Chevrolet K1500 Suburban 5.7L 1992 Chevrolet K2500 5.0L 1992 Chevrolet K2500 5.7L 1992 Chevrolet K2500 4.3L 1992 Chevrolet K2500 Suburban 5.7L 1992 Chevrolet K3500 5.7L 1992 Chevrolet Lumina 3.1L 1992 Chevrolet Lumina 3.4L 1992 Chevrolet Lumina APV 3.1L 1992 Chevrolet P30 4.3L 1992 Chevrolet S10 4.3L 1992 Chevrolet S10 2.8L 1992 Chevrolet S10 3.1L 1992 Chevrolet S10 Blazer 4.3L 1992 Chevrolet S10 Blazer 3.1L 1992 GMC C1500 4.3L 1992 GMC C2500 4.3L 1992 GMC G1500 4.3L 1992 GMC G2500 4.3L 1992 GMC G3500 4.3L 1992 GMC Jimmy 4.3L 1992 GMC K1500 5.0L 1992 GMC K1500 5.7L 1992 GMC K1500 4.3L 1992 GMC K1500 Suburban 5.7L 1992 GMC K2500 5.0L 1992 GMC K2500 5.7L 1992 GMC K2500 4.3L 1992 GMC K2500 Suburban 5.7L 1992 GMC K3500 5.7L 1992 GMC P3500 4.3L 1992 GMC Safari 4.3L 1992 GMC Sonoma 4.3L 1992 GMC Sonoma 2.8L 1992 GMC Typhoon 4.3L 1992 GMC Yukon 5.7L 1992 Oldsmobile Bravada 4.3L 1992 Oldsmobile Cutlass 3.1L 1992 Oldsmobile Cutlass Supreme 3.1L 1992 Oldsmobile Cutlass Supreme 3.4L 1992 Oldsmobile Silhouette 3.1L 1992 Pontiac Firebird 3.1L 1992 Pontiac Grand Prix 3.1L 1992 Pontiac Grand Prix 3.4L 1992 Pontiac Trans Sport 3.1L 1993 Buick Regal 3.1L 1993 Chevrolet Astro 4.3L 1993 Chevrolet Blazer 5.7L 1993 Chevrolet C1500 4.3L 1993 Chevrolet C2500 4.3L 1993 Chevrolet Caprice 4.3L 1993 Chevrolet Corvette 5.7L 1993 Chevrolet G10 4.3L 1993 Chevrolet G20 4.3L 1993 Chevrolet G30 4.3L 1993 Chevrolet K1500 5.0L 1993 Chevrolet K1500 5.7L 1993 Chevrolet K1500 4.3L 1993 Chevrolet K1500 Suburban 5.7L 1993 Chevrolet K2500 5.0L 1993 Chevrolet K2500 5.7L 1993 Chevrolet K2500 4.3L 1993 Chevrolet K2500 Suburban 5.7L 1993 Chevrolet K3500 5.7L 1993 Chevrolet Lumina 3.1L 1993 Chevrolet Lumina 3.4L 1993 Chevrolet Lumina APV 3.1L 1993 Chevrolet P30 4.3L 1993 Chevrolet S10 4.3L 1993 Chevrolet S10 2.8L 1993 Chevrolet S10 3.1L 1993 Chevrolet S10 Blazer 4.3L 1993 Chevrolet S10 Blazer 3.1L 1993 GMC C1500 4.3L 1993 GMC C2500 4.3L 1993 GMC G1500 4.3L 1993 GMC G2500 4.3L 1993 GMC G3500 4.3L 1993 GMC Jimmy 4.3L 1993 GMC K1500 5.0L 1993 GMC K1500 5.7L 1993 GMC K1500 4.3L 1993 GMC K1500 Suburban 5.7L 1993 GMC K2500 5.0L 1993 GMC K2500 5.7L 1993 GMC K2500 4.3L 1993 GMC K2500 Suburban 5.7L 1993 GMC K3500 5.7L 1993 GMC P3500 4.3L 1993 GMC Safari 4.3L 1993 GMC Sonoma 4.3L 1993 GMC Sonoma 2.8L 1993 GMC Typhoon 4.3L 1993 GMC Yukon 5.7L 1993 Oldsmobile Bravada 4.3L 1993 Oldsmobile Cutlass 3.1L 1993 Oldsmobile Cutlass Supreme 3.1L 1993 Oldsmobile Cutlass Supreme 3.4L 1993 Oldsmobile Silhouette 3.1L 1993 Pontiac Grand Prix 3.1L 1993 Pontiac Grand Prix 3.4L 1993 Pontiac Trans Sport 3.1L 1994 Buick Commercial Chassis 5.7L 1994 Buick Roadmaster 5.7L 1994 Cadillac Commercial Chassis 5.7L 1994 Cadillac Fleetwood 5.7L 1994 Chevrolet Astro 4.3L 1994 Chevrolet Blazer 5.7L 1994 Chevrolet C1500 4.3L 1994 Chevrolet C1500 4.1L 1994 Chevrolet C2500 4.3L 1994 Chevrolet Caprice 5.7L 1994 Chevrolet Caprice 4.3L 1994 Chevrolet Commercial Chassis 5.7L 1994 Chevrolet Corvette 5.7L 1994 Chevrolet G10 4.3L 1994 Chevrolet G20 4.3L 1994 Chevrolet G30 4.3L 1994 Chevrolet Impala 5.7L 1994 Chevrolet K1500 5.0L 1994 Chevrolet K1500 5.7L 1994 Chevrolet K1500 4.3L 1994 Chevrolet K1500 Suburban 5.7L 1994 Chevrolet K2500 5.0L 1994 Chevrolet K2500 5.7L 1994 Chevrolet K2500 4.3L 1994 Chevrolet K2500 Suburban 5.7L 1994 Chevrolet K3500 5.7L 1994 Chevrolet Lumina 3.4L 1994 Chevrolet Lumina APV 3.1L 1994 Chevrolet P30 4.3L 1994 Chevrolet S10 4.3L 1994 Chevrolet S10 Blazer 4.3L 1994 Chevrolet S10 Blazer 3.1L 1994 GMC C1500 4.3L 1994 GMC C2500 4.3L 1994 GMC G1500 4.3L 1994 GMC G2500 4.3L 1994 GMC G3500 4.3L 1994 GMC Jimmy 4.3L 1994 GMC K1500 5.0L 1994 GMC K1500 5.7L 1994 GMC K1500 4.3L 1994 GMC K1500 Suburban 5.7L 1994 GMC K2500 5.0L 1994 GMC K2500 5.7L 1994 GMC K2500 4.3L 1994 GMC K2500 Suburban 5.7L 1994 GMC K3500 5.7L 1994 GMC P3500 4.3L 1994 GMC Safari 4.3L 1994 GMC Sonoma 4.3L 1994 GMC Yukon 5.7L 1994 Oldsmobile Bravada 4.3L 1994 Oldsmobile Cutlass Supreme 3.4L 1994 Oldsmobile Silhouette 3.1L 1994 Pontiac Grand Prix 3.4L 1994 Pontiac Trans Sport 3.1L 1995 AM General Hummer 5.7L 1995 Buick Commercial Chassis 5.7L 1995 Buick Roadmaster 5.7L 1995 Cadillac Commercial Chassis 5.7L 1995 Cadillac Fleetwood 5.7L 1995 Chevrolet Astro 4.3L 1995 Chevrolet Blazer 4.3L 1995 Chevrolet C1500 4.3L 1995 Chevrolet C1500 4.1L 1995 Chevrolet C2500 4.3L 1995 Chevrolet Caprice 5.7L 1995 Chevrolet Caprice 4.3L 1995 Chevrolet Corvette 5.7L 1995 Chevrolet G10 4.3L 1995 Chevrolet G20 4.3L 1995 Chevrolet G30 4.3L 1995 Chevrolet Impala 5.7L 1995 Chevrolet K1500 5.0L 1995 Chevrolet K1500 5.7L 1995 Chevrolet K1500 4.3L 1995 Chevrolet K1500 Suburban 5.7L 1995 Chevrolet K2500 5.0L 1995 Chevrolet K2500 5.7L 1995 Chevrolet K2500 4.3L 1995 Chevrolet K2500 Suburban 5.7L 1995 Chevrolet K3500 5.7L 1995 Chevrolet Lumina 3.4L 1995 Chevrolet Monte Carlo 3.4L 1995 Chevrolet P30 4.3L 1995 Chevrolet S10 4.3L 1995 Chevrolet Suburban 1500 5.7L 1995 Chevrolet Tahoe 5.7L 1995 GMC C1500 4.3L 1995 GMC C2500 4.3L 1995 GMC G1500 4.3L 1995 GMC G2500 4.3L 1995 GMC G3500 4.3L 1995 GMC Jimmy 4.3L 1995 GMC K1500 5.0L 1995 GMC K1500 5.7L 1995 GMC K1500 4.3L 1995 GMC K1500 Suburban 5.7L 1995 GMC K2500 5.0L 1995 GMC K2500 5.7L 1995 GMC K2500 4.3L 1995 GMC K2500 Suburban 5.7L 1995 GMC K3500 5.7L 1995 GMC P3500 4.3L 1995 GMC Safari 4.3L 1995 GMC Sonoma 4.3L 1995 GMC Yukon 5.7L 1995 Oldsmobile Cutlass Supreme 3.4L 1995 Pontiac Grand Prix 3.4L 1996 AM General Hummer 5.7L 1996 Buick Commercial Chassis 5.7L 1996 Buick Roadmaster 5.7L 1996 Cadillac Commercial Chassis 5.7L 1996 Cadillac Fleetwood 5.7L 1996 Chevrolet Astro 4.3L 1996 Chevrolet Blazer 4.3L 1996 Chevrolet C1500 4.3L 1996 Chevrolet C1500 4.1L 1996 Chevrolet Caprice 5.7L 1996 Chevrolet Caprice 4.3L 1996 Chevrolet Corvette 5.7L 1996 Chevrolet Corvette 5.7L 1996 Chevrolet Express 1500 4.3L 1996 Chevrolet Express 2500 4.3L 1996 Chevrolet G30 4.3L 1996 Chevrolet Impala 5.7L 1996 Chevrolet K1500 5.7L 1996 Chevrolet K1500 4.3L 1996 Chevrolet K1500 5.0L 1996 Chevrolet K1500 Suburban 5.7L 1996 Chevrolet K2500 5.7L 1996 Chevrolet K2500 5.0L 1996 Chevrolet K2500 Suburban 5.7L 1996 Chevrolet K3500 5.7L 1996 Chevrolet Lumina 3.4L 1996 Chevrolet Monte Carlo 3.4L 1996 Chevrolet P30 5.7L 1996 Chevrolet P30 4.3L 1996 Chevrolet S10 4.3L 1996 Chevrolet Suburban 1500 5.7L 1996 Chevrolet Tahoe 5.7L 1996 GMC C1500 4.3L 1996 GMC G3500 4.3L 1996 GMC Jimmy 4.3L 1996 GMC K1500 5.7L 1996 GMC K1500 4.3L 1996 GMC K1500 5.0L 1996 GMC K1500 Suburban 5.7L 1996 GMC K2500 5.7L 1996 GMC K2500 Suburban 5.7L 1996 GMC K3500 5.7L 1996 GMC P3500 5.7L 1996 GMC P3500 4.3L 1996 GMC Safari 4.3L 1996 GMC Savana 1500 4.3L 1996 GMC Savana 2500 4.3L 1996 GMC Sonoma 4.3L 1996 GMC Yukon 5.7L 1996 Oldsmobile Bravada 4.3L 1996 Oldsmobile Cutlass Supreme 3.4L 1996 Pontiac Grand Prix 3.4L 1997 Chevrolet Astro 4.3L 1997 Chevrolet Blazer 4.3L 1997 Chevrolet C1500 4.3L 1997 Chevrolet C1500 4.1L 1997 Chevrolet Express 1500 4.3L 1997 Chevrolet Express 2500 4.3L 1997 Chevrolet Express 3500 4.3L 1997 Chevrolet K1500 5.7L 1997 Chevrolet K1500 4.3L 1997 Chevrolet K1500 5.0L 1997 Chevrolet K1500 Suburban 5.7L 1997 Chevrolet K2500 5.7L 1997 Chevrolet K2500 5.0L 1997 Chevrolet K2500 Suburban 5.7L 1997 Chevrolet K3500 5.7L 1997 Chevrolet Lumina 3.4L 1997 Chevrolet Monte Carlo 3.4L 1997 Chevrolet P30 5.7L 1997 Chevrolet P30 4.3L 1997 Chevrolet S10 4.3L 1997 Chevrolet Suburban 1500 5.7L 1997 Chevrolet Tahoe 5.7L 1997 GMC C1500 4.3L 1997 GMC Jimmy 4.3L 1997 GMC K1500 5.7L 1997 GMC K1500 4.3L 1997 GMC K1500 5.0L 1997 GMC K1500 Suburban 5.7L 1997 GMC K2500 5.7L 1997 GMC K2500 Suburban 5.7L 1997 GMC K3500 5.7L 1997 GMC P3500 5.7L 1997 GMC P3500 4.3L 1997 GMC Safari 4.3L 1997 GMC Savana 1500 4.3L 1997 GMC Savana 2500 4.3L 1997 GMC Savana 3500 4.3L 1997 GMC Sonoma 4.3L 1997 GMC Yukon 5.7L 1997 Isuzu Hombre 4.3L 1997 Oldsmobile Bravada 4.3L 1998 Chevrolet Astro 4.3L 1998 Chevrolet Blazer 4.3L 1998 Chevrolet C1500 4.3L 1998 Chevrolet C1500 4.1L 1998 Chevrolet Express 1500 4.3L 1998 Chevrolet Express 2500 4.3L 1998 Chevrolet Express 3500 4.3L 1998 Chevrolet K1500 5.7L 1998 Chevrolet K1500 4.3L 1998 Chevrolet K1500 5.0L 1998 Chevrolet K1500 Suburban 5.7L 1998 Chevrolet K2500 5.7L 1998 Chevrolet K2500 5.0L 1998 Chevrolet K2500 Suburban 5.7L 1998 Chevrolet K3500 5.7L 1998 Chevrolet P30 5.7L 1998 Chevrolet P30 4.3L 1998 Chevrolet P30 4.1L 1998 Chevrolet S10 4.3L 1998 Chevrolet Silverado 5.7L 1998 Chevrolet Suburban 1500 5.7L 1998 Chevrolet Tahoe 5.7L 1998 GMC C1500 4.3L 1998 GMC Jimmy 4.3L 1998 GMC K1500 5.7L 1998 GMC K1500 4.3L 1998 GMC K1500 5.0L 1998 GMC K1500 Suburban 5.7L 1998 GMC K2500 5.7L 1998 GMC K2500 5.0L 1998 GMC K2500 Suburban 5.7L 1998 GMC K3500 5.7L 1998 GMC P3500 5.7L 1998 GMC P3500 4.3L 1998 GMC Safari 4.3L 1998 GMC Savana 1500 4.3L 1998 GMC Savana 2500 4.3L 1998 GMC Savana 3500 4.3L 1998 GMC Sonoma 4.3L 1998 GMC Yukon 5.7L 1998 Isuzu Hombre 4.3L 1998 Oldsmobile Bravada 4.3L 1999 Cadillac Escalade 5.7L 1999 Chevrolet Astro 4.3L 1999 Chevrolet Blazer 4.3L 1999 Chevrolet C1500 4.3L 1999 Chevrolet Express 1500 4.3L 1999 Chevrolet Express 2500 4.3L 1999 Chevrolet K1500 5.7L 1999 Chevrolet K1500 5.0L 1999 Chevrolet K1500 Suburban 5.7L 1999 Chevrolet K2500 5.7L 1999 Chevrolet K2500 Suburban 5.7L 1999 Chevrolet K3500 5.7L 1999 Chevrolet P30 5.7L 1999 Chevrolet P30 4.3L 1999 Chevrolet P30 4.1L 1999 Chevrolet S10 4.3L 1999 Chevrolet Silverado 5.7L 1999 Chevrolet Silverado 1500 4.3L 1999 Chevrolet Suburban 1500 5.7L 1999 Chevrolet Tahoe 5.7L 1999 GMC Jimmy 4.3L 1999 GMC K1500 5.7L 1999 GMC K1500 5.0L 1999 GMC K1500 Suburban 5.7L 1999 GMC K2500 5.7L 1999 GMC K2500 Suburban 5.7L 1999 GMC K3500 5.7L 1999 GMC P3500 5.7L 1999 GMC P3500 4.3L 1999 GMC Safari 4.3L 1999 GMC Savana 1500 4.3L 1999 GMC Savana 2500 4.3L 1999 GMC Sierra 1500 4.3L 1999 GMC Sonoma 4.3L 1999 GMC Yukon 5.7L 1999 Isuzu Hombre 4.3L 1999 Oldsmobile Bravada 4.3L 1999 Workhorse Custom Chassis P42 5.7L 2000 Cadillac Escalade 5.7L 2000 Chevrolet Blazer 4.3L 2000 Chevrolet C1500 4.3L 2000 Chevrolet K2500 5.7L 2000 Chevrolet K3500 5.7L 2000 Chevrolet P30 4.1L 2000 Chevrolet S10 4.3L 2000 Chevrolet Silverado 1500 4.3L 2000 Chevrolet Tahoe 5.7L 2000 GMC Jimmy 4.3L 2000 GMC K2500 5.7L 2000 GMC K3500 5.7L 2000 GMC Sierra 1500 4.3L 2000 GMC Sonoma 4.3L 2000 GMC Yukon 5.7L 2000 Isuzu Hombre 4.3L 2000 Oldsmobile Bravada 4.3L 2000 Workhorse P30 5.7L 2000 Workhorse Custom Chassis P42 5.7L 2001 Chevrolet Blazer 4.3L 2001 Chevrolet C1500 4.3L 2001 Chevrolet P30 4.1L 2001 Chevrolet S10 4.3L 2001 Chevrolet Silverado 1500 4.3L 2001 GMC Jimmy 4.3L 2001 GMC Sierra 1500 4.3L 2001 GMC Sonoma 4.3L 2001 Oldsmobile Bravada 4.3L 2001 Workhorse FasTrack FT1260 5.7L 2001 Workhorse FasTrack FT1460 5.7L 2001 Workhorse FasTrack FT1600 5.7L 2001 Workhorse FasTrack FT1800 5.7L 2001 Workhorse P30 5.7L 2001 Workhorse P32 5.7L 2001 Workhorse Custom Chassis P42 5.7L 2002 Chevrolet Blazer 4.3L 2002 Chevrolet C1500 4.3L 2002 Chevrolet P30 4.1L 2002 Chevrolet S10 4.3L 2002 GMC Jimmy 4.3L 2002 GMC Sonoma 4.3L 2002 Workhorse FasTrack FT1061 5.7L 2002 Workhorse FasTrack FT1261 5.7L 2002 Workhorse FasTrack FT1460 5.7L 2002 Workhorse FasTrack FT1461 5.7L 2002 Workhorse FasTrack FT1601 5.7L 2002 Workhorse FasTrack FT1801 5.7L 2002 Workhorse FasTrack FT1802 5.7L 2002 Workhorse P30 5.7L 2002 Workhorse P32 5.7L 2002 Workhorse Custom Chassis P42 5.7L 2003 Chevrolet Blazer 4.3L 2003 Chevrolet P30 4.1L 2003 Chevrolet S10 4.3L 2003 GMC Jimmy 4.3L 2003 GMC Sonoma 4.3L 2003 Workhorse FasTrack FT1061 5.7L 2003 Workhorse FasTrack FT1261 5.7L 2003 Workhorse FasTrack FT1461 5.7L 2003 Workhorse FasTrack FT1601 5.7L 2003 Workhorse FasTrack FT1801 5.7L 2003 Workhorse FasTrack FT1802 5.7L 2003 Workhorse P30 5.7L 2003 Workhorse Custom Chassis P42 5.7L 2004 Chevrolet Blazer 4.3L 2004 Chevrolet P30 4.1L 2004 Chevrolet S10 4.3L 2004 GMC Jimmy 4.3L 2004 GMC Sonoma 4.3L 2004 Workhorse FasTrack FT1061 5.7L 2004 Workhorse FasTrack FT1261 5.7L 2004 Workhorse FasTrack FT1461 5.7L 2004 Workhorse FasTrack FT1601 5.7L 2004 Workhorse FasTrack FT1801 5.7L 2004 Workhorse P30 5.7L 2004 Workhorse Custom Chassis P42 5.7L 2005 Chevrolet Blazer 4.3L 2005 Chevrolet P30 4.1L 2005 GMC Jimmy 4.3L 2005 Workhorse P30 5.7L - Interchange
Compatible competitor and OE part numbers
Brand Part Number ACDelco PF52 ACDelco PF52E Alliance Parts ABP/N10G-LF782 AM General 06004104 AM General 6004104 Amsoil ASF23 Amsoil EAO23 Aquapower 6004 Atlas G-77 Auto Extra 61851036 Autopar - Archived FE204 Autopro 2036 Autovalue 1-3535 Autowize A15 Award AOF-173 Baldwin B35-S BHGJ OC721 Big A 92036 Bosch 3430 Bosch 72210 Bosch D3430 Bravo B173 Cam2 C4011 Canada Tire 17-1710-6 Canada Tire 17-1712-2 Car Care IOF3535 Car Care IOF3980 Carquest 85036 Carquest B4011 Carquest R85036 Carquest Premium Filters 85036 Casite Filters CF51 Casite Filters CF52 Castrol CAS3980 Caterpillar 3I-1114 Cenex CO447A Certified CPH3980 Champ PH51A Champion 41036T Champion COS3980 Champion OF08 Champion OF32 Champion Filters 41036T Champion Filters COS3980 Champion Filters OF08 Champion Filters OF32 Chrysler L-319 Citgo Petroleum C4011 Cruisemaster 218 DDXX MO4011 Defense Filters DL3980 Delphi FX1016 Deutsch D487 Donaldson C-3980 Donaldson LFP550051 Donaldson P550051 Driveworks DW-4011 DVCR D3430 Dynalife CN-3535 Econo-lube L24011 Evergard E4011 Facet Industrial 51 Factory Motor Parts R1036 Filters Inc OF3535 Filters Inc OF3980 Firestone TF52 Flag C-3535 Flag C-3980 Fleetguard LF3554 Fleetguard LF42503 Fleetguard LF782 Fleetrite LFR-83486 Fleetrite LFR-8782 FRAM XG3980 FRAM Core COR3387AACC FRAM Drive FD3980 FRAM Force FF3980 FRAM Pro FP3387ABP FRAM Racing HP11 FRAM Synthetic Endurance FE3980 FRAM Titanium FS3980 FRAM Tough Guard TG3980 FVP R1036 General Motors 12555891 General Motors 19210286 General Motors 25010908 General Motors 25012760 General Motors 25160560 General Motors 25171377 General Motors 25325403 Gonher GP3980 Gonher GP48 Goodyear 222-4516 Goodyear L51 Goodyear L52 Grand Prix PH51A Grease Monkey GM24011 Grease Monkey GM51 Grease Monkey GM52 Group 7 V4011 Hastings LF234 Hastings LF234F Hastings LF393 Hastings LF393F Havoline T-27 HQCY MO4011 Hutchens SF-173 Hyster 1320000 Hyster 375588 Installer Edge AL3980 Installer Edge ML3980 Isuzu 8-25171-377-0 Jiffy Lube HL3980 Jiffy Lube JL173 Jiffy Lube JL4011 Jiffy Lube L20173 Jiffy Lube L24011 John Deere TY15135 K Mart K-12 K Mart MP-12 K Mart MP-42 K&N HP-2001 K&N PS-2001 Kendall K10 Kendall K25 Kralinator L197 Kralinator L297 Lee LF-51 Lee LF-51A Lee LF-51AHP Lee LF-51HP Letourneau MO51 LUBER-FINER PH51A Magneti Marelli 1AMFL00020 MAHLE OC721 Mann-Filter ML 1007 Mann-Filter W7 MULTI 18 Mann-Filter W713/18 Mann-Filter W718/3 Marathon MO51 Master Parts PH-51 Master Parts PH-51A Mercury 35-802884Q Mercury 35-802884T Mercury 35-883702Q Mercury 41815 MICRO F-173 Micro Filters F-173 MicroGard MGL3980 MicroGard MGL51036 Mighty Distributing System M3980 Mileguard MO3980 Minit-Lube PH51 Mobil 1 M1-201 Mobil 1 M1-201A MotoMaster MPH3980 Motorcraft FL-402 NAPA 1036 NAPA 1190 NAPA Gold Filters 1036 NAPA Platinum Filters 41036 NAPA Silver Filters 31036 OMC 173834 OMC 502903 Parts Master 61036 Parts Master 61036BP Parts Plus PH51A Pennzoil HPZ-29 Pennzoil PZ-29 Pennzoil PZ29 Pennzoil PZ29BP Pentius PLB3980 Performax PO-29 Phillips 66 PO4011 Pit Stop PSL25 Power Flo SL24011 Precision Tune OF-144 Precision Tune OF-52 Premium Guard PG4011 Prime Guard Filters - Archived POF4011 Pro-Gauge PGO-4011 Pro-Tec 120 Professionals Choice - Archived Q4011 Promotive PH4011 Pronto PG-3980 Pronto PO-3535 Pronto PO-3980 Pronto PO-4011 PureZone 8-51036 Purolator L20173 Purolator L24011 Purolator BOSS PBL24011 Purolator PureONE PL24011 Purolator TECH TL24011 PurolatorONE PL24011 Quaker State QS3980 Quaker State QS3980BLK Quality Manufacturing Inc QF51 Rockhill 61036 Safety-Kleen 110 Sears 45180 Sears 45203 Security Filters SO173 Service Champ OF4011 Service Pro M4011 Shell - Archived SH27 Sieg OS3535 Sierra 18-7879 Silverline 21036 STP S3980 STP S3980XL STP Filters S3980 STP Filters S3980XL Sunoco O-17 Sunoco O-29 Super Tech Filters ST3980 Tecnocar R MIX 18 Tough Guard TG3980 Trust PH51A Unocal 76 PF51 Valu-test 42051 Valu-test V2036 Valucraft V3980 Valvoline VO-55 Valvoline VO-55BP VIPER 3980 Volvo 841750 Volvo 841750-3 WALMI WS-3535 WALMI WS-3980 Warner Filters PH51 Warner Filters PH51A Web W3980 Western Auto 74-5918-3 Wix 51036 Wix 51036XP Wix 51190 Workhorse W8800466 Yamaha YSC-16231-20-0C Yamaha YSC-16231-20-OC - Installation
- Use proper protective gear. Used motor oil should not come in contact with bare skin. Engine oil may be hot.
- Place a drain pan under the oil filter and unscrew oil filter.
- Clean mounting base making sure the O-ring from the old filter is not stuck to the filter mount.
- Apply film of clean oil to filter gasket. Do not use grease.
- Screw new filter on until gasket reaches base contact. Then tighten according to instructions on filter using tightening guide markers.
- Check owner’s manual for correct oil specification viscosity and amount.
- Add oil to “full” on dipstick. Idle engine for 5 minutes and check for leaks.
- Shut off engine and recheck oil level after 5 minutes and top off as necessary.
