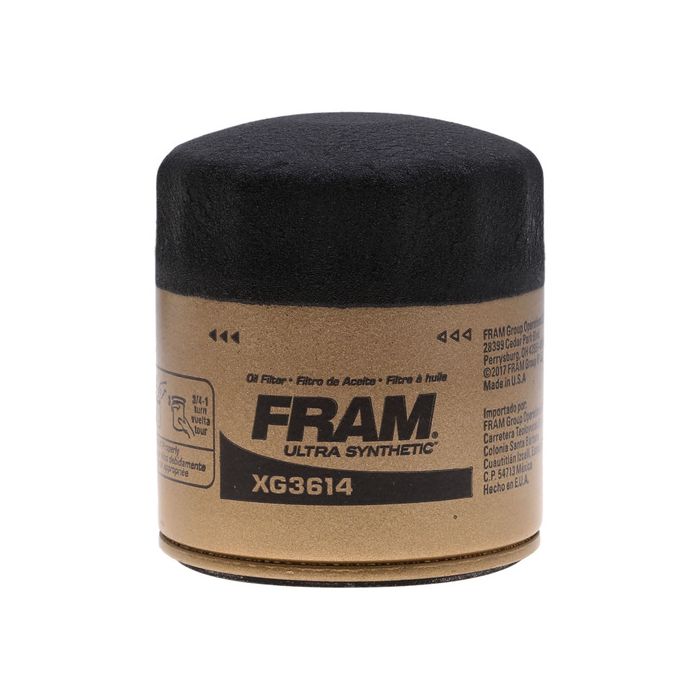

FRAM Ultra Synthetic® Oil Filter
SKU
XG3614
| Height (Inch) | 3.430 |
|---|---|
| Outside Diameter (Inch) | 2.984 |
| Anti-Drain Back Valve | Yes |
| Bypass Relief Valve | Yes |
| Gasket Inside Diameter (Inch) | 2.450 |
| Gasket Outside Diameter (Inch) | 2.760 |
| Gasket Thickness (Inch) | 0.191 |
| Gasket Type | Base |
| Attachment Type | Spin-On |
| Burst Pressure (Pounds per Square Inch) | 310.000 |
| Bypass Relief Valve Setting (Pounds per Square Inch) | 12 |
| Filter Media Material | Synthetic |
| Inlet Type | Threaded |
| Inside Thread Diameter (Inch) | 3/4-16 |
| Thread Size | Standard |
| Torque Nut | No |
Where To Shop
Search
Search
- Description
FRAM Ultra Synthetic® oil filters are engineered for drivers who are looking for ultimate performance and engine protection. Its dual-layered synthetic blend media provides 99%+ filtering efficiency and protects up to 20,000 miles (32,000 kilometers). The silicone anti-drain back valve ensures safe engine startups, extending the life of the oil filter. FRAM Ultra Synthetic is equipped with SureGrip® technology that provides a non-slip surface allowing for easy install and removal.
- Proven protection for up to 20,000 miles (32,000 kilometers)
- SureGrip® technology for easy install and removal
- Silicone anti-drain back valve helps ensure safe engine start up
- Dual-layered synthetic blend media provides 99%+ filtration efficiency*
- Optimized for synthetic motor oil
*FRAM Group testing of average filter efficiency of XG8A, XG3387A and XG4967 under ISO 4548-12 for particles greater than 20 microns.
**FRAM Group mulitpass testing of representative sampling of average filter capacity of comparable competitive retail products based on ISO4548-12 for XG8A and XG3387A.
***Greater than 3X the functional life of Nitrile ADB when tested per SAE HS806 hot oil and Anti-drain-back test.
+ FRAM Group testing per USCAR-36 Low Temperature Leakage test after hot oil, when compared to standard nitrile gasket.
?Not all features are available on every part number in the product line. Check the package for specific features of individual filters.
- Applications
This Item Fits the Following Vehicles:
Year Make Model Engine 95-94 ALFA ROMEO 164 V6-3.0L 1993 ASUNA GT L4-1.6L 1993 ASUNA SE L4-1.6L 18-16 AUDI A3 SPORTBACK E-TRON L4-1.4L 00-98 CHEVROLET METRO L3-1.0L 01-98 CHEVROLET METRO L4-1.3L 1992 CHEVROLET METRO L4-1.3L 92-85 CHEVROLET SPRINT L3-1.0L 91-89 CHEVROLET TRACKER L4-1.6L 99-98 CHEVROLET TRACKER L4-1.6L 2000 CHRYSLER CIRRUS L4-2.0L 00-95 CHRYSLER CIRRUS L4-2.4L 90-84 CHRYSLER DAYTONA L4-2.2L 90-87 CHRYSLER DAYTONA L4-2.5L 1990 CHRYSLER DAYTONA V6-3.0L 90-88 CHRYSLER DYNASTY L4-2.5L 90-88 CHRYSLER DYNASTY V6-3.0L 1990 CHRYSLER DYNASTY V6-3.3L 84-83 CHRYSLER E CLASS L4-2.2L 1986 CHRYSLER EXECUTIVE LIMOUSINE L4-2.2L 1986 CHRYSLER EXECUTIVE LIMOUSINE L4-2.5L 1990 CHRYSLER IMPERIAL V6-3.3L 86-84 CHRYSLER LASER L4-2.2L 1986 CHRYSLER LASER L4-2.5L 90-82 CHRYSLER LEBARON L4-2.2L 90-86 CHRYSLER LEBARON L4-2.5L 1990 CHRYSLER LEBARON V6-3.0L 02-00 CHRYSLER NEON L4-2.0L 88-83 CHRYSLER NEW YORKER L4-2.2L 87-86 CHRYSLER NEW YORKER L4-2.5L 89-88 CHRYSLER NEW YORKER V6-3.0L 1990 CHRYSLER NEW YORKER V6-3.3L 2008 CHRYSLER PACIFICA V6-3.8L 10-01 CHRYSLER PT CRUISER L4-2.4L 06-01 CHRYSLER SEBRING L4-2.4L 98-96 CHRYSLER SEBRING L4-2.4L 90-89 CHRYSLER TC MASERATI L4-2.2L 1990 CHRYSLER TC MASERATI V6-3.0L 88-82 CHRYSLER TOWN & COUNTRY L4-2.2L 88-86 CHRYSLER TOWN & COUNTRY L4-2.5L 10-07 CHRYSLER TOWN & COUNTRY V6-3.3L 1990 CHRYSLER TOWN & COUNTRY V6-3.3L 10-07 CHRYSLER TOWN & COUNTRY V6-3.8L 2010 CHRYSLER TOWN & COUNTRY V6-4.0L 03-00 CHRYSLER VOYAGER L4-2.4L 83-82 DODGE 400 L4-2.2L 88-83 DODGE 600 L4-2.2L 88-86 DODGE 600 L4-2.5L 89-81 DODGE ARIES L4-2.2L 89-86 DODGE ARIES L4-2.5L 90-88 DODGE B150 V6-3.9L 90-88 DODGE B250 V6-3.9L 87-84 DODGE CARAVAN L4-2.2L 07-96 DODGE CARAVAN L4-2.4L 90-88 DODGE CARAVAN L4-2.5L 90-87 DODGE CARAVAN V6-3.0L 1990 DODGE CARAVAN V6-3.3L 2007 DODGE CARAVAN V6-3.3L 86-83 DODGE CHARGER L4-1.6L 1983 DODGE CHARGER L4-1.7L 87-83 DODGE CHARGER L4-2.2L 89-88 DODGE D100 V6-3.9L 90-88 DODGE D150 V6-3.9L 90-88 DODGE D250 V6-3.9L 88-87 DODGE DAKOTA L4-2.2L 90-89 DODGE DAKOTA L4-2.5L 90-87 DODGE DAKOTA V6-3.9L 90-84 DODGE DAYTONA L4-2.2L 90-86 DODGE DAYTONA L4-2.5L 1990 DODGE DAYTONA V6-3.0L 90-88 DODGE DYNASTY L4-2.5L 90-88 DODGE DYNASTY V6-3.0L 1990 DODGE DYNASTY V6-3.3L 97-96 DODGE GRAND CARAVAN L4-2.4L 89-87 DODGE GRAND CARAVAN L4-2.5L 89-87 DODGE GRAND CARAVAN V6-3.0L 10-07 DODGE GRAND CARAVAN V6-3.3L 1990 DODGE GRAND CARAVAN V6-3.3L 10-07 DODGE GRAND CARAVAN V6-3.8L 2010 DODGE GRAND CARAVAN V6-4.0L 89-85 DODGE LANCER L4-2.2L 89-86 DODGE LANCER L4-2.5L 87-84 DODGE MINI RAM L4-2.2L 88-87 DODGE MINI RAM L4-2.5L 88-87 DODGE MINI RAM V6-3.0L 05-95 DODGE NEON L4-2.0L 86-83 DODGE OMNI L4-1.6L 83-79 DODGE OMNI L4-1.7L 90-81 DODGE OMNI L4-2.2L 84-82 DODGE RAMPAGE L4-2.2L 90-87 DODGE SHADOW L4-2.2L 90-88 DODGE SHADOW L4-2.5L 90-89 DODGE SPIRIT L4-2.5L 90-89 DODGE SPIRIT V6-3.0L 00-95 DODGE STRATUS L4-2.0L 06-03 DODGE STRATUS L4-2.0L 06-95 DODGE STRATUS L4-2.4L 05-03 DODGE SX 2.0 L4-2.0L 1989 DODGE W100 V6-3.9L 90-89 DODGE W150 V6-3.9L 24-21 FORD BRONCO L4-2.3L 25-21 FORD BRONCO SPORT L3-1.5L 25-21 FORD BRONCO SPORT L4-2.0L 18-13 FORD C-MAX L4-2.0L 11-09 FORD CROWN VICTORIA V8-4.6L 21-18 FORD ECOSPORT L3-1.0L 22-18 FORD ECOSPORT L4-2.0L 24-12 FORD EDGE L4-2.0L 25-20 FORD ESCAPE L3-1.5L 19-17 FORD ESCAPE L4-1.5L 16-13 FORD ESCAPE L4-1.6L 25-13 FORD ESCAPE L4-2.0L 08-05 FORD ESCAPE L4-2.3L 25-09 FORD ESCAPE L4-2.5L 15-12 FORD EXPLORER L4-2.0L 24-16 FORD EXPLORER L4-2.3L 17-14 FORD FIESTA L3-1.0L 19-06 FORD FIESTA L4-1.6L 18-15 FORD FOCUS L3-1.0L 18-05 FORD FOCUS L4-2.0L 07-03 FORD FOCUS L4-2.3L 18-16 FORD FOCUS L4-2.3L 20-14 FORD FUSION L4-1.5L 14-13 FORD FUSION L4-1.6L 20-13 FORD FUSION L4-2.0L 09-06 FORD FUSION L4-2.3L 20-10 FORD FUSION L4-2.5L 25-22 FORD MAVERICK L4-2.0L 25-22 FORD MAVERICK L4-2.5L 23-15 FORD MUSTANG L4-2.3L 20-19 FORD POLICE RESPONDER HYBRID L4-2.0L 11-04 FORD RANGER L4-2.3L 25-19 FORD RANGER L4-2.3L 18-14 FORD SPECIAL SERVICE POLICE SEDAN L4-2.0L 20-19 FORD SSV PLUG-IN HYBRID L4-2.0L 17-13 FORD TAURUS L4-2.0L 16-14 FORD TRANSIT CONNECT L4-1.6L 13-10 FORD TRANSIT CONNECT L4-2.0L 23-19 FORD TRANSIT CONNECT L4-2.0L 22-14 FORD TRANSIT CONNECT L4-2.5L 97-89 GEO METRO L3-1.0L 97-92 GEO METRO L4-1.3L 97-89 GEO TRACKER L4-1.6L 91-89 GMC TRACKER L4-1.6L 2017 JAGUAR XE L4-2.0L 15-13 JAGUAR XF L4-2.0L 05-02 JEEP LIBERTY L4-2.4L 06-05 JEEP TJ L4-2.4L 2003 JEEP TJ L4-2.4L 06-03 JEEP WRANGLER L4-2.4L 11-07 JEEP WRANGLER V6-3.8L 17-15 LAND ROVER DISCOVERY SPORT L4-2.0L 15-13 LAND ROVER LR2 L4-2.0L 17-12 LAND ROVER RANGE ROVER EVOQUE L4-2.0L 91-90 LEXUS ES250 V6-2.5L 03-92 LEXUS ES300 V6-3.0L 06-04 LEXUS ES330 V6-3.3L 05-93 LEXUS GS300 L6-3.0L 00-98 LEXUS GS400 V8-4.0L 07-01 LEXUS GS430 V8-4.3L 09-03 LEXUS GX470 V8-4.7L 05-01 LEXUS IS300 L6-3.0L 00-90 LEXUS LS400 V8-4.0L 06-01 LEXUS LS430 V8-4.3L 1997 LEXUS LX450 L6-4.5L 07-98 LEXUS LX470 V8-4.7L 03-99 LEXUS RX300 V6-3.0L 06-04 LEXUS RX330 V6-3.3L 08-06 LEXUS RX400H V6-3.3L 00-92 LEXUS SC300 L6-3.0L 00-92 LEXUS SC400 V8-4.0L 10-02 LEXUS SC430 V8-4.3L 22-20 LINCOLN CORSAIR L4-2.0L 22-20 LINCOLN CORSAIR L4-2.3L 25-21 LINCOLN CORSAIR L4-2.5L 19-15 LINCOLN MKC L4-2.0L 19-15 LINCOLN MKC L4-2.3L 16-13 LINCOLN MKT L4-2.0L 20-13 LINCOLN MKZ L4-2.0L 12-11 LINCOLN MKZ L4-2.5L 23-19 LINCOLN NAUTILUS L4-2.0L 13-04 MAZDA 3 L4-2.0L 13-10 MAZDA 3 L4-2.3L 13-10 MAZDA 3 L4-2.5L 13-09 MAZDA 3 SPORT L4-2.0L 13-10 MAZDA 3 SPORT L4-2.5L 10-09 MAZDA 5 L4-2.3L 17-12 MAZDA 5 L4-2.5L 13-09 MAZDA 6 L4-2.5L 10-04 MAZDA B2300 L4-2.3L 2019 MAZDA CX-5 L4-2.2L 12-10 MAZDA CX-7 L4-2.3L 12-10 MAZDA CX-7 L4-2.5L 2025 MAZDA CX-70 L6-3.3L 25-24 MAZDA CX-90 L6-3.3L 15-06 MAZDA MX-5 MIATA L4-2.0L 06-05 MAZDA TRIBUTE L4-2.3L 2008 MAZDA TRIBUTE L4-2.3L 11-09 MAZDA TRIBUTE L4-2.5L 08-05 MERCURY MARINER L4-2.3L 11-09 MERCURY MARINER L4-2.5L 08-06 MERCURY MILAN L4-2.3L 11-10 MERCURY MILAN L4-2.5L 1990 MORGAN 4/4 L4-1.6L 90-89 PLYMOUTH ACCLAIM L4-2.5L 90-89 PLYMOUTH ACCLAIM V6-3.0L 00-96 PLYMOUTH BREEZE L4-2.0L 00-96 PLYMOUTH BREEZE L4-2.4L 88-83 PLYMOUTH CARAVELLE L4-2.2L 88-86 PLYMOUTH CARAVELLE L4-2.5L 89-87 PLYMOUTH EXPO L4-2.2L 97-96 PLYMOUTH GRAND VOYAGER L4-2.4L 88-87 PLYMOUTH GRAND VOYAGER L4-2.5L 89-87 PLYMOUTH GRAND VOYAGER V6-3.0L 1990 PLYMOUTH GRAND VOYAGER V6-3.3L 86-83 PLYMOUTH HORIZON L4-1.6L 83-78 PLYMOUTH HORIZON L4-1.7L 90-81 PLYMOUTH HORIZON L4-2.2L 01-95 PLYMOUTH NEON L4-2.0L 89-81 PLYMOUTH RELIANT L4-2.2L 89-86 PLYMOUTH RELIANT L4-2.5L 1983 PLYMOUTH SCAMP L4-2.2L 90-87 PLYMOUTH SUNDANCE L4-2.2L 90-88 PLYMOUTH SUNDANCE L4-2.5L 82-80 PLYMOUTH TC3 L4-1.7L 82-81 PLYMOUTH TC3 L4-2.2L 86-83 PLYMOUTH TURISMO L4-1.6L 1983 PLYMOUTH TURISMO L4-1.7L 87-83 PLYMOUTH TURISMO L4-2.2L 86-83 PLYMOUTH TURISMO 2.2 L4-2.2L 87-84 PLYMOUTH VOYAGER L4-2.2L 00-96 PLYMOUTH VOYAGER L4-2.4L 90-87 PLYMOUTH VOYAGER L4-2.5L 90-87 PLYMOUTH VOYAGER V6-3.0L 00-94 PONTIAC FIREFLY L3-1.0L 91-85 PONTIAC FIREFLY L3-1.0L 00-94 PONTIAC FIREFLY L4-1.3L 98-79 SAAB 900 L4-2.0L 94-91 SAAB 900 L4-2.1L 98-94 SAAB 900 L4-2.3L 90-86 SAAB 9000 L4-2.0L 98-90 SAAB 9000 L4-2.3L 03-99 SAAB 9-3 L4-2.0L 02-99 SAAB 9-3 L4-2.3L 68-61 SAAB 95 L3-0.8L 70-67 SAAB 95 V4-1.5L 73-71 SAAB 95 V4-1.7L 09-99 SAAB 9-5 L4-2.3L 03-99 SAAB 9-5 V6-3.0L 68-61 SAAB 96 L3-0.8L 70-67 SAAB 96 V4-1.5L 73-72 SAAB 96 V4-1.7L 65-61 SAAB 96 SPORT L3-0.8L 70-69 SAAB 99 L4-1.7L 80-72 SAAB 99 L4-2.0L 67-65 SAAB MONTE CARLO L3-0.8L 1967 SAAB MONTE CARLO V4-1.5L 68-67 SAAB SHRIKE L3-0.8L 68-67 SAAB SONETT L3-0.8L 69-68 SAAB SONETT V4-1.5L 74-70 SAAB SONETT V4-1.7L 92-91 SATURN SC L4-1.9L 02-93 SATURN SC1 L4-1.9L 02-93 SATURN SC2 L4-1.9L 02-91 SATURN SL L4-1.9L 02-91 SATURN SL1 L4-1.9L 02-91 SATURN SL2 L4-1.9L 99-93 SATURN SW1 L4-1.9L 01-93 SATURN SW2 L4-1.9L 01-95 SUZUKI ESTEEM L4-1.6L 88-85 SUZUKI FORSA L3-1.0L 1985 SUZUKI SA310 L3-1.0L 98-95 SUZUKI SIDEKICK L4-1.6L 82-80 SUZUKI SJ410 L3-1.0L 85-83 SUZUKI SJ410 L4-1.0L 1985 SUZUKI SJ413 L4-1.3L 94-92 SUZUKI SWIFT L3-1.0L 00-95 SUZUKI SWIFT L4-1.3L 93-92 SUZUKI SWIFT L4-1.6L 98-96 SUZUKI X-90 L4-1.6L 95-84 TOYOTA 4RUNNER L4-2.4L 00-96 TOYOTA 4RUNNER L4-2.7L 2010 TOYOTA 4RUNNER L4-2.7L 95-88 TOYOTA 4RUNNER V6-3.0L 02-96 TOYOTA 4RUNNER V6-3.4L 09-03 TOYOTA 4RUNNER V6-4.0L 09-03 TOYOTA 4RUNNER V8-4.7L 04-95 TOYOTA AVALON V6-3.0L 91-88 TOYOTA CAMRY V6-2.5L 06-92 TOYOTA CAMRY V6-3.0L 06-04 TOYOTA CAMRY V6-3.3L 2002 TOYOTA CELICA L4-1.8L 89-88 TOYOTA CELICA L4-2.0L 80-77 TOYOTA CELICA L4-2.2L 85-81 TOYOTA CELICA L4-2.4L 80-79 TOYOTA CELICA L6-2.6L 86-81 TOYOTA CELICA L6-2.8L 80-77 TOYOTA CORONA L4-2.2L 82-81 TOYOTA CORONA L4-2.4L 80-78 TOYOTA CRESSIDA L6-2.6L 88-81 TOYOTA CRESSIDA L6-2.8L 92-89 TOYOTA CRESSIDA L6-3.0L 09-07 TOYOTA FJ CRUISER V6-4.0L 16-06 TOYOTA HIACE L4-2.7L 03-01 TOYOTA HIGHLANDER V6-3.0L 10-04 TOYOTA HIGHLANDER V6-3.3L 14-04 TOYOTA HILUX L4-2.7L 97-96 TOYOTA LAND CRUISER L6-4.5L 07-98 TOYOTA LAND CRUISER V8-4.7L 80-77 TOYOTA PICKUP L4-2.2L 95-81 TOYOTA PICKUP L4-2.4L 95-88 TOYOTA PICKUP V6-3.0L 97-91 TOYOTA PREVIA L4-2.4L 09-01 TOYOTA SEQUOIA V8-4.7L 03-98 TOYOTA SIENNA V6-3.0L 06-04 TOYOTA SIENNA V6-3.3L 03-99 TOYOTA SOLARA V6-3.0L 08-04 TOYOTA SOLARA V6-3.3L 98-86 TOYOTA SUPRA L6-3.0L 98-94 TOYOTA T100 L4-2.7L 94-93 TOYOTA T100 V6-3.0L 98-95 TOYOTA T100 V6-3.4L 04-95 TOYOTA TACOMA L4-2.4L 23-95 TOYOTA TACOMA L4-2.7L 04-95 TOYOTA TACOMA V6-3.4L 15-05 TOYOTA TACOMA V6-4.0L 04-00 TOYOTA TUNDRA V6-3.4L 11-05 TOYOTA TUNDRA V6-4.0L 09-00 TOYOTA TUNDRA V8-4.7L 21-19 VOLKSWAGEN GOLF L4-1.4L 2019 VOLKSWAGEN GOLF SPORTWAGEN L4-1.4L 21-13 VOLKSWAGEN JETTA L4-1.4L 25-22 VOLKSWAGEN JETTA L4-1.5L 10-09 VOLKSWAGEN ROUTAN V6-3.8L 24-22 VOLKSWAGEN TAOS L4-1.5L 92-90 YUGO CABRIO L4-1.3L 89-86 YUGO GV L4-1.1L 92-90 YUGO GV L4-1.3L 89-88 YUGO GVL L4-1.1L 1988 YUGO GVS L4-1.1L 89-87 YUGO GVX L4-1.3L - Comparison
COMPETITOR NAME COMPETITOR PART # ACDelco PF13CL ACDelco PF2CL ACDelco PF13 ACDelco PF53CL ACDelco PF2 ACDelco PF1781 ACDelco PF20 ACDelco PF53FCL ACDelco PF53 ACDelco PF13FCL ACDelco PF2FCL Alfa Romeo 60574554 Alliance Truck Parts ABP/N10G-LF3335 Amsoil EA15K01 Amsoil EAO57 Amsoil EA15K57 Amsoil EAO33 Amsoil ASF57 Amsoil EA15K51 Amsoil EAO58 Amsoil EAOM134 Argo 12695 Atlas M-54 Auto Extra 61851348 Autopar - Archived FE259 Autopar - Archived FE213 Autopro 2348 Baldwin B7020 Baldwin BT223 Baldwin B1405 Baldwin BT8409 Baldwin B1430 Beck/Arnley 041-8097 Beck/Arnley 041-8077 Beck/Arnley 041-8162 Big A 92335 Big A 92348 Big A 92269 Bosch D3330 Bosch 3330 Bosch 72161 Bravo B241 Briggs & Stratton 491056 Briggs & Stratton 491056S Bukh Engines 610J0050 Bunton BPL6006 Cam2 C241 Cam2 CF494 Canada Tire 17-1748-8 Car Care IOF3614 Carquest 85348 Carquest 85374 Carquest R85348 Carquest 85335 Carquest R85348MP Carquest Premium Filters 85348 Case 87409203 Case IH 87409203 Casite Filters CF589 Casite Filters CF494 Casite Filters CF655 Casite Filters CF2951 Casite Filters CF3614 Castrol CAS3614 Caterpillar 220-1523 Cenex CO2835 Certified CPH3614 Champ PH2835XL Champ LF525 Champ PH2835 Champion COS3816 Champion 41374T Champion OF10 Champion PH2835 Champion COS3614 Champion 41348T Champion Filters 41374T Champion Filters COS3816 Champion Filters COS3614 Champion Filters OF10 Champion Filters 41348T Chrysler 4105409AB Chrysler 2647020 Chrysler 4105409 Chrysler 4273810 Chrysler 4105409AC Citgo Petroleum C241 Clark Filters 6513601 Clark Filters 6513501 Cruisemaster 224 Cummins C600-211-2110 Defense Filters DL3614 Defense Filters DL9566 Delphi FX1017 DENSO 115010-2191 DENSO 150-1002 DENSO 115310-0261 DENSO 150-1003 Deutsch D366 Distance Plus D3330 Donaldson P550335 Donaldson P502016 Donaldson P550589 Driveworks DW-241 Dynalife CN-3614 ECOGARD S241 ECOGARD X241 ECOGARD X10185 Econo-lube L10241 Evergard E2835 Evinrude 5031411 Facet Industrial 335 FERGUSON R1348 Filters Inc OF3614 Firestone TF-335 Firestone TF335 Flag C-3614 Fleetguard LF3376 Fleetguard HF28783 Fleetguard LF3874 Fleetguard LF3335 Fleetguard LF16011 Fleetguard LF3460 Fleetrite LFR-83460 Fleetrite LFR-83335 Ford BE8Z-6731-AB Ford 1S7Z-6731-DA Ford 1S7Z-6714-DA Ford 1S7G-6714-DA FRAM PH7575 FRAM XG3614 FRAM Core COR3614ACC FRAM Drive FD3614 FRAM Force FF3614 FRAM Pro FP3614BP FRAM Synthetic Endurance FE3614 FRAM Titanium FS3614 FRAM Tough Guard TG3614 Fuller- Transmissions 4304827 FVP R1348 Gehl 361 Gehl 000361 General Motors 19161275 General Motors 25014441 General Motors 19160689 General Motors 96058042 General Motors 25011520 General Motors 88969580 General Motors 19160690 General Motors 94840078 General Motors 21000872 General Motors 19161274 General Motors 89060498 General Motors 89060466 Girling F6618 Girling F6587 Girling F6515 Gonher GP58 Gonher GP58M Goodyear L335 Goodyear 222-4522 Grand Prix PH2835 Grease Monkey GM10241 Grease Monkey GM335 Group 7 V241 Gulf GF-224 Hastings BT8409 Hastings LF563F Hastings LF589 Hastings LF494 Hastings LF157 Hastings LF589F Hastings LF655 Hastings LF550 Hastings HF1000 Hastings B7020 Hastings LF494F Hastings LF157F Hastings LF563 Havoline T-29 IAPCO OF935 IAPCO A-0211-001 IAPCO OF36 IAPCO OF2 Ingersoll Rand C25042 Ingersoll Rand C25402 Ingersoll Rand C26191 Installer Edge ML3614 Installer Edge AL3614 IPD 10130 ITM 111-9802 ITM 111-9700 ITM 111-7600 ITM 11-11400 ITM 111-0103 ITM 11-17600 ITM 11-11516 ITM 11-19700 ITM 11-10103 ITM Autoparts 11-11400 ITM Autoparts 111-7600 ITM Autoparts 11-19700 ITM Autoparts 111-9700 ITM Autoparts 111-9802 ITM Autoparts 11-11516 ITM Autoparts 11-17600 ITM Autoparts 11-10103 ITM Autoparts 111-0103 Jaguar C2Z 21964 Jiffy Lube HL3614 Jiffy Lube L10241 Jiffy Lube JL241 John Deere TY11592E John Deere AE28914 John Deere HE1220800 John Deere AT1220338 John Deere TY15592 Johnson Manufacturing 5031411 K Mart MP-16 K Mart K-16 K&N PS-1002 K&N HP-1002 Kendall K17 Koehler 52 050 02 Koehler 52 050 02S Kohler 52 050 02 Kohler 52 050 02S Komatsu 600-211-2110 Kralinator L127 Kubota 70000-36160 Land Rover LR096524 Land Rover LR025306 Lazorlite L11-1805 Lazorlite L11-1350 Lee LF-2835 Lee LF-2835HP Letourneau PH2835 LUBER-FINER PH2835 Magneti Marelli 1AMFL00004 MAHLE OC977/1 MAHLE OC981 MAHLE OC338 MAHLE OC1063 Mann-Filter W920/80 Mann-Filter W811/81 Mann-Filter W712/38 Mann-Filter W711/80 Mann-Filter W712/80 Mann-Filter W712/43 Mann-Filter ML 1003 Mann-Filter W712/37 Marathon PH2835 Master Parts PH-2835 Mazda LF05-14-302A Mazda LFY1-14-302 Mazda LF05-14-302B Mazda LF10-14-302 Mazda SH01-14-302A Mazda LF10-14-302A Melroe Bobcat 6652366 Mercury 35-822626T7 MicroGard MGL3614 MicroGard MGL51348 Mighty Distributing System M3614 Mighty Distributing System T3614SP Mileguard MO3614 Minit-Lube PH2821 Mobil L35098 Mobil MO241 Mobil M0241 Mobil 1 M1MC-131 Mobil 1 M1-102A Mobil 1 M1-102 Mopar MO-409 Mopar L-335 MotoMaster MPH3614 Motorcraft FL-2057 Motorcraft FL-910 Motorcraft FL-793 Motorcraft FL-910S MPA 2818 MPA 2050 NAPA 1374 NAPA 1269 NAPA 1348 NAPA Gold Filters 1348 NAPA Platinum Filters 41348 NAPA Proformer 21348 New Holland Agriculture 87415600 New Holland Agriculture 507107 New Holland Agriculture SBA140517020 New Holland Agriculture 84475542 OE+ OF-830 OE+ OF-530 OE+ OF-550 OMC 5031411 OMC 778885 One Performance 122-0679 One Performance 122-0800 One Performance 122-0406 One Performance 122-0645 Parts Master 61215 Parts Master 61391 Parts Master 61348 Parts Master 61348X Parts Plus PH2835 Pennzoil PZ21BP Pennzoil PZ21 Pennzoil HPZ-21 Pennzoil PZ-21 Pentius PLB3614 Performax PO-21 Perkins 140517000 Petter Diesel 201-55370 Phillips 66 PO241 Pit Stop PSL17 Polaris 2521728 Power Flo SL10241 Power Flo SL10017 Power Flo SL20252 Precision Tune OF-161 Premium Guard PG241 Prime Guard Filters - Archived POF241 Professionals Choice - Archived Q241 Pro-Gauge PGO-241 Promotive PH241 Pronto PO-241 Pronto PO-3614 Pro-Tec 130 PureZone 8-51348 Purolator L35098 Purolator PSL10241 Purolator L10241 Purolator BOSS PBL10241 Purolator PureONE PL10241 Purolator TECH TL10241 PurolatorONE PL10241 Quaker State QS3614BLK Quaker State L35098 Quaker State QS3614 Rockhill 61348 Saab 30 54 8485 Saab 91 44 445 Saab 93 18 6554 Sears 45205 Security Filters SO241 Service Champ POF241 Service Champ OF241 Service Pro M241 Shell - Archived SH29 Shell - Archived L35098 Sieg OS3614 Sierra 18-7915 Sierra 18-7884 Silverline 21348 STP S3614XL STP S3614ML STP Filters S3614 STP Filters S3614XL STP Filters S3614ML Sunoco O-21 Super Tech Filters ST3614 Suzuki 16510-60B11 Suzuki 16510-61A00 Suzuki 16510-87J00 Suzuki 16510-60B01 Suzuki 16510-60B10 Tough Guard TG3614 Toyota 32623-12620-71 Toyota 90915-TB001 Toyota 90915-20004 Toyota 90915-YZZG1 Toyota 15600-41010 Toyota C0120-00015 Toyota 90915-20003 Toyota 15601-13051 Toyota 90915-YZZG2 Toyota 90915-20002 Toyota 90915-YZZD1 Toyota 90915-03002 Toyota 90915-YZZA1 Toyota 08922-02011 Toyota 90915-YZZD3 Toyota 32670-12620-71 Toyota 90915-YZZB9 Toyota 00120-00012 Toyota 08922-02010 Toyota 90915-03005 Toyota 90915-YZZB5 Toyota 08922-02004 Toyota 90915-20001 Trust PH2835 Universal 299381 Unocal 76 PF2835 Unocal 76 PF9A Valucraft V3614 Valu-test 42143 Valu-test V2348 Valvoline VO-25BP Valvoline VO-25 Vera 10-01402 Vera 10-01337 Vera 10-01352 Vera 10-50389 VIC C111 VIPER 3614 Volkswagen 04E 115 561T Volkswagen 04E 115 561AC Volkswagen 04E 115 561B Volkswagen 04E 115 561H Volkswagen 7B0 115 561 Volkswagen 030 115 561F Volvo 834337 Volvo 834337-8 WALMI WS-3614 Warner Filters PH2835 Web W3682 Web W3614 Western Auto 74-5884-7 White 33-0083836 Wix 57023 Wix 51785 Wix 51762 Wix 51348XP Wix 57000 Wix 57181 Wix 51348 Yamaha 69J-13440-00-00 Yamaha 69J-13440-03-00 Yamaha 69J-13440-01-00 Yugo 46624209 Yugo 46620004 Zinga BE10-18 - Installation
- Use proper protective gear. Used motor oil should not come in contact with bare skin. Engine oil may be hot.
- Place a drain pan under the oil filter and unscrew oil filter.
- Clean mounting base making sure the O-ring from the old filter is not stuck to the filter mount.
- Apply film of clean oil to filter gasket. Do not use grease.
- Screw new filter on until gasket reaches base contact. Then tighten according to instructions on filter using tightening guide markers.
- Check owner’s manual for correct oil specification viscosity and amount.
- Add oil to “full” on dipstick. Idle engine for 5 minutes and check for leaks.
- Shut off engine and recheck oil level after 5 minutes and top off as necessary.
