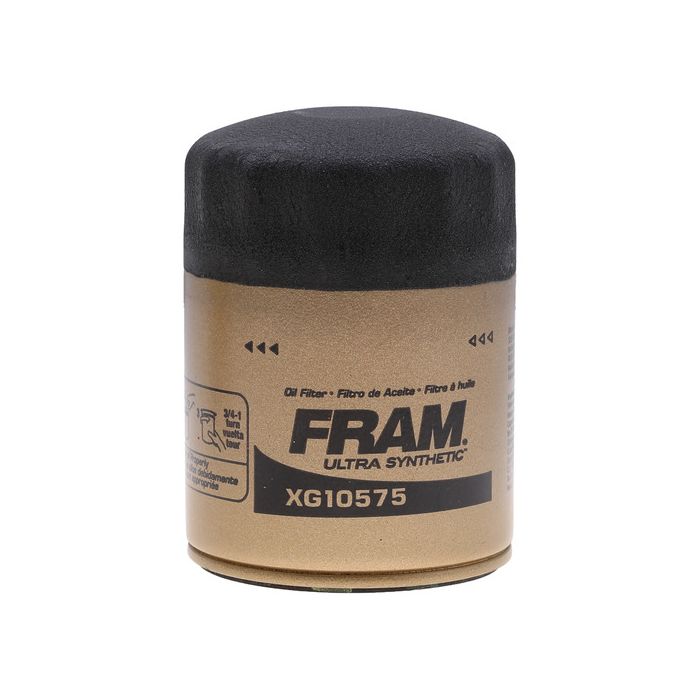

FRAM Ultra Synthetic® Oil Filter
SKU
XG10575
| Height (Inch) | 4.060 |
|---|---|
| Outside Diameter (Inch) | 2.984 |
| Anti-Drain Back Valve | Yes |
| Bypass Relief Valve | Yes |
| Gasket Inside Diameter (Inch) | 2.467 |
| Gasket Outside Diameter (Inch) | 2.620 |
| Gasket Thickness (Inch) | 0.186 |
| Gasket Type | Base |
| Attachment Type | Spin-On |
| Burst Pressure (Pounds per Square Inch) | 310.000 |
| Bypass Relief Valve Setting (Pounds per Square Inch) | 16-28 |
| Filter Media Material | Synthetic |
| Inlet Type | Threaded |
| Inside Thread Diameter (Millimeter) | M22x1.5 |
| Thread Size | Metric |
| Torque Nut | No |
Where To Shop
Search
Search
- Description
FRAM Ultra Synthetic® oil filters are engineered for drivers who are looking for ultimate performance and engine protection. Its dual-layered synthetic blend media provides 99%+ filtering efficiency and protects up to 20,000 miles (32,000 kilometers). The silicone anti-drain back valve ensures safe engine startups, extending the life of the oil filter. FRAM Ultra Synthetic is equipped with SureGrip® technology that provides a non-slip surface allowing for easy install and removal.
- Proven protection for up to 20,000 miles (32,000 kilometers)
- SureGrip® technology for easy install and removal
- Silicone anti-drain back valve helps ensure safe engine start up
- Dual-layered synthetic blend media provides 99%+ filtration efficiency*
- Optimized for synthetic motor oil
*FRAM Group testing of average filter efficiency of XG8A, XG3387A and XG4967 under ISO 4548-12 for particles greater than 20 microns.
**FRAM Group mulitpass testing of representative sampling of average filter capacity of comparable competitive retail products based on ISO4548-12 for XG8A and XG3387A.
***Greater than 3X the functional life of Nitrile ADB when tested per SAE HS806 hot oil and Anti-drain-back test.
+ FRAM Group testing per USCAR-36 Low Temperature Leakage test after hot oil, when compared to standard nitrile gasket.
?Not all features are available on every part number in the product line. Check the package for specific features of individual filters.
- Applications
This Item Fits the Following Vehicles:
Year Make Model Engine 24-11 BUICK ENCLAVE V6-3.6L 19-11 BUICK LACROSSE V6-3.6L 20-18 BUICK REGAL SPORTBACK V6-3.6L 19-16 CADILLAC ATS V6-3.6L 25-22 CADILLAC CT4 V6-3.6L 25-20 CADILLAC CT5 V6-3.0L 19-16 CADILLAC CT6 V6-3.0L 20-16 CADILLAC CT6 V6-3.6L 20-19 CADILLAC CT6 V8-4.2L 19-14 CADILLAC CTS V6-3.6L 25-15 CADILLAC ESCALADE V8-6.2L 25-15 CADILLAC ESCALADE ESV V8-6.2L 2011 CADILLAC SRX V6-3.0L 16-12 CADILLAC SRX V6-3.6L 25-17 CADILLAC XT5 V6-3.6L 25-20 CADILLAC XT6 V6-3.6L 19-13 CADILLAC XTS V6-3.6L 25-19 CHEVROLET BLAZER V6-3.6L 24-16 CHEVROLET CAMARO V6-3.6L 2011 CHEVROLET CAPTIVA SPORT V6-3.0L 2013 CHEVROLET CAPTIVA SPORT V6-3.0L 12-11 CHEVROLET EQUINOX V6-3.0L 17-13 CHEVROLET EQUINOX V6-3.6L 25-18 CHEVROLET EXPRESS 2500 V6-4.3L 25-21 CHEVROLET EXPRESS 2500 V8-6.6L 25-18 CHEVROLET EXPRESS 3500 V6-4.3L 25-21 CHEVROLET EXPRESS 3500 V8-6.6L 25-21 CHEVROLET EXPRESS 4500 V8-6.6L 20-13 CHEVROLET IMPALA V6-3.6L 2016 CHEVROLET IMPALA LIMITED V6-3.6L 23-20 CHEVROLET LCF 3500 V8-6.6L 25-24 CHEVROLET LCF 3500HG V8-6.6L 22-20 CHEVROLET LCF 4500 V8-6.6L 21-14 CHEVROLET SILVERADO 1500 V6-4.3L 25-14 CHEVROLET SILVERADO 1500 V8-5.3L 25-14 CHEVROLET SILVERADO 1500 V8-6.2L 2019 CHEVROLET SILVERADO 1500 LD V8-5.3L 2022 CHEVROLET SILVERADO 1500 LTD V8-5.3L 2022 CHEVROLET SILVERADO 1500 LTD V8-6.2L 25-20 CHEVROLET SILVERADO 2500 HD V8-6.6L 25-20 CHEVROLET SILVERADO 3500 HD V8-6.6L 25-15 CHEVROLET SUBURBAN V8-5.3L 25-19 CHEVROLET SUBURBAN V8-6.2L 25-15 CHEVROLET TAHOE V8-5.3L 25-18 CHEVROLET TAHOE V8-6.2L 23-11 CHEVROLET TRAVERSE V6-3.6L 2024 CHEVROLET TRAVERSE LIMITED V6-3.6L 18-09 FORD EDGE V6-3.5L 14-11 FORD EDGE V6-3.7L 12-09 FORD ESCAPE V6-3.0L 25-15 FORD EXPEDITION V6-3.5L 23-20 FORD EXPLORER V6-3.3L 19-11 FORD EXPLORER V6-3.5L 23-18 FORD F-150 V6-3.3L 25-11 FORD F-150 V6-3.5L 14-11 FORD F-150 V6-3.7L 25-11 FORD F-150 V8-5.0L 25-23 FORD F-150 V8-5.2L 19-09 FORD FLEX V6-3.5L 12-09 FORD FUSION V6-3.0L 12-10 FORD FUSION V6-3.5L 17-11 FORD MUSTANG V6-3.7L 25-11 FORD MUSTANG V8-5.0L 19-13 FORD POLICE INTERCEPTOR SEDAN V6-3.5L 19-13 FORD POLICE INTERCEPTOR SEDAN V6-3.7L 25-20 FORD POLICE INTERCEPTOR UTILITY V6-3.3L 19-14 FORD POLICE INTERCEPTOR UTILITY V6-3.5L 19-13 FORD POLICE INTERCEPTOR UTILITY V6-3.7L 19-09 FORD TAURUS V6-3.5L 2009 FORD TAURUS X V6-3.5L 18-15 FORD TRANSIT V6-3.7L 19-15 FORD TRANSIT-150 L5-3.2L 25-15 FORD TRANSIT-150 V6-3.5L 19-15 FORD TRANSIT-150 V6-3.7L 19-15 FORD TRANSIT-250 L5-3.2L 25-15 FORD TRANSIT-250 V6-3.5L 19-15 FORD TRANSIT-250 V6-3.7L 19-15 FORD TRANSIT-350 L5-3.2L 25-15 FORD TRANSIT-350 V6-3.5L 19-15 FORD TRANSIT-350 V6-3.7L 19-15 FORD TRANSIT-350 HD L5-3.2L 25-15 FORD TRANSIT-350 HD V6-3.5L 19-15 FORD TRANSIT-350 HD V6-3.7L 23-11 GMC ACADIA V6-3.6L 2017 GMC ACADIA LIMITED V6-3.6L 25-18 GMC SAVANA 2500 V6-4.3L 25-21 GMC SAVANA 2500 V8-6.6L 25-18 GMC SAVANA 3500 V6-4.3L 25-21 GMC SAVANA 3500 V8-6.6L 23-21 GMC SAVANA 4500 V8-6.6L 21-14 GMC SIERRA 1500 V6-4.3L 25-14 GMC SIERRA 1500 V8-5.3L 25-14 GMC SIERRA 1500 V8-6.2L 2019 GMC SIERRA 1500 LIMITED V8-5.3L 2022 GMC SIERRA 1500 LIMITED V8-5.3L 2022 GMC SIERRA 1500 LIMITED V8-6.2L 25-20 GMC SIERRA 2500 HD V8-6.6L 25-20 GMC SIERRA 3500 HD V8-6.6L 12-10 GMC TERRAIN V6-3.0L 17-13 GMC TERRAIN V6-3.6L 25-15 GMC YUKON V8-5.3L 25-15 GMC YUKON V8-6.2L 25-15 GMC YUKON XL V8-5.3L 25-15 GMC YUKON XL V8-6.2L 22-20 ISUZU NPR-HD V8-6.6L 25-22 JEEP GRAND WAGONEER L6-3.0L 25-24 JEEP GRAND WAGONEER L L6-3.0L 20-17 LINCOLN CONTINENTAL V6-3.7L 16-10 LINCOLN MKS V6-3.5L 16-09 LINCOLN MKS V6-3.7L 19-10 LINCOLN MKT V6-3.5L 19-10 LINCOLN MKT V6-3.7L 10-09 LINCOLN MKX V6-3.5L 18-11 LINCOLN MKX V6-3.7L 12-09 LINCOLN MKZ V6-3.5L 16-13 LINCOLN MKZ V6-3.7L 25-15 LINCOLN NAVIGATOR V6-3.5L 11-09 MERCURY MARINER V6-3.0L 11-09 MERCURY MILAN V6-3.0L 2009 MERCURY SABLE V6-3.5L 2025 RAM 1500 L6-3.0L - Comparison
COMPETITOR NAME COMPETITOR PART # ACDelco PF63E ACDelco PF63 Amsoil EAO17 Amsoil EAO18 Baldwin B7449 Beck/Arnley 041-0843 Bosch D3334 Carquest R84502 Carquest R84045 Carquest R84502MP Carquest R84045MP Carquest Premium Filters 84502 Casite Filters CF641 Casite Filters CF637 Casite Filters CF10575 Castrol CAS10060 Certified CPH10575 Champ PH500 Champ PH500XL Champ PH2055 Champ PH10063 Champion 47502T Champion COS10575 Champion COS10590 Champion Filters COS10575 Champion Filters COS10590 Champion Filters 47502T Chrysler 5184231AA Defense Filters DL10575 Driveworks DW-2500 ECOGARD S2500 ECOGARD X2500 FERGUSON R7502 Firestone PH500 Ford BU2Z-6731-A Ford AA5Z-6714-A FRAM XG10575 FRAM Core COR12060ACC FRAM Drive FD10575 FRAM Force FF10575 FRAM Pro FP12060BP FRAM Racing HP19 FRAM Synthetic Endurance FE10575 FRAM Titanium FS10575 FRAM Tough Guard TG10575 FVP R7502 General Motors 12707246 General Motors 19330000 General Motors 12690385 General Motors 89017525 Group 7 V2500 Hastings LF641F Hastings LF637 Hastings LF637F Hastings LF641 K&N PS-2011 K&N HP-2011 LUBER-FINER PH2055 LUBER-FINER PH500 LUBER-FINER PH10063 Magneti Marelli 1AMFL00006 MAHLE OC1047 Mazda ZZC4-23-802 Mazda 100255 MicroGard MGL57502 MicroGard MGL10575 MicroGard MGL10255 Mighty Distributing System M500SP Mighty Distributing System M9513SP Mileguard MO10060 Mobil MO500 Mobil PH500 Mobil MO2222 Mobil 1 M1-212 Mobil 1 M1-212A MotoMaster MPH10575 Motorcraft FL-500S Motorcraft FL-2055 NAPA 100255 NAPA 7502 NAPA Gold Filters 7502 NAPA Platinum Filters 47502 NAPA ProSelect Filters 27502 NAPA ProSelect Filters 27502MP NAPA ProSelect Filters 2100255 NAPA Silver Filters 37502 Parts Master 67502BP Parts Master WL610255 Parts Master 67045BP Parts Master 67045 Parts Master 67060X Parts Master WL610255X Parts Master 67502 Pennzoil PZ-173 Pennzoil PZ173 Pennzoil PZ173BP Pennzoil HPZ-173 Pentius PLB10575 Performax PO-173 Premium Guard PG2500 Promotive PH2500 Promotive PH2500BP Pronto PO-2500 PureZone 8-57502 Purolator L22500 Purolator PSL22500 Purolator BOSS PBL22500 Purolator PureONE PL22500 Purolator TECH TL22500 PurolatorONE PL22500 Quaker State QS173 STP S10590 STP S10590XL STP S10590ML STP Filters S10590ML STP Filters S10590XL STP Filters S10590 Super Tech Filters ST10086 SUPERTECH ST10086 Tough Guard TG10575 Ultra XG10575 Valvoline VO-88 Wix 57502 Wix WL10255 Wix 67045 Wix WL10255XP Wix 57502XP - Installation
- Use proper protective gear. Used motor oil should not come in contact with bare skin. Engine oil may be hot.
- Place a drain pan under the oil filter and unscrew oil filter.
- Clean mounting base making sure the O-ring from the old filter is not stuck to the filter mount.
- Apply film of clean oil to filter gasket. Do not use grease.
- Screw new filter on until gasket reaches base contact. Then tighten according to instructions on filter using tightening guide markers.
- Check owner’s manual for correct oil specification viscosity and amount.
- Add oil to “full” on dipstick. Idle engine for 5 minutes and check for leaks.
- Shut off engine and recheck oil level after 5 minutes and top off as necessary.
