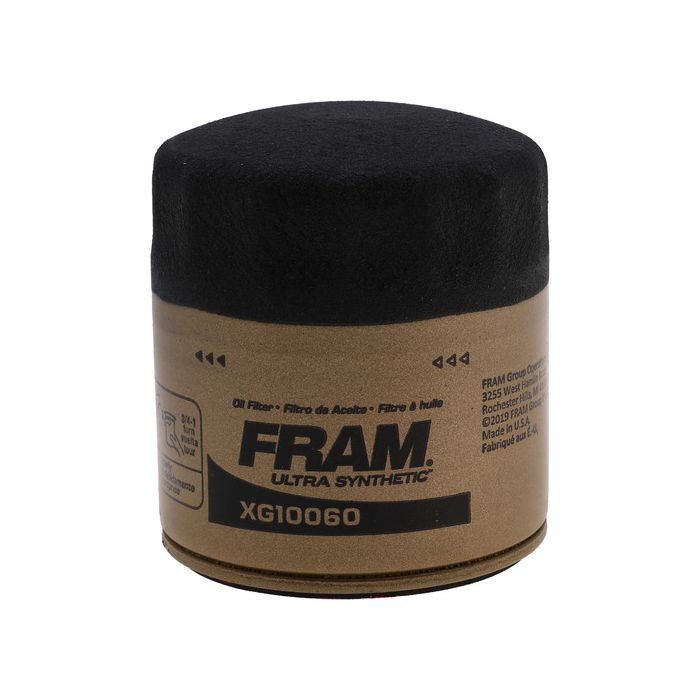

FRAM Ultra Synthetic® Oil Filter
SKU
XG10060
| Height (Inch) | 3.330 |
|---|---|
| Outside Diameter (Inch) | 3.000 |
| Anti-Drain Back Valve | Yes |
| Bypass Relief Valve | Yes |
| Gasket Inside Diameter (Inch) | 2.450 |
| Gasket Outside Diameter (Inch) | 2.760 |
| Gasket Thickness (Inch) | 0.191 |
| Gasket Type | Cover |
| Attachment Type | Spin-On |
| Burst Pressure (Pounds per Square Inch) | 310.000 |
| Bypass Relief Valve Setting (Pounds per Square Inch) | 9-15 |
| Filter Media Material | Synthetic |
| Inlet Type | Threaded |
| Inside Thread Diameter (Millimeter) | M22x1.5 |
| Thread Size | Metric |
| Torque Nut | No |
Where To Shop
Search
Search
- Description
FRAM Ultra Synthetic® oil filters are engineered for drivers who are looking for ultimate performance and engine protection. Its dual-layered synthetic blend media provides 99%+ filtering efficiency and protects up to 20,000 miles (32,000 kilometers). The silicone anti-drain back valve ensures safe engine startups, extending the life of the oil filter. FRAM Ultra Synthetic is equipped with SureGrip® technology that provides a non-slip surface allowing for easy install and removal.
- Proven protection for up to 20,000 miles (32,000 kilometers)
- SureGrip® technology for easy install and removal
- Silicone anti-drain back valve helps ensure safe engine start up
- Dual-layered synthetic blend media provides 99%+ filtration efficiency*
- Optimized for synthetic motor oil
*FRAM Group testing of average filter efficiency of XG8A, XG3387A and XG4967 under ISO 4548-12 for particles greater than 20 microns.
**FRAM Group mulitpass testing of representative sampling of average filter capacity of comparable competitive retail products based on ISO4548-12 for XG8A and XG3387A.
***Greater than 3X the functional life of Nitrile ADB when tested per SAE HS806 hot oil and Anti-drain-back test.
+ FRAM Group testing per USCAR-36 Low Temperature Leakage test after hot oil, when compared to standard nitrile gasket.
?Not all features are available on every part number in the product line. Check the package for specific features of individual filters.
- Applications
This Item Fits the Following Vehicles:
Year Make Model Engine 25-17 ALFA ROMEO GIULIA L4-2.0L 25-18 ALFA ROMEO STELVIO L4-2.0L 2010 BUICK ALLURE V6-3.0L 2008 BUICK ALLURE V6-3.6L 2010 BUICK ALLURE V6-3.6L 09-08 BUICK ALLURE V8-5.3L 10-08 BUICK ENCLAVE V6-3.6L 2010 BUICK LACROSSE V6-3.0L 2008 BUICK LACROSSE V6-3.6L 2010 BUICK LACROSSE V6-3.6L 09-08 BUICK LACROSSE V8-5.3L 2007 BUICK RAINIER V8-5.3L 2007 CADILLAC CTS V8-6.0L 15-09 CADILLAC CTS V8-6.2L 13-09 CADILLAC ESCALADE V8-6.0L 14-07 CADILLAC ESCALADE V8-6.2L 14-07 CADILLAC ESCALADE ESV V8-6.2L 13-07 CADILLAC ESCALADE EXT V8-6.2L 2010 CADILLAC SRX V6-3.0L 19-17 CADILLAC XTS V6-3.6L 13-07 CHEVROLET AVALANCHE V8-5.3L 09-07 CHEVROLET AVALANCHE V8-6.0L 15-10 CHEVROLET CAMARO V8-6.2L 15-14 CHEVROLET CAMARO V8-7.0L 17-11 CHEVROLET CAPRICE V8-6.0L 2008 CHEVROLET CAPTIVA SPORT V6-3.6L 12-09 CHEVROLET COLORADO V8-5.3L 2007 CHEVROLET CORVETTE V8-6.0L 13-08 CHEVROLET CORVETTE V8-6.2L 13-06 CHEVROLET CORVETTE V8-7.0L 2010 CHEVROLET EQUINOX V6-3.0L 09-08 CHEVROLET EQUINOX V6-3.6L 14-07 CHEVROLET EXPRESS 1500 V8-5.3L 17-07 CHEVROLET EXPRESS 2500 V8-4.8L 20-07 CHEVROLET EXPRESS 2500 V8-6.0L 17-07 CHEVROLET EXPRESS 3500 V8-4.8L 20-07 CHEVROLET EXPRESS 3500 V8-6.0L 20-09 CHEVROLET EXPRESS 4500 V8-6.0L 2012 CHEVROLET IMPALA V6-3.6L 09-07 CHEVROLET IMPALA V8-5.3L 2016 CHEVROLET IMPALA LIMITED V6-3.6L 18-16 CHEVROLET LCF 3500 V8-6.0L 19-16 CHEVROLET LCF 4500 V8-6.0L 12-08 CHEVROLET MALIBU V6-3.6L 2007 CHEVROLET MONTE CARLO V8-5.3L 13-07 CHEVROLET SILVERADO 1500 V8-4.8L 13-07 CHEVROLET SILVERADO 1500 V8-5.3L 13-07 CHEVROLET SILVERADO 1500 V8-6.0L 13-09 CHEVROLET SILVERADO 1500 V8-6.2L 2007 CHEVROLET SILVERADO 1500 CLASSIC V8-4.8L 2007 CHEVROLET SILVERADO 1500 CLASSIC V8-5.3L 2007 CHEVROLET SILVERADO 1500 CLASSIC V8-6.0L 2007 CHEVROLET SILVERADO 1500 HD CLASSIC V8-6.0L 2014 CHEVROLET SILVERADO 2500 V8-5.3L 19-07 CHEVROLET SILVERADO 2500 HD V8-6.0L 2007 CHEVROLET SILVERADO 2500 HD CLASSIC V8-6.0L 2007 CHEVROLET SILVERADO 3500 CLASSIC V8-6.0L 19-07 CHEVROLET SILVERADO 3500 HD V8-6.0L 17-14 CHEVROLET SS V8-6.2L 14-07 CHEVROLET SUBURBAN 1500 V8-5.3L 09-07 CHEVROLET SUBURBAN 1500 V8-6.0L 13-07 CHEVROLET SUBURBAN 2500 V8-6.0L 19-16 CHEVROLET SUBURBAN 3500 HD V8-6.0L 09-07 CHEVROLET TAHOE V8-4.8L 14-07 CHEVROLET TAHOE V8-5.3L 13-08 CHEVROLET TAHOE V8-6.0L 09-08 CHEVROLET TAHOE V8-6.2L 08-07 CHEVROLET TRAILBLAZER V8-5.3L 09-07 CHEVROLET TRAILBLAZER V8-6.0L 10-09 CHEVROLET TRAVERSE V6-3.6L 17-11 CHRYSLER 200 L4-2.4L 10-09 CHRYSLER 300 V6-2.7L 2010 CHRYSLER 300 V6-3.5L 23-17 CHRYSLER 300 V8-5.7L 10-07 CHRYSLER CIRRUS L4-2.4L 10-07 CHRYSLER SEBRING L4-2.4L 2010 CHRYSLER SEBRING V6-2.7L 10-09 CHRYSLER SEBRING V6-3.5L 10-09 CHRYSLER TOWN & COUNTRY V6-4.0L 14-08 DODGE AVENGER L4-2.4L 2010 DODGE AVENGER V6-2.7L 2010 DODGE AVENGER V6-3.5L 09-07 DODGE CALIBER L4-1.8L 12-07 DODGE CALIBER L4-2.0L 11-07 DODGE CALIBER L4-2.4L 10-09 DODGE CHALLENGER V6-3.5L 23-16 DODGE CHALLENGER V8-5.7L 10-09 DODGE CHARGER V6-2.7L 2010 DODGE CHARGER V6-3.5L 23-17 DODGE CHARGER V8-5.7L 10-09 DODGE DAKOTA V6-3.7L 16-13 DODGE DART L4-2.0L 16-13 DODGE DART L4-2.4L 2009 DODGE DURANGO V6-3.7L 25-15 DODGE DURANGO V8-5.7L 10-09 DODGE GRAND CARAVAN V6-4.0L 25-23 DODGE HORNET L4-2.0L 20-09 DODGE JOURNEY L4-2.4L 10-09 DODGE JOURNEY V6-3.5L 11-09 DODGE NITRO V6-3.7L 11-09 DODGE NITRO V6-4.0L 10-09 DODGE RAM 1500 V6-3.7L 18-16 FIAT 500X L4-2.4L 10-07 GMC ACADIA V6-3.6L 12-09 GMC CANYON V8-5.3L 09-07 GMC ENVOY V8-5.3L 14-07 GMC SAVANA 1500 V8-5.3L 17-07 GMC SAVANA 2500 V8-4.8L 20-07 GMC SAVANA 2500 V8-6.0L 17-07 GMC SAVANA 3500 V8-4.8L 20-07 GMC SAVANA 3500 V8-6.0L 19-09 GMC SAVANA 4500 V8-6.0L 13-07 GMC SIERRA 1500 V8-4.8L 13-07 GMC SIERRA 1500 V8-5.3L 13-07 GMC SIERRA 1500 V8-6.0L 13-07 GMC SIERRA 1500 V8-6.2L 2007 GMC SIERRA 1500 CLASSIC V8-4.8L 2007 GMC SIERRA 1500 CLASSIC V8-5.3L 2007 GMC SIERRA 1500 CLASSIC V8-6.0L 2007 GMC SIERRA 1500 HD CLASSIC V8-6.0L 19-07 GMC SIERRA 2500 HD V8-6.0L 2007 GMC SIERRA 2500 HD CLASSIC V8-6.0L 2007 GMC SIERRA 3500 CLASSIC V8-6.0L 19-07 GMC SIERRA 3500 HD V8-6.0L 2007 GMC W3500 FORWARD V8-6.0L 09-07 GMC YUKON V8-4.8L 14-07 GMC YUKON V8-5.3L 13-08 GMC YUKON V8-6.0L 14-07 GMC YUKON V8-6.2L 14-07 GMC YUKON XL 1500 V8-5.3L 09-07 GMC YUKON XL 1500 V8-6.0L 14-07 GMC YUKON XL 1500 V8-6.2L 13-07 GMC YUKON XL 2500 V8-6.0L 2007 HUMMER H2 V8-6.0L 09-08 HUMMER H2 V8-6.2L 10-08 HUMMER H3 V8-5.3L 10-09 HUMMER H3T V8-5.3L 20-16 ISUZU NPR-HD V8-6.0L 2022 ISUZU NQR V8-6.0L 2022 ISUZU NRR V8-6.0L 23-19 JEEP CHEROKEE L4-2.0L 23-14 JEEP CHEROKEE L4-2.4L 10-09 JEEP COMMANDER V6-3.7L 17-07 JEEP COMPASS L4-2.0L 25-23 JEEP COMPASS L4-2.0L 22-07 JEEP COMPASS L4-2.4L 25-22 JEEP GRAND CHEROKEE L4-2.0L 10-09 JEEP GRAND CHEROKEE V6-3.7L 23-14 JEEP GRAND CHEROKEE V8-5.7L 23-21 JEEP GRAND CHEROKEE L V8-5.7L 23-22 JEEP GRAND WAGONEER V8-6.4L 2023 JEEP GRAND WAGONEER L L6-3.0L 12-08 JEEP LIBERTY V6-3.7L 17-07 JEEP PATRIOT L4-2.0L 17-07 JEEP PATRIOT L4-2.4L 21-15 JEEP RENEGADE L4-2.4L 25-23 JEEP WAGONEER L6-3.0L 23-22 JEEP WAGONEER V8-5.7L 25-23 JEEP WAGONEER L L6-3.0L 25-18 JEEP WRANGLER L4-2.0L 24-21 JEEP WRANGLER V8-6.4L 11-09 MAZDA TRIBUTE V6-3.0L 2009 MITSUBISHI RAIDER V6-3.7L 17-15 MOBILITY VENTURES MV-1 V6-3.7L 09-07 PONTIAC G6 V6-3.6L 09-08 PONTIAC G8 V8-6.0L 2009 PONTIAC G8 V8-6.2L 08-07 PONTIAC GRAND PRIX V8-5.3L 09-08 PONTIAC TORRENT V6-3.6L 12-11 RAM 1500 V6-3.7L 24-13 RAM 1500 V8-5.7L 24-19 RAM 1500 CLASSIC V8-5.7L 18-13 RAM 2500 V8-5.7L 25-14 RAM 2500 V8-6.4L 18-11 RAM 3500 V8-5.7L 25-14 RAM 3500 V8-6.4L 23-14 RAM 4500 V8-6.4L 24-14 RAM 5500 V8-6.4L 2011 RAM DAKOTA V6-3.7L 22-15 RAM PROMASTER CITY L4-2.4L 2011 SAAB 9-4X V6-3.0L 09-07 SAAB 9-7X V8-5.3L 09-08 SAAB 9-7X V8-6.0L 09-07 SATURN AURA V6-3.6L 10-07 SATURN OUTLOOK V6-3.6L 10-08 SATURN VUE V6-3.6L 10-09 SUZUKI GRAND VITARA V6-3.2L 09-07 SUZUKI XL-7 V6-3.6L 10-09 VOLKSWAGEN ROUTAN V6-4.0L - Comparison
COMPETITOR NAME COMPETITOR PART # ACDelco PF48 ACDelco PF48E Amsoil EAO47 Amsoil EA15K50 Auto Extra 61857073 Baldwin B7443 Baldwin B7401 Baldwin B7422 Baldwin B160 Beck/Arnley 041-0852 Beck/Arnley 041-0841 Bosch D3334 Bosch 3334 Carquest R84060MP Carquest R84060 Carquest 84073 Carquest Premium Filters 84060MP Carquest Premium Filters 84060 Carquest Premium Filters 84073 Casite Filters CF613 Castrol CAS10060 Certified CPH10060 Champ PH48R Champ PH48 Champ PH48XL Champion CAO10060 Champion 47060T Champion Filters CAO10060 Champion Filters 47060T Chrysler 4892339AB Chrysler 5184231AA Chrysler 4884900AB Chrysler 4892339BA Chrysler 5184231AB Chrysler 04892339AA Chrysler 4892339AA Chrysler 5047769AA Chrysler 68197769AA Chrysler 4892339BB Coopers FT4663 Coopers LSF5122 Defense Filters DL10060 Defense Filters DL10060BP Distance Plus D3334 Donaldson P550794 Driveworks DW-2222 ECOGARD S2222 ECOGARD X2222 FERGUSON R7060 Firestone PH48 Fispa FOE194 Fleetguard LF16242 FRAM XG10060 FRAM Core COR10060ACC FRAM Drive FD10060 FRAM Force FF10060 FRAM Pro FP10060BP FRAM Racing HP18 FRAM Synthetic Endurance FE10060 FRAM Titanium FS10060 FRAM Tough Guard TG10060 FVP R7060 General Motors 89017524 General Motors 89017342 General Motors 12626224 General Motors 19303975 General Motors LF623F Group 7 V2222 Hastings LF630 Hastings LF613 Hastings LF623 Hastings LF636F Hastings LF636 Hastings B160 Hastings LF623F Hastings LF613F Havoline T-62 Isuzu 2-94561-109-0 K&N PS-2011 K&N HP-1017 K&N PS-1107 LUBER-FINER LFP5822 LUBER-FINER PH48 LUBER-FINER PS-2011 Magneti Marelli 1AMFL00008 MAHLE OC614 Mann-Filter ML 1030 Mann-Filter W7030 MicroGard MGL10060 MicroGard MGL57060 Mighty Distributing System T48SP Mighty Distributing System M48 Mileguard MO10060 Mobil MO2222 Mobil 1 M1-113A Mobil 1 M1-113 Mopar MO-769 Mopar MO-339 MotoMaster MPH10060 Motorcraft FL-2056 NAPA 7060 NAPA 7073 NAPA Gold Filters 7060 NAPA Platinum Filters 47060 NAPA ProSelect Filters 27060 NAPA Silver Filters 37060 Parts Master 67060BP Parts Master 67060X Parts Master 67060 Pennzoil PZ167BP Pennzoil PZ-167 Pennzoil PZ167 Pennzoil HPZ-167 Pentius PLB10060 Performax PO-167 Pit Stop PSL54 Premium Guard PG2222 Prime Guard Filters - Archived POF2500 Prime Guard Filters - Archived POF2222 Promotive PH2222 Pronto PO-2222 PureZone 8-57060 Purolator L12222 Purolator PL12222 Purolator BOSS PBL12222 Purolator TECH TL12222 PurolatorONE PL12222 Quaker State QS45518 Quaker State QS45518BLK Service Champ OF2222 Service Pro M2222 Silverline 27060 STP S10060 STP S10060XL STP S10060ML STP Filters S10060 STP Filters S10060ML STP Filters S10060XL Super Tech Filters ST10086 SUPERTECH ST10086 Suzuki 16510-78J00 Suzuki 16510-78J01 Tough Guard TG10060 Ultra XG10060 Valvoline VO88 Valvoline VO-88 VIPER 10060 Volkswagen 7B0 115 561C Warner WPH48 Warner Filters WPH48 Wix 57073 Wix 57060XP Wix 57060 Woodgate WGL9177 - Installation
- Use proper protective gear. Used motor oil should not come in contact with bare skin. Engine oil may be hot.
- Place a drain pan under the oil filter and unscrew oil filter.
- Clean mounting base making sure the O-ring from the old filter is not stuck to the filter mount.
- Apply film of clean oil to filter gasket. Do not use grease.
- Screw new filter on until gasket reaches base contact. Then tighten according to instructions on filter using tightening guide markers.
- Check owner’s manual for correct oil specification viscosity and amount.
- Add oil to “full” on dipstick. Idle engine for 5 minutes and check for leaks.
- Shut off engine and recheck oil level after 5 minutes and top off as necessary.
