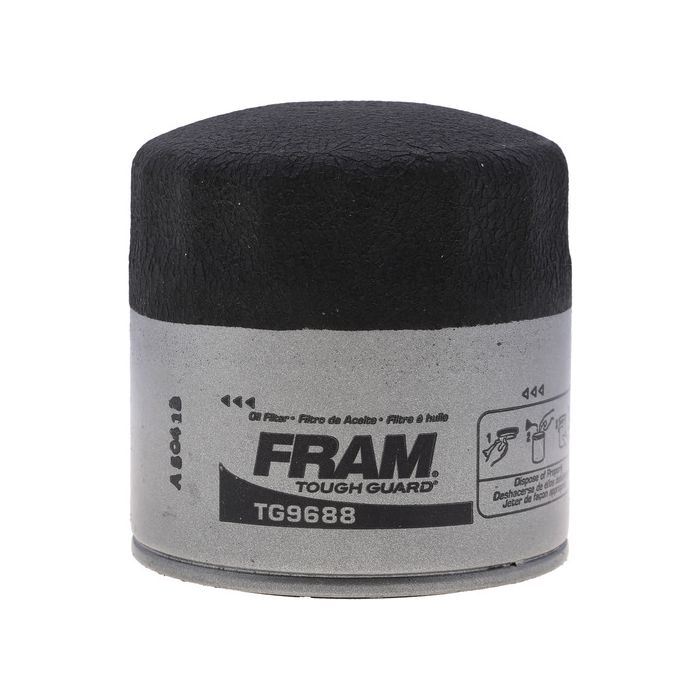

FRAM Tough Guard® Oil Filter

SKU
TG9688
More Information
Height (Inch) 3.080
Outside Diameter (Inch) 3.020
Anti-Drain Back Valve Yes
Bypass Relief Valve Yes
Gasket Inside Diameter (Inch) 2.130
Gasket Outside Diameter (Inch) 2.420
Gasket Thickness (Inch) 0.200
Gasket Type Base
Attachment Type Spin-On
Burst Pressure (Pounds per Square Inch) 310.000
Bypass Relief Valve Setting (Pounds per Square Inch) 9-15
Filter Media Material Cellulose/Synthetic Blend
Inlet Type Threaded
Inside Thread Diameter (Millimeter) M20x1.5
Thread Size Metric
Torque Nut No
More Information
Where To Shop
Search
  • Description

    FRAM Tough Guard® oil filters are designed for tough driving conditions, stop and go traffic, and hot and cold temperatures. The synthetic blend media is engineered to perform with conventional and synthetic motor oil. Equipped with SureGrip® technology, FRAM Tough Guard oil filters provide a non-slip surface allowing for easy install and removal. The silicone anti-drain back valve ensures safe engine startups, extending the life of the oil filter for up to 15,000 miles (24,000 kilometers).

    • Proven protection for up to 15,000 miles (24,000 kilometers)
    • Engineered for tough driving conditions, stop and go traffic, and hot and cold temperatures
    • SureGrip®?technology for easy install and removal
    • Synthetic blend media provides 99% dirt holding capacity
    • Silicone anti-drain back valve helps ensure safe engine start up

    *FRAM Group testing of average filter efficiency of TG8A, TG3387A and TG4967 under ISO 4548-12 for particles greater than 20 microns.

    **Greater than 3X the functional life of Nitrile ADB when tested per SAE HS806 hot oil and Anti-drain-back test.

    ?Not all features are available on every part number in the product line. Check the package for specific features of individual filters.

  • Applications

    This Item Fits the Following Vehicles:

    Year Make Model Engine
    1997 ACURA CL L4-2.2L
    99-98 ACURA CL L4-2.3L
    99-97 ACURA CL V6-3.0L
    03-01 ACURA CL V6-3.2L
    00-97 ACURA EL L4-1.6L
    03-01 ACURA EL L4-1.7L
    89-88 ACURA INTEGRA L4-1.6L
    93-92 ACURA INTEGRA L4-1.7L
    01-90 ACURA INTEGRA L4-1.8L
    02-01 ACURA MDX V6-3.5L
    05-96 ACURA RL V6-3.5L
    97-96 ACURA SLX V6-3.2L
    99-98 ACURA SLX V6-3.5L
    98-95 ACURA TL L5-2.5L
    02-99 ACURA TL V6-3.2L
    94-92 ACURA VIGOR L5-2.5L
    1993 ASUNA SUNFIRE L4-1.8L
    88-85 CHEVROLET SPECTRUM L4-1.5L
    05-01 CHRYSLER SEBRING V6-3.0L
    13-06 DODGE ATTITUDE L4-1.4L
    92-91 DODGE COLT L4-1.5L
    96-91 DODGE STEALTH V6-3.0L
    05-01 DODGE STRATUS V6-3.0L
    1992 EAGLE SUMMIT L4-1.5L
    1992 EAGLE VISTA L4-1.5L
    95-94 FORD ASPIRE L4-1.3L
    93-88 FORD FESTIVA L4-1.3L
    91-89 FORD PROBE L4-2.2L
    23-19 GENESIS G70 L4-2.0L
    1989 GEO SPECTRUM L4-1.5L
    93-90 GEO STORM L4-1.6L
    93-92 GEO STORM L4-1.8L
    85-84 HONDA ACCORD L4-1.8L
    89-86 HONDA ACCORD L4-2.0L
    97-90 HONDA ACCORD L4-2.2L
    02-98 HONDA ACCORD L4-2.3L
    97-95 HONDA ACCORD V6-2.7L
    02-98 HONDA ACCORD V6-3.0L
    95-88 HONDA CIVIC L4-1.5L
    00-88 HONDA CIVIC L4-1.6L
    95-93 HONDA CIVIC DEL SOL L4-1.5L
    97-93 HONDA CIVIC DEL SOL L4-1.6L
    01-97 HONDA CR-V L4-2.0L
    91-88 HONDA CRX L4-1.5L
    91-88 HONDA CRX L4-1.6L
    97-95 HONDA ODYSSEY L4-2.2L
    1998 HONDA ODYSSEY L4-2.3L
    02-99 HONDA ODYSSEY V6-3.5L
    96-94 HONDA PASSPORT L4-2.6L
    02-94 HONDA PASSPORT V6-3.2L
    87-83 HONDA PRELUDE L4-1.8L
    91-85 HONDA PRELUDE L4-2.0L
    91-90 HONDA PRELUDE L4-2.1L
    01-92 HONDA PRELUDE L4-2.2L
    96-92 HONDA PRELUDE L4-2.3L
    01-00 HONDA S2000 L4-2.0L
    03-00 HYUNDAI ACCENT L4-1.5L
    19-01 HYUNDAI ACCENT L4-1.6L
    20-17 HYUNDAI ELANTRA L4-1.4L
    24-17 HYUNDAI ELANTRA L4-1.6L
    95-93 HYUNDAI ELANTRA L4-1.6L
    16-11 HYUNDAI ELANTRA L4-1.8L
    98-93 HYUNDAI ELANTRA L4-1.8L
    12-99 HYUNDAI ELANTRA L4-2.0L
    20-14 HYUNDAI ELANTRA L4-2.0L
    2013 HYUNDAI ELANTRA COUPE L4-1.8L
    2014 HYUNDAI ELANTRA COUPE L4-2.0L
    20-18 HYUNDAI ELANTRA GT L4-1.6L
    2013 HYUNDAI ELANTRA GT L4-1.8L
    20-14 HYUNDAI ELANTRA GT L4-2.0L
    24-22 HYUNDAI ELANTRA N L4-2.0L
    94-93 HYUNDAI EXCEL L4-1.5L
    14-10 HYUNDAI GENESIS COUPE L4-2.0L
    22-17 HYUNDAI IONIQ L4-1.6L
    2015 HYUNDAI IX35 L4-2.0L
    21-18 HYUNDAI KONA L4-1.6L
    21-18 HYUNDAI KONA L4-2.0L
    23-22 HYUNDAI KONA N L4-2.0L
    20-19 HYUNDAI SANTA FE L4-2.0L
    06-01 HYUNDAI SANTA FE L4-2.4L
    12-10 HYUNDAI SANTA FE L4-2.4L
    20-19 HYUNDAI SANTA FE L4-2.4L
    09-01 HYUNDAI SANTA FE V6-2.7L
    06-03 HYUNDAI SANTA FE V6-3.5L
    18-13 HYUNDAI SANTA FE SPORT L4-2.0L
    18-13 HYUNDAI SANTA FE SPORT L4-2.4L
    95-93 HYUNDAI SCOUPE L4-1.5L
    19-15 HYUNDAI SONATA L4-1.6L
    19-11 HYUNDAI SONATA L4-2.0L
    98-93 HYUNDAI SONATA L4-2.0L
    19-99 HYUNDAI SONATA L4-2.4L
    01-99 HYUNDAI SONATA V6-2.5L
    05-02 HYUNDAI SONATA V6-2.7L
    98-90 HYUNDAI SONATA V6-3.0L
    1997 HYUNDAI TIBURON L4-1.8L
    01-97 HYUNDAI TIBURON L4-2.0L
    08-04 HYUNDAI TIBURON L4-2.0L
    08-03 HYUNDAI TIBURON V6-2.7L
    18-16 HYUNDAI TUCSON L4-1.6L
    09-05 HYUNDAI TUCSON L4-2.0L
    21-11 HYUNDAI TUCSON L4-2.0L
    15-10 HYUNDAI TUCSON L4-2.4L
    21-18 HYUNDAI TUCSON L4-2.4L
    09-05 HYUNDAI TUCSON V6-2.7L
    17-12 HYUNDAI VELOSTER L4-1.6L
    21-19 HYUNDAI VELOSTER L4-1.6L
    21-19 HYUNDAI VELOSTER L4-2.0L
    22-19 HYUNDAI VELOSTER N L4-2.0L
    2001 HYUNDAI XG300 V6-3.0L
    05-02 HYUNDAI XG350 V6-3.5L
    2015 INFINITI Q40 V6-3.7L
    93-89 ISUZU AMIGO L4-2.3L
    94-89 ISUZU AMIGO L4-2.6L
    00-98 ISUZU AMIGO V6-3.2L
    04-02 ISUZU AXIOM V6-3.5L
    89-85 ISUZU I-MARK L4-1.5L
    1989 ISUZU I-MARK L4-1.6L
    92-90 ISUZU IMPULSE L4-1.6L
    1992 ISUZU IMPULSE L4-1.8L
    97-96 ISUZU OASIS L4-2.2L
    99-98 ISUZU OASIS L4-2.3L
    95-88 ISUZU PICKUP L4-2.3L
    95-88 ISUZU PICKUP L4-2.6L
    97-91 ISUZU RODEO L4-2.6L
    04-93 ISUZU RODEO V6-3.2L
    2004 ISUZU RODEO V6-3.5L
    03-01 ISUZU RODEO SPORT V6-3.2L
    93-91 ISUZU STYLUS L4-1.6L
    1992 ISUZU STYLUS L4-1.8L
    91-88 ISUZU TROOPER L4-2.6L
    97-92 ISUZU TROOPER V6-3.2L
    02-98 ISUZU TROOPER V6-3.5L
    01-99 ISUZU VEHICROSS V6-3.5L
    06-04 KIA AMANTI V6-3.5L
    24-20 KIA FORTE L4-1.6L
    16-14 KIA FORTE L4-1.8L
    24-10 KIA FORTE L4-2.0L
    13-10 KIA FORTE L4-2.4L
    17-14 KIA FORTE KOUP L4-1.6L
    17-10 KIA FORTE KOUP L4-2.0L
    13-10 KIA FORTE KOUP L4-2.4L
    18-14 KIA FORTE5 L4-1.6L
    24-20 KIA FORTE5 L4-1.6L
    18-12 KIA FORTE5 L4-2.0L
    24-20 KIA FORTE5 L4-2.0L
    13-12 KIA FORTE5 L4-2.4L
    10-01 KIA MAGENTIS L4-2.4L
    2001 KIA MAGENTIS V6-2.5L
    08-02 KIA MAGENTIS V6-2.7L
    2010 KIA MAGENTIS V6-2.7L
    24-17 KIA NIRO L4-1.6L
    20-16 KIA OPTIMA L4-1.6L
    20-11 KIA OPTIMA L4-2.0L
    20-01 KIA OPTIMA L4-2.4L
    2001 KIA OPTIMA V6-2.5L
    08-02 KIA OPTIMA V6-2.7L
    2010 KIA OPTIMA V6-2.7L
    19-06 KIA RIO L4-1.6L
    11-06 KIA RIO5 L4-1.6L
    17-14 KIA RONDO L4-2.0L
    12-07 KIA RONDO L4-2.4L
    12-07 KIA RONDO V6-2.7L
    05-02 KIA SEDONA V6-3.5L
    2006 KIA SEDONA V6-3.8L
    23-21 KIA SELTOS L4-1.6L
    24-21 KIA SELTOS L4-2.0L
    18-16 KIA SORENTO L4-2.0L
    20-11 KIA SORENTO L4-2.4L
    06-03 KIA SORENTO V6-3.5L
    22-10 KIA SOUL L4-1.6L
    24-10 KIA SOUL L4-2.0L
    2004 KIA SPECTRA L4-1.8L
    09-04 KIA SPECTRA L4-2.0L
    09-05 KIA SPECTRA5 L4-2.0L
    22-05 KIA SPORTAGE L4-2.0L
    22-11 KIA SPORTAGE L4-2.4L
    10-05 KIA SPORTAGE V6-2.7L
    21-18 KIA STINGER L4-2.0L
    1992 LOTUS ELAN L4-1.6L
    89-86 MAZDA 323 L4-1.6L
    87-83 MAZDA 626 L4-2.0L
    92-88 MAZDA 626 L4-2.2L
    1976 MAZDA 808 L4-1.6L
    92-88 MAZDA 929 V6-3.0L
    87-86 MAZDA B2000 L4-2.0L
    92-87 MAZDA B2200 L4-2.2L
    92-89 MAZDA B2600 L4-2.6L
    78-77 MAZDA GLC L4-1.3L
    80-79 MAZDA GLC L4-1.4L
    85-81 MAZDA GLC L4-1.5L
    77-76 MAZDA MIZER L4-1.3L
    92-89 MAZDA MPV L4-2.6L
    92-89 MAZDA MPV V6-3.0L
    1992 MAZDA MX-3 V6-1.8L
    92-88 MAZDA MX-6 L4-2.2L
    85-80 MAZDA RX-7 R2-1.1L
    89-84 MAZDA RX-7 R2-1.3L
    90-87 MERCURY TRACER L4-1.6L
    99-91 MITSUBISHI 3000GT V6-3.0L
    96-92 MITSUBISHI DIAMANTE V6-3.0L
    12-06 MITSUBISHI ECLIPSE L4-2.4L
    05-00 MITSUBISHI ECLIPSE V6-3.0L
    2012 MITSUBISHI ECLIPSE V6-3.8L
    12-06 MITSUBISHI GALANT L4-2.4L
    03-99 MITSUBISHI GALANT V6-3.0L
    1988 MITSUBISHI GALANT V6-3.0L
    15-08 MITSUBISHI LANCER L4-2.0L
    2006 MITSUBISHI LANCER L4-2.0L
    06-04 MITSUBISHI LANCER L4-2.4L
    17-15 MITSUBISHI LANCER L4-2.4L
    2012 MITSUBISHI LANCER L4-2.4L
    96-92 MITSUBISHI MONTERO V6-3.0L
    02-94 MITSUBISHI MONTERO V6-3.5L
    06-03 MITSUBISHI MONTERO V6-3.8L
    16-10 MITSUBISHI MONTERO V6-3.8L
    2008 MITSUBISHI MONTERO V6-3.8L
    00-98 MITSUBISHI MONTERO SPORT V6-3.0L
    2003 MITSUBISHI MONTERO SPORT V6-3.0L
    04-99 MITSUBISHI MONTERO SPORT V6-3.5L
    06-03 MITSUBISHI OUTLANDER L4-2.4L
    10-08 MITSUBISHI OUTLANDER L4-2.4L
    2012 MITSUBISHI OUTLANDER L4-2.4L
    09-08 MITSUBISHI OUTLANDER V6-3.0L
    12-11 MITSUBISHI OUTLANDER SPORT L4-2.0L
    1994 MITSUBISHI PRECIS L4-1.5L
    90-89 MITSUBISHI SIGMA V6-3.0L
    92-89 PLYMOUTH COLT L4-1.5L
    88-85 PONTIAC SUNBURST L4-1.5L
    16-13 SCION FR-S H4-2.0L
    07-06 SUBARU B9 TRIBECA H6-3.0L
    2003 SUBARU BAJA H4-2.5L
    20-13 SUBARU BRZ H4-2.0L
    24-22 SUBARU BRZ H4-2.4L
    03-98 SUBARU FORESTER H4-2.5L
    2011 SUBARU FORESTER H4-2.5L
    97-93 SUBARU IMPREZA H4-1.8L
    04-02 SUBARU IMPREZA H4-2.0L
    01-95 SUBARU IMPREZA H4-2.2L
    04-98 SUBARU IMPREZA H4-2.5L
    1987 SUBARU JUSTY L3-1.2L
    99-90 SUBARU LEGACY H4-2.2L
    04-96 SUBARU LEGACY H4-2.5L
    09-08 SUBARU LEGACY H6-3.0L
    19-10 SUBARU LEGACY H6-3.6L
    04-00 SUBARU OUTBACK H4-2.5L
    09-01 SUBARU OUTBACK H6-3.0L
    19-10 SUBARU OUTBACK H6-3.6L
    97-92 SUBARU SVX H6-3.3L
    14-08 SUBARU TRIBECA H6-3.6L
    21-15 SUBARU WRX H4-2.0L
    24-22 SUBARU WRX H4-2.4L
    20-17 TOYOTA 86 H4-2.0L
    24-22 TOYOTA GR86 H4-2.4L
  • Comparison
    COMPETITOR NAME COMPETITOR PART #
    ACDelco PF1127
    Amsoil EAO20
    Amsoil EA15K20
    Amsoil EAO46
    Auto Extra 61857092MP
    Baldwin B1444
    Baldwin B7216
    Baldwin B7243
    Big A 92301
    Bosch D3312
    Bosch 3312
    Canada Tire 17-1723-6
    Canada Tire 17-1741-2
    Canada Tire 17-1706-8
    Canada Tire 17-1893-0
    Carquest 84092
    Carquest 85301
    Carrier Transicold 25.15038.00
    Carrier Transicold 25.35206.00
    Casite Filters CF402
    Castrol CAS3593A
    Cenex CO2808
    Certified CPH9688
    Champ PH2808
    Champ PH2808XL
    Champion 41334T
    Champion COS3593A
    Champion Filters COS3593A
    Champion Filters 41334T
    Club Car 102703301
    Crosland 2071
    Defense Filters DL9688
    Delphi FX1000
    Deutsch D362
    Distance Plus D3312
    Donaldson P550162
    Driveworks DW-4459
    ECOGARD S10479
    ECOGARD X10479
    Evergard E2808
    FERGUSON R1334A
    Flag C-6811
    Fleetguard LF3462
    Fleetguard LF3536
    Fleetguard LF3776
    FRAM Core COR9688ACC
    FRAM Drive FD9688
    FRAM Force FF9688
    FRAM Pro FP9688BP
    FRAM Synthetic Endurance FE9688
    FRAM Titanium FS9688
    FRAM Tough Guard TG9688
    FRAM Ultra Synthetic XG9688
    FVP R1334A
    Group 7 V4459
    Group 7 PL14459
    Hastings LF565
    Hastings LF585
    Hastings LF565F
    Hastings 26320-2E000
    Havoline TFC-521
    Honda 15410-ZJA-99AH
    Hyundai 26300-35501
    Hyundai 26300-35505
    Hyundai 26300-35510
    Hyundai 26300-35A00
    Hyundai 26300-35500
    Hyundai 26300-35502
    Hyundai 26300-35503
    Hyundai 26320-2E000
    Hyundai 26300-35056
    Installer Edge ML3593A
    Jiffy Lube HL6811
    John Deere M806419
    John Deere M801002
    K&N HP-1004
    Kia 26300-35504
    Kia 26300-35500
    Kia 26300-35505
    Kia 26300-35503
    Kia 26300-35501
    Kia 26300-35502
    Kia 26500-35501
    Kubota 16271-32090
    Kubota 16271-32092
    Kubota 15241-32092
    LUBER-FINER PH2808
    MAHLE OC205
    Mann-Filter W610/82
    Mann-Filter W814/80
    MicroGard MGL57092
    MicroGard MGL9688
    MicroGard MGL57830
    Mileguard MO9688
    Mitsubishi MD136790
    Mitsubishi MD352626
    Mitsubishi MZ690116
    Mobil MO4459
    Mobil 1 M1-104
    Mobil 1 M1-104A
    MotoMaster MPH9688
    NAPA 7092
    NAPA 1334
    NAPA 1301
    NAPA 7830
    NAPA Gold Filters 1334
    NAPA Platinum Filters 41344
    NAPA ProSelect Filters 27092
    NAPA ProSelect Filters 27830
    NAPA ProSelect Filters 21334
    NAPA Silver Filters 31334
    Nissan 16546-65F0E
    Onan 185-5835
    Onan 122-0827
    One Performance 185-5835
    One Performance 122-0827
    Parts Master 67092
    Parts Master 81064
    Parts Master 67092BP
    Parts Master 61334
    Parts Master 61334X
    Parts Master 67830X
    Parts Master 67830
    Parts Plus PH2808
    Pennzoil PZ-33
    Pentius PLB3593B
    Performax PO-182
    Performax PO-33
    Power Flo SL14459
    Prime Guard Filters - Archived POF4459
    Pronto PO-4459
    Pro-Tec 183
    PureZone 8-57830
    PureZone 8-57092
    Purolator PL14459
    Purolator L14459
    Purolator PureONE PL14459
    Purolator TECH TL14459
    PurolatorONE PL14459
    Quaker State QS14461
    Quaker State PL14459
    Service Champ OF4459
    Service Pro M4459A
    Shell - Archived SH521
    Shell - Archived SH520
    STP S2808
    STP S2808ML
    STP S2808XL
    STP Filters S2808
    STP Filters S2808ML
    Subaru 15208-AA100
    Subaru 15208-AA130
    Subaru 15208-AA170
    Subaru SOA51-65109
    Subaru 15208-AA031
    Super Tech Filters ST3593A
    Super Tech Filters ST9688
    SUPERTECH ST3593A
    SUPERTECH ST9688
    Tough Guard TG9688
    Toyota 90915-YZZS1
    Toyota SU003-00311
    Ultra XG9688
    Valucraft V2808
    Valvoline VO-106BP
    Valvoline VO-113BP
    Valvoline VO-148
    Valvoline VO-113
    Valvoline VO-106
    Valvoline VO-39
    VIPER 9688
    Warner PH2808
    Warner Filters PH2808
    Web W3593A
    Wix 57830
    Wix 51344
    Wix 51064
    Wix 51334XP
    Wix 51334
    Wix 57092
    Yamaha YF1-58413-24-30
  • Installation
    1. Use proper protective gear. Used motor oil should not come in contact with bare skin. Engine oil may be hot.
    2. Place a drain pan under the oil filter and unscrew oil filter.
    3. Clean mounting base making sure the O-ring from the old filter is not stuck to the filter mount.
    4. Apply film of clean oil to filter gasket. Do not use grease.
    5. Screw new filter on until gasket reaches base contact. Then tighten according to instructions on filter using tightening guide markers.
    6. Check owner’s manual for correct oil specification viscosity and amount.
    7. Add oil to “full” on dipstick. Idle engine for 5 minutes and check for leaks.
    8. Shut off engine and recheck oil level after 5 minutes and top off as necessary.
