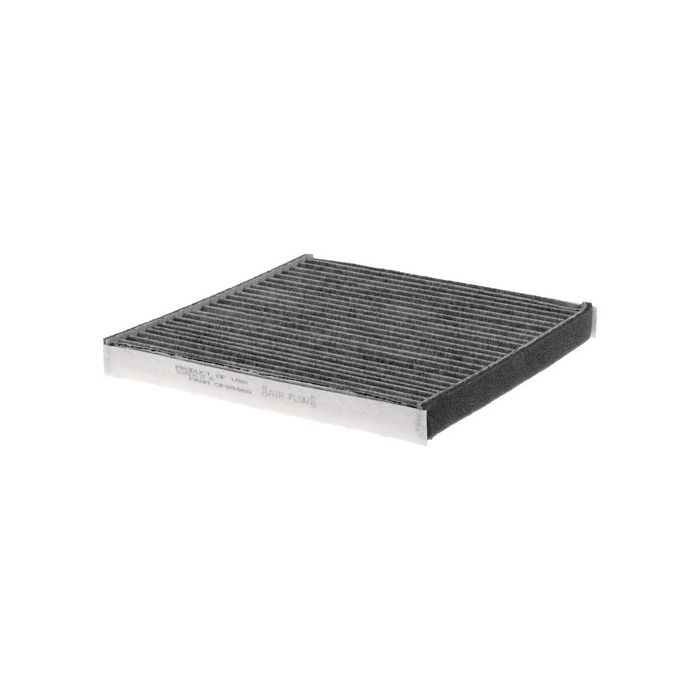

FRAM Fresh Breeze® Cabin Air Filter

SKU
CF9846A
More Information
Height (Inch) 0.788
Width (Inch) 8.471
Length (Inch) 8.471
More Information
Where To Shop
Search
  • Description

    FRAM® Fresh Breeze cabin air filters can keep up to 98% of road dust and pollen particles from entering a vehicle. The only cabin air filter that uses the natural deodorizing properties of ARM & HAMMER™ baking soda. Contaminants that enter the vehicle with outside air through the vehicle’s air conditioning, heating and ventilation system can become concentrated and expose passengers to road dust, dirt and allergens at higher levels than outside the car.

    • Filters up to 98% of dust, pollen and other contaminants
    • ARM & HAMMER baking soda combined with carbon embedded in the filter assists in cleaning outside air flowing through the vehicle’s ventilation system
    • Helps protect your vehicle's heating and air conditioning unit while also keeping it working efficiently
    • Installs on average in 15 minutes

    1. Road dust and pollen particles ranging in size from 5-100 microns.
    2. Deodorizing tests used isovaleric acid (sweaty odors), geosmin (earthy odors) and dog hairs.
    3. ARM & HAMMER, the ARM & HAMMER logo and distinct orange trade dress are trademarks of Church & Dwight Co., Inc. and used under license by FRAM Group IP LLC.
    * Always follow OE recommended change intervals.



  • Applications

    This Item Fits the Following Vehicles:

    Year Make Model Engine
    01-00 MAZDA MPV V6-2.5L
    03-02 MAZDA MPV V6-3.0L
    08-04 MITSUBISHI ENDEAVOR V6-3.8L
    11-10 MITSUBISHI ENDEAVOR V6-3.8L
    12-04 MITSUBISHI GALANT L4-2.4L
    09-04 MITSUBISHI GALANT V6-3.8L
    07-06 SUBARU B9 TRIBECA H6-3.0L
    09-05 SUBARU LEGACY H4-2.5L
    09-08 SUBARU LEGACY H6-3.0L
    09-05 SUBARU OUTBACK H4-2.5L
    09-05 SUBARU OUTBACK H6-3.0L
    14-08 SUBARU TRIBECA H6-3.6L
    09-03 TOYOTA 4RUNNER V6-4.0L
    09-03 TOYOTA 4RUNNER V8-4.7L
    05-00 TOYOTA CELICA L4-1.8L
    14-07 TOYOTA FJ CRUISER V6-4.0L
    09-01 TOYOTA PRIUS L4-1.5L
    06-04 TOYOTA SIENNA V6-3.3L
    09-07 TOYOTA SIENNA V6-3.5L
  • Comparison
    COMPETITOR NAME COMPETITOR PART #
    Beck/Arnley 042-2014
    Beck/Arnley 042-2060
    Bosch P3785
    Carquest 89875
    Champion CCF7766
    Defense Filters DC060
    FVP F4883
    GK Industries CF1060
    Group 7 C35516P
    Hastings AF1154
    Hastings AFC1154
    K&N VF2002
    Kleener FCAF7766
    Kleener CAF7766
    LUBER-FINER CAF1766
    MAHLE LA477
    MicroGard 3962
    NAPA 4875
    Power Train 3963
    Power Train 3962
    Promotive C35516P
    PUREPRO C35516
    Purolator C35516
    Service Champ C35516
    STP CAF1766
    STP CAF7766
    Subaru 72880-AG00A
    Subaru 63210-AG001
    Subaru 72880-XA00A
    Subaru 63210-AG000
    Subaru 72880-AG01A
    Toyota 87139-47010
    Toyota 87139-47010-83
    Valvoline VCA-1032
    Wix 24875
  • Installation

    TOOLS: None required.

    LOCATION OF CABIN FILTER: Behind the glove box or inside the glove box.

    REMOVE ALL DEBRIS IN AND AROUND FILTER LOCATION.

    1. Sit in the passenger side seat and open the glove box.
    2. On the right hand side of the glove box you will see a rod connected to the glove box. This is called the dampener rod. Remove the arm by slightly closing the glove box while pulling the arm slightly forward and off the shaft it is hooked to.
    3. Next push in on both sides of the glove box while pulling it downward until you disengage the stops on each side of the glove box. When you are doing this you will be flexing the glove box until the stops that hold the glove box from opening too far clear the sides of the glove box frame and this will allow the glove box to swing down on its bottom hinge.
    4. You should now see the cabin filter cover. Remove the cabin filter cover and frame by grabbing the cabin filter cover and pulling it straight out. The cabin filter frame is attached to the cover and will be removed at the same time.
    5. Remove the old filter from the frame by pushing it up from the underside of the filter frame and removing it from the tabs that are securing the filter to the frame.
    6. Install the new filter into the frame and insure that the edge of the filter is securely tucked under all the retaining tabs on the filter frame.
    7. Reinstall the cabin filter frame by sliding it back into the housing until it is seated back into position in the housing and the cover is secure.
    8. Pick up the glove box and swing it upward on the bottom hinge like you are closing it and partially close it until the stops on each side of the glove box re-engage. You may want to squeeze in on the glove box or push out on the back of the glove box until the stops clear the sides of the glove box frame if it looks like the stops might damage or scratch the sides of the glove box frame.
    9. Now re-install the dampener rod by sliding it back on the shaft on the glove box.
    10. Close the glove box.
