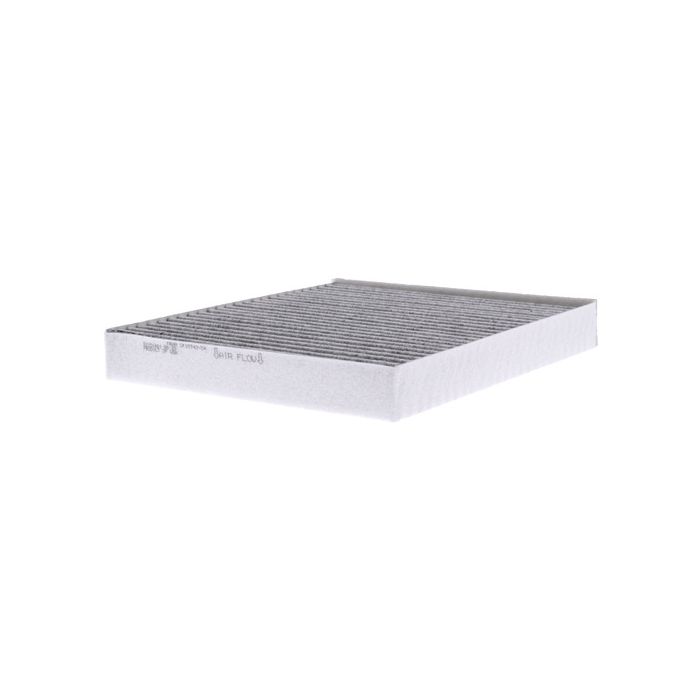

FRAM Fresh Breeze® Cabin Air Filter

TOOLS: 2 Phillips-head Screwdrivers – one long with at least a 12” shaft

LOCATION OF CABIN FILTER: Behind glove compartment behind cabin filter access door on the passenger side of the vehicle

REMOVE ALL DEBRIS IN AND AROUND FILTER LOCATION.

1. While sitting in the passenger seat open the glove box.
2. Remove the panel on the right edge of the dash.
3. Step out of the vehicle and remove the panel below the glove box.
4. Remove the four Phillips-head screws along the top edge of the glove box assembly.
5. Remove the Phillips-head screw behind the glove box - you will need a long Phillips-head screwdriver with at least a 12 inch shaft to reach this screw.
6. Remove the Phillips-head screw on the bottom-left corner of the assembly - this screw will also require the long screwdriver.
7. Remove the Phillips-head screw on the bottom-right corner of the assembly.
8. Pull the glove box assembly from the dash by starting at the top-right edge. This will expose the filter housing unit. Leave all the wiring connected to the assembly and set it on the floor. Note: Be careful not to stress any of the wires.
9. Unlatch the filter housing door from the right side and remove it.
10. Pull the old filter straight out to remove it from the housing.
11. Insert the new filter with the Air Flow indicator arrow pointing down.
12. Hold the filter against the top of the housing as you replace the cover.
13. Snap the glove box assembly back into place. The two tabs on the outside edge must line up with their respective holes for the assembly to seat completely.
14. Replace the four screws along the top edge of the assembly.
15. Replace the screw behind the glove box.
16. Replace the screw on the bottom-left corner of the assembly.
17. Replace the screw on the bottom-right corner of the assembly.
18. Replace the panel below the glove box.
19. Replace the panel on the right edge of the dash.
20. Close glove box.
