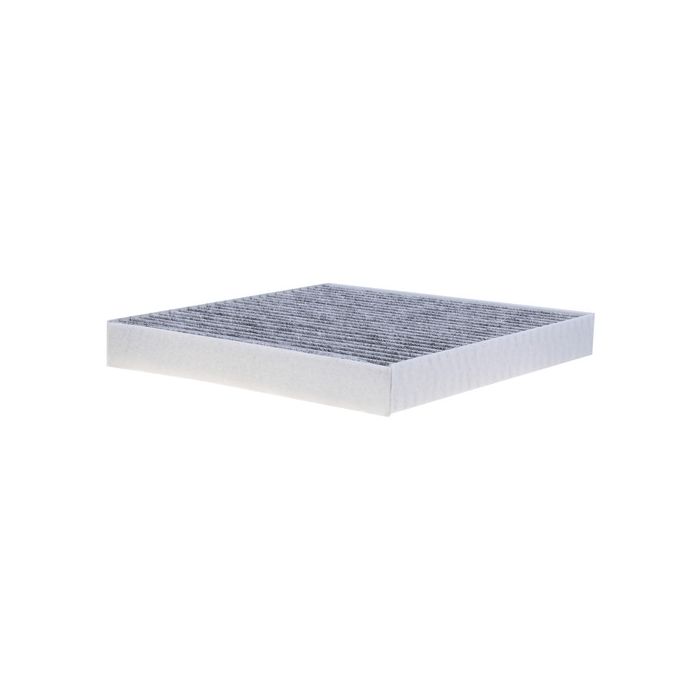

FRAM Fresh Breeze® Cabin Air Filter

TOOLS: Some models may require a Standard Screwdriver

LOCATION OF CABIN FILTER: On the passenger side of the vehicle under the dash behind the glove compartment.

REMOVE ALL DEBRIS IN AND AROUND FILTER LOCATION.

1. Open the glove compartment.
2. If your vehicle has a stop rod on the right hand side of the glove compartment disconnect by pushing it towards the front of the vehicle and unhooking it from the glove compartment. If your vehicle does not have a stop rod on the right hand side of the glove compartment skip this step and move directly to step 3. Unless you have a 2009 Honda Odyssey. If so you need to use a flat blade screwdriver and gently pry off the plastic piece on the glove compartment’s left side. This piece is located inside the glove compartment. It may also be necessary to remove the back panel of the glove compartment.
3. Push in on both sides of the glove compartment until the glove box stop retainers are disengaged and allow the glove compartment to swing freely down towards the floorboard on its bottom hinge. This will allow access to the cabin filter tray.
4. Locate the cabin filter tray and unlock it by pressing inward on the left and right side tabs and remove by pulling the tray straight out towards you.
5. Remove the dirty filter from the tray. (If your vehicle does not currently have a filter it is ok to add a filter to your vehicle so skip directly to step 6.)
6. Put the new filter in the filter tray with the air flow arrow pointing down. (This arrow is printed on the filter.)
7. Put the tray with the clean filter back into the vehicle by sliding back into position. Make sure that the filter tray is completely seated and latched on both sides.
8. Put the glove compartment back into position by raising it in place and pushing in on both sides to re-engage the glove compartment stops.
9. If your vehicle has a stop rod on the right hand side of the glove compartment reconnect it at this time by hooking it back to the right hand side of the glove compartment. If your vehicle does not have a stop rod continue directly to step 10.
10. Close glove compartment.
