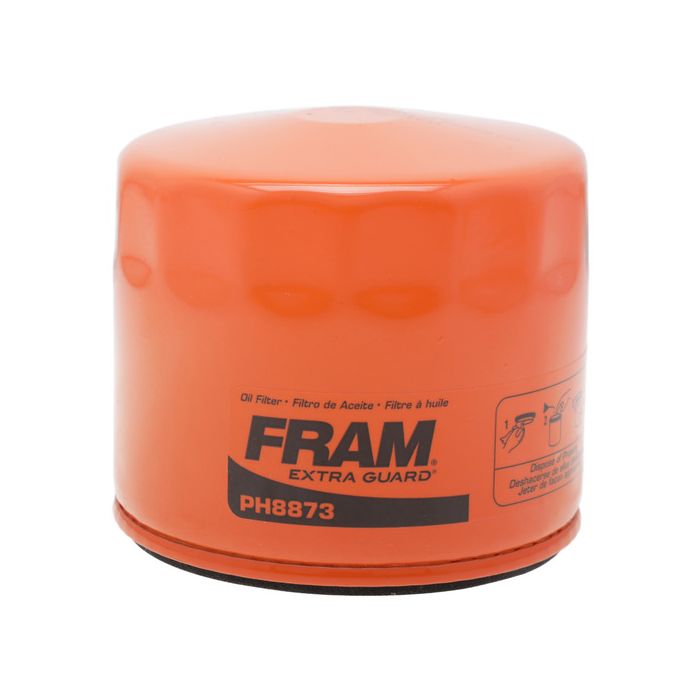

FRAM Extra Guard® Oil Filter
More Information
Height (Inch)
3.050
Outside Diameter (Inch)
3.719
Anti-Drain Back Valve
Yes
Bypass Relief Valve
No
Gasket Inside Diameter (Inch)
3.140
Gasket Outside Diameter (Inch)
3.476
Gasket Thickness (Inch)
0.230
Gasket Type
Base
Attachment Type
Spin-On
Filter Media Material
Cellulose/Synthetic Blend
Inlet Type
Threaded
Inside Thread Diameter (Inch)
13/16-16
Thread Size
Standard
Torque Nut
No
Description
FRAM Extra Guard® oil filters deliver advanced engine protection for everyday drivers who perform routine oil changes at OE (original equipment) recommended intervals. Equipped with SureGrip® technology, FRAM Extra Guard® oil filters provide a non-slip surface allowing for easy install and removal. The silicone anti-drain back valve ensures safe engine startups, extending the life of the oil filter for up to 10,000 miles (16,000 kilometers).
Proven protection for up to 10,000 miles (16,000 kilometers) Engineered for use with synthetic or conventional motor oils SureGrip® technology for easy install and removal Filter media is a blend of fiber and resin that captures 95% of the dirt particles Silicone anti-drain back valve helps ensure safe engine start up *FRAM Group testing of average filter efficiency of PH8A, PH3387A and PH4967 under ISO 4548-12 for particles greater than 20 microns.
**Greater than 3X the functional life of Nitrile ADB when tested per SAE HS806 hot oil and Anti-drain-back test.
?Not all features are available on every part number in the product line. Check the package for specific features of individual filters.
Applications
This Item Fits the Following Vehicles:
Year
Make
Model
Engine
BLUE BIRD
Vision (w/GM 8.1L LPG Engine)
06-02
CHEVROLET
AVALANCHE 2500
V8-8.1L
00-99
CHEVROLET
B7
V8-7.4L
02-01
CHEVROLET
B7
V8-8.1L
CHEVROLET
B7 School Bus Chassis (w/GM V8 7.4L Gas Engine)
CHEVROLET
B7 School Bus Chassis (w/GM V8 8.1L Gas Engine)
00-99
CHEVROLET
C2500
V8-7.4L
1999
CHEVROLET
C2500 SUBURBAN
V8-7.4L
00-99
CHEVROLET
C3500
V8-7.4L
00-99
CHEVROLET
C3500HD
V8-7.4L
02-01
CHEVROLET
C3500HD
V8-8.1L
09-03
CHEVROLET
C4500 KODIAK
V8-8.1L
CHEVROLET
C4500, C5500 Kodiak (w/V8 8.1L Engine)
09-03
CHEVROLET
C5500 KODIAK
V8-8.1L
00-99
CHEVROLET
C6500 KODIAK
V8-7.4L
09-01
CHEVROLET
C6500 KODIAK
V8-8.1L
CHEVROLET
C6500, C7500 Kodiak (w/7.4L Gas Engine)
CHEVROLET
C6500, C7500 Kodiak (w/V8 8.1L Gas Engine)
CHEVROLET
C6500, C7500, C8500 Kodiak (w/V8 8.1L Gas Engine)
00-99
CHEVROLET
C7500 KODIAK
V8-7.4L
09-01
CHEVROLET
C7500 KODIAK
V8-8.1L
CHEVROLET
C8500 KODIAK (w/V8-8.1L F/inj. L18 (G))
00-99
CHEVROLET
EXPRESS 3500
V8-7.4L
02-01
CHEVROLET
EXPRESS 3500
V8-8.1L
00-99
CHEVROLET
K2500
V8-7.4L
1999
CHEVROLET
K2500 SUBURBAN
V8-7.4L
00-99
CHEVROLET
K3500
V8-7.4L
CHEVROLET
K3500 (w/V8-7.4L F/inj. (J))
06-01
CHEVROLET
SILVERADO 2500 HD
V8-8.1L
2007
CHEVROLET
SILVERADO 2500 HD CLASSIC
V8-8.1L
06-01
CHEVROLET
SILVERADO 3500
V8-8.1L
2007
CHEVROLET
SILVERADO 3500 CLASSIC
V8-8.1L
06-01
CHEVROLET
SUBURBAN 2500
V8-8.1L
CHEVROLET
V8-454 7.4L
CHEVROLET
V8-494 8.1L
ELDORADO
Cut-Away Chassis (w/General Motors V8-8.1L Engine)
GMC
454 V8 7.4L
GMC
496 V8 Vortec 8100
00-99
GMC
B7
V8-7.4L
02-01
GMC
B7
V8-8.1L
GMC
B7 School Bus Chassis (w/General Motors V8 7.4L Gas Engine)
GMC
B7 School Bus Chassis (w/General Motors V8 8.1L Gas Engine)
GMC
B7T042 School Bus (w/General Motors 7.4L Gas Engine)
GMC
B7T042 School Bus (w/V8-8.1L F/inj. Engine)
GMC
B7T042 School Bus (w/V8-8.1L F/inj. L18 (G) Engine)
00-99
GMC
C2500
V8-7.4L
1999
GMC
C2500 SUBURBAN
V8-7.4L
00-99
GMC
C3500
V8-7.4L
00-99
GMC
C3500HD
V8-7.4L
02-01
GMC
C3500HD
V8-8.1L
09-03
GMC
C4500 TOPKICK
V8-8.1L
GMC
C4500, C5500 Topkick (w/V8 8.1L Engine)
09-03
GMC
C5500 TOPKICK
V8-8.1L
00-99
GMC
C6500 TOPKICK
V8-7.4L
09-01
GMC
C6500 TOPKICK
V8-8.1L
GMC
C6500, C7500 Topkick (w/7.4L Gas Engine)
GMC
C6500, C7500 Topkick (w/V8 8.1L Gas Engine)
GMC
C6500, C7500, C8500 Topkick (w/V8 8.1L Gas Engine)
00-99
GMC
C7500 TOPKICK
V8-7.4L
09-01
GMC
C7500 TOPKICK
V8-8.1L
09-03
GMC
C8500 TOPKICK
V8-8.1L
GMC
C8500 TopKick (w/V8-8.1L F/inj. L18 (G) Engine)
1973
GMC
K15/K1500 SUBURBAN
L6-4.1L
00-99
GMC
K2500
V8-7.4L
1999
GMC
K2500 SUBURBAN
V8-7.4L
00-99
GMC
K3500
V8-7.4L
GMC
K3500 (w/V8-7.4L F/inj. (J))
00-99
GMC
SAVANA 3500
V8-7.4L
02-01
GMC
SAVANA 3500
V8-8.1L
06-01
GMC
SIERRA 2500 HD
V8-8.1L
2007
GMC
SIERRA 2500 HD CLASSIC
V8-8.1L
06-01
GMC
SIERRA 3500
V8-8.1L
2007
GMC
SIERRA 3500 CLASSIC
V8-8.1L
GMC
Sierra 3500 w/V8-7.4L F/inj. J Engine
GMC
Sierra 3500 w/V8-8.1L F/inj. L18 G Engine
GMC
V8-494 8.1L
06-01
GMC
YUKON XL 2500
V8-8.1L
INDMAR
8.1L 8100 Vortec
MASTERCRAFT
5.7 MCX
MASTERCRAFT
5.7 RPT1
MASTERCRAFT
6.0 Cadillac
MASTERCRAFT
8.1 8100 Vortec
MERCRUISER
350 Mag Horizon 5.7L V8 MPI
MERCRUISER
377 Magnum
MERCRUISER
4.3L EFI
MERCRUISER
4.3LX Alpha Series
MERCRUISER
4.5L MPI Alpha/Bravo
MERCRUISER
496 Mag
MERCRUISER
496 Mag H/O 8.1L V8
MERCRUISER
5.0L EFI
MERCRUISER
5.7L Comp.
MERCRUISER
5.7L EFI
MERCRUISER
6.2L MPI
MERCRUISER
8.2L MPI
MERCRUISER
MX6.2 MPI V8
MID BUS
Cut-Away Chassis (w/General Motors V8-8.1L Engine)
STERLING
Acterra (w/Cummins 6.7L ISB Engine)
WINNEBAGO
Adventurer (w/General Motors 7.4L Gas Engine)
WINNEBAGO
Brave (w/General Motors 7.4L Gas Engine)
WINNEBAGO
Minnie (GM G3500, Ford E3/450) (w/General Motors 7.4L Gas Engine)
WORKHORSE
L18 Chassis (w/V8 8.1L F/inj. (G) Engine)
WORKHORSE
W62 (w/8.1L Gas Engine)
Comparison
COMPETITOR NAME
COMPETITOR PART #
ACDelco
PF454FCL
ACDelco
PF454
ACDelco
PF454F
ACDelco
PF454CL
Amsoil
EAO59
Auto Extra
61857099MP
Baldwin
B1438
Bosch
3322
Bosch
72238WS
Carquest
84099
Carquest
R84099
Carquest
R84099MP
Carquest Premium Filters
84099HD
Carquest Premium Filters
84099
Casite Filters
CF509
Champ
PH454
Champion
47099T
Champion
COS8873
Champion Filters
COS8873
Champion Filters
47099T
Crusader Marine
201104
Defense Filters
DL8873
Distance Plus
D3322
Donaldson
P550507
Driveworks
DW-5313
FERGUSON
R7099
Firestone
TF454
Fleetguard
LF16109
FRAM
PH8873FP
FRAM Drive
FD8873
FVP
R7099
General Motors
89060467
General Motors
25324052
General Motors
89060499
Group 7
V5313
Hastings
CF509
Hastings
LF509
Hastings
LF509F
Installer Edge
AL8873
John Deere
TY27592
John Deere
AH82432
John Deere
TY25792E
John Deere
TY9429
John Deere
AH78769
John Deere
AH42432
K&N
HP-1011
K&N
PS-1011
Koehler
GM16703
Kohler
GM16703
LUBER-FINER
PH454
Magneti Marelli
1AMFL00013
Mann-Filter
ML 1026
Mercury
35-866340Q02
Mercury
35-802885T
Mercury
35-866340K01
Mercury
35-866340Q03
Mercury
14957
Mercury
866340Q02
Mercury
866340K01
Mercury
32716
Mercury
35-802885Q
Mercury Marine
866340K01
Mercury Marine
35-866340K01
MicroGard
MGL8873
MicroGard
MGL57099
MicroGard Select
MSL57099
Mighty Distributing System
M454
Mileguard
MO8873
Mobil
MO5313
Mobil 1
M1-111
Mobil 1
M1-111A
NAPA
7099
NAPA Platinum Filters
47099
OMC
502902
OMC
173232
Parts Master
67099
Parts Master
61069
Parts Master
61069BP
Parts Plus
PH454
Pennzoil
PZ52BP
Pennzoil
PZ52
Pennzoil
HPZ-52
Pennzoil
PZ-52
Pentius
PLB8873
Performax
PO-52
Pit Stop
PSL47
Pleasurecraft
R077002
Premium Guard
PG49
Professionals Choice - Archived
Q5313
Promotive
PH5313
Pronto
PO-5313
Purolator
L15313
Purolator BOSS
PBL15313
Purolator PureONE
PL15313
PurolatorONE
PL15313
Quaker State
QS8873
Quaker State
QS8873BLK
Quicksilver
35-866340Q03
Shell - Archived
SH45
Silverline
27099
STP
S8873
STP Filters
S8873XL
STP Filters
S8873
Super Tech Filters
ST8873
SUPERTECH
ST8873
Valvoline
VO-65
VIPER
8873
Volvo Penta
835440-9
Warner
PH454
Warner Filters
PH454
Wix
57099
Workhorse
25324052
Yamaha
YSC-10231-20-0C
Installation
Use proper protective gear. Used motor oil should not come in contact with bare skin. Engine oil may be hot.
Place a drain pan under the oil filter and unscrew oil filter.
Clean mounting base making sure the O-ring from the old filter is not stuck to the filter mount.
Apply film of clean oil to filter gasket. Do not use grease.
Screw new filter on until gasket reaches base contact. Then tighten according to instructions on filter using tightening guide markers.
Check owner’s manual for correct oil specification viscosity and amount.
Add oil to “full” on dipstick. Idle engine for 5 minutes and check for leaks.
Shut off engine and recheck oil level after 5 minutes and top off as necessary.
