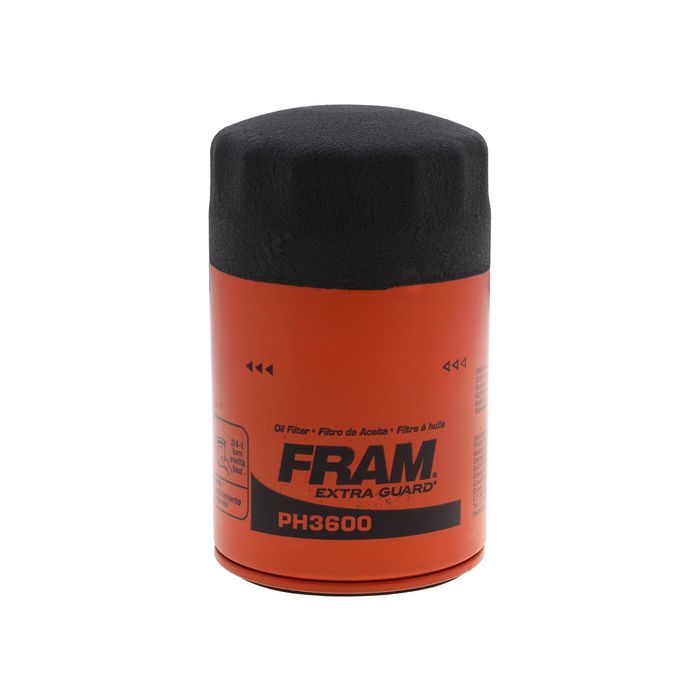

FRAM Extra Guard® Oil Filter
SKU
PH3600
| Height (Inch) | 4.922 |
|---|---|
| Outside Diameter (Inch) | 2.984 |
| Anti-Drain Back Valve | Yes |
| Bypass Relief Valve | Yes |
| Gasket Inside Diameter (Inch) | 2.469 |
| Gasket Outside Diameter (Inch) | 2.750 |
| Gasket Thickness (Inch) | 0.188 |
| Gasket Type | Base |
| Attachment Type | Spin-On |
| Burst Pressure (Pounds per Square Inch) | 310.000 |
| Bypass Relief Valve Setting (Pounds per Square Inch) | 12 |
| Filter Media Material | Cellulose/Synthetic Blend |
| Inlet Type | Threaded |
| Inside Thread Diameter (Inch) | 3/4-16 |
| Thread Size | Standard |
| Torque Nut | No |
Where To Shop
Search
Search
- Description
FRAM Extra Guard® oil filters deliver advanced engine protection for everyday drivers who perform routine oil changes at OE (original equipment) recommended intervals. Equipped with SureGrip® technology, FRAM Extra Guard® oil filters provide a non-slip surface allowing for easy install and removal. The silicone anti-drain back valve ensures safe engine startups, extending the life of the oil filter for up to 10,000 miles (16,000 kilometers).
- Proven protection for up to 10,000 miles (16,000 kilometers)
- Engineered for use with synthetic or conventional motor oils
- SureGrip® technology for easy install and removal
- Filter media is a blend of fiber and resin that captures 95% of the dirt particles
- Silicone anti-drain back valve helps ensure safe engine start up
*FRAM Group testing of average filter efficiency of PH8A, PH3387A and PH4967 under ISO 4548-12 for particles greater than 20 microns.
**Greater than 3X the functional life of Nitrile ADB when tested per SAE HS806 hot oil and Anti-drain-back test.
?Not all features are available on every part number in the product line. Check the package for specific features of individual filters.
- Applications
This Item Fits the Following Vehicles:
Year Make Model Engine ALLIS-CHALMERS 720 w/Onan CCKBMS Engine ALLIS-CHALMERS 720 w/Onan CCKBMS Engine ALLIS-CHALMERS 723 w/Onan Engine ALLIS-CHALMERS 723 w/Onan Engine ARIENS 9020 w/Onan Engine ARIENS 9020 w/Onan Engine ARIENS GT18 w/Kohler K482 18 hp V-Twin ARIENS GT18 w/Kohler K482 18 hp V-Twin ARIENS GT20 w/Kohler Engine ARIENS GT20 w/Kohler Engine BADGER DYNAMIC Bucky w/Onan CCKB Engine BADGER DYNAMIC Bucky w/Onan CCKB Engine BADGER DYNAMIC Buckyw/Onan 25NHC Engine BADGER DYNAMIC Buckyw/Onan 25NHC Engine BASIC EQUIPMENT INC 210S w/Kohler Engine BASIC EQUIPMENT INC 210S w/Kohler Engine BASIC EQUIPMENT INC 601A w/Kohler Engine BASIC EQUIPMENT INC 601A w/Kohler Engine BOBCAT 520, 530, 540 w/Kohler K582S 23 hp Engine BOBCAT 520, 530, 540 w/Kohler K582S 23 hp Engine BOLENS 180 w/Kohler K482S 18 hp Twin BOLENS 180 w/Kohler K482S 18 hp Twin BOLENS 1886 Husky w/Kohler 18 hp Engine BOLENS 1886 Husky w/Kohler 18 hp Engine BOLENS 1886SHT18 w/Kohler K82S Engine BOLENS 1886SHT18 w/Kohler K82S Engine BOLENS 2086, 2087 w/Kohler K532S 20 hp Engine BOLENS 2086, 2087 w/Kohler K532S 20 hp Engine BOLENS 2389 w/Kohler K582 23 hp Twin BOLENS 2389 w/Kohler K582 23 hp Twin BOLENS HT20 w/Kohler K532S 20 hp V-Twin Engine BOLENS HT20 w/Kohler K532S 20 hp V-Twin Engine CCS (CAB COMFORT SYSTEM) Lightning (w/Kubota 482 Engine) CCS (CAB COMFORT SYSTEM) Lightning (w/Kubota 482 Engine) 09-03 CHRYSLER PT CRUISER L4-2.4L DAVIS 25 + 4 w/Kohler Engine DAVIS 25 + 4 w/Kohler Engine DAVIS Mini-Sneaker w/Onan Engine DAVIS Mini-Sneaker w/Onan Engine DIG-R-MOBILE 80 Onan CCK Engine DIG-R-MOBILE 80 Onan CCK Engine 08-04 DODGE DAKOTA V6-3.7L 08-04 DODGE DURANGO V6-3.7L 05-03 DODGE NEON L4-2.4L 08-07 DODGE NITRO V6-3.7L 08-02 DODGE RAM 1500 V6-3.7L EXCEL 272, 275, 285 w/Kohler Engine EXCEL 272, 275, 285 w/Kohler Engine EXCEL 400, 440 w/Ford Industrial Gas Engine EXCEL 400, 440 w/Ford Industrial Gas Engine EXCEL 4100 w/Kohler Engine EXCEL 4100 w/Kohler Engine EXCEL 4300, 4500 w/Ford Industrial Gas Engine EXCEL 4300, 4500 w/Ford Industrial Gas Engine FLYING J CCS (Cab Comfort System) (w/Kubota Z482 Engine) FLYING J CCS (Cab Comfort System) (w/Kubota Z482 Engine) 97-86 FORD AEROSTAR V6-3.0L FORD CL20 w/Onan Engine FORD CL20 w/Onan Engine 10-07 FORD COURIER L4-1.6L 2003 FORD E-150 V6-4.2L 2003 FORD E-150 CLUB WAGON V6-4.2L 02-97 FORD E-150 ECONOLINE V6-4.2L 02-97 FORD E-150 ECONOLINE CLUB WAGON V6-4.2L 2003 FORD E-250 V6-4.2L 02-97 FORD E-250 ECONOLINE V6-4.2L 09-07 FORD EDGE V6-3.5L 85-81 FORD ESCORT L4-1.6L 96-85 FORD ESCORT L4-1.9L 02-97 FORD ESCORT L4-2.0L 85-82 FORD EXP L4-1.6L 88-86 FORD EXP L4-1.9L 03-97 FORD F-150 V6-4.2L 08-05 FORD F-150 V6-4.2L 08-04 FORD F-150 V8-4.6L 2004 FORD F-150 HERITAGE V6-4.2L 2004 FORD F-150 HERITAGE V8-4.6L 06-05 FORD F-250 SUPER DUTY V8-5.4L 06-05 FORD F-350 SUPER DUTY V8-5.4L 2009 FORD FLEX V6-3.5L 04-00 FORD FOCUS L4-2.0L 07-04 FORD FREESTAR V6-3.9L 07-04 FORD FREESTAR V6-4.2L FORD LRG425 FORD LRG425 04-94 FORD MUSTANG V6-3.8L 2004 FORD MUSTANG V6-3.9L 73-71 FORD PINTO L4-1.6L 92-90 FORD PROBE V6-3.0L 03-01 FORD RANGER L4-2.3L 01-98 FORD RANGER L4-2.5L 08-91 FORD RANGER V6-3.0L 07-86 FORD TAURUS V6-3.0L 95-93 FORD TAURUS V6-3.2L 09-08 FORD TAURUS V6-3.5L 95-88 FORD TAURUS V6-3.8L 99-96 FORD TAURUS V8-3.4L 09-08 FORD TAURUS X V6-3.5L 94-92 FORD TEMPO V6-3.0L 97-88 FORD THUNDERBIRD V6-3.8L 00-95 FORD WINDSTAR V6-3.0L 03-95 FORD WINDSTAR V6-3.8L FORD (EUROPE) Tourneo Connect (w/1.8 16V EYPA Engine) FORD (EUROPE) Tourneo Connect (w/1.8 16V EYPA Engine) FORD (EUROPE) Tourneo Connect (w/1.8 16V EYPC Engine) FORD (EUROPE) Tourneo Connect (w/1.8 16V EYPC Engine) FORD (EUROPE) Transit 1995 (w/2.0 EDL Engine) FORD (EUROPE) Transit 1995 (w/2.0 EDL Engine) FORD (EUROPE) Transit 1995 (w/2.0 EDS NSG Engine) FORD (EUROPE) Transit 1995 (w/2.0 EDS NSG Engine) FORD (EUROPE) Transit 1995 (w/2.0 ESS Engine) 00-95 FORD (EUROPE) Transit 1995 (w/2.0 ESS Engine) FORD (EUROPE) Transit 1995 (w/2.0 NSG Engine) 00-94 FORD (EUROPE) Transit 1995 (w/2.0 NSG Engine) FORD (EUROPE) Transit 2000 (w/2.3 16V E5FA Engine) 06-00 FORD (EUROPE) Transit 2000 (w/2.3 16V E5FA Engine) FORD (EUROPE) Transit Connect (w/1.8 16V EYPA Engine) FORD (EUROPE) Transit Connect (w/1.8 16V EYPA Engine) FORD (EUROPE) Transit Connect (w/1.8 16V EYPC Engine) FORD (EUROPE) Transit Connect (w/1.8 16V EYPC Engine) G.H. TENNANT 240 w/Kohler Engine G.H. TENNANT 240 w/Kohler Engine G.H. TENNANT 240 w/Onan Engine G.H. TENNANT 240 w/Onan Engine G.H. TENNANT 520 w/Onan Engine G.H. TENNANT 520 w/Onan Engine G.H. TENNANT 86 w/Kohler K482 Engine G.H. TENNANT 86 w/Kohler K482 Engine GEHL HL2500, HL2500A Hydro Cat w/Onan NH Series Engine GEHL HL2500, HL2500A Hydro Cat w/Onan NH Series Engine GEHL HL2500, HL2500A Hydro Cat w/Onan NHC Series Engine GEHL HL2500, HL2500A Hydro Cat w/Onan NHC Series Engine GEHL HL3000, HL3200 Hydro Cat w/Onan NHCV Series Engine GEHL HL3000, HL3200 Hydro Cat w/Onan NHCV Series Engine GEHL HL3000, HL3200 Hydro-Cat w/Onan NHCV Series Engine GEHL HL3000, HL3200 Hydro-Cat w/Onan NHCV Series Engine GRAVELY 450 w/Onan Engine GRAVELY 450 w/Onan Engine GWF MFG. INC. Blaster GWF MFG. INC. Blaster HUSTLER Hydrostatic 272 w/Kohler 17 hp Engine HUSTLER Hydrostatic 272 w/Kohler 17 hp Engine HYDRA-MAC 8 w/Onan NH Engine HYDRA-MAC 8 w/Onan NH Engine HYDRA-MAC 8 w/Onan NHC Engine HYDRA-MAC 8 w/Onan NHC Engine HYDRA-MAC 8 w/Onan NHCV Engine HYDRA-MAC 8 w/Onan NHCV Engine HYDRA-MAC 8A w/Onan NH Engine HYDRA-MAC 8A w/Onan NH Engine HYDRA-MAC 8A w/Onan NHC Engine HYDRA-MAC 8A w/Onan NHC Engine HYDRA-MAC 8A w/Onan NHCV Engine HYDRA-MAC 8A w/Onan NHCV Engine HYDRA-MAC 8B w/Onan NH Engine HYDRA-MAC 8B w/Onan NH Engine HYDRA-MAC 8B w/Onan NHC Engine HYDRA-MAC 8B w/Onan NHC Engine HYDRA-MAC 8B w/Onan NHCV Engine HYDRA-MAC 8B w/Onan NHCV Engine HYDRA-MAC 8C w/Onan NH Engine HYDRA-MAC 8C w/Onan NH Engine HYDRA-MAC 8C w/Onan NHC Engine HYDRA-MAC 8C w/Onan NHC Engine HYDRA-MAC 8C w/Onan NHCV Engine HYDRA-MAC 8C w/Onan NHCV Engine IDLEBUSTER Idlebuster (w/Kubota Z482 Engine) IDLEBUSTER Idlebuster (w/Kubota Z482 Engine) INTERNATIONAL HARVESTER 4130 w/Onan NHCV Engine INTERNATIONAL HARVESTER 4130 w/Onan NHCV Engine JACOBSEN Commercial 60 Kohler 277138 Engine JACOBSEN Commercial 60 Kohler 277138 Engine JACOBSEN F133 w/Kohler K482 18 hp Twin Engine JACOBSEN F133 w/Kohler K482 18 hp Twin Engine 08-00 JAGUAR S-TYPE V6-3.0L 05-02 JAGUAR X-TYPE V6-2.5L 08-02 JAGUAR X-TYPE V6-3.0L 08-06 JEEP COMMANDER V6-3.7L 08-05 JEEP GRAND CHEROKEE V6-3.7L 08-02 JEEP LIBERTY V6-3.7L JOHN DEERE 400 w/Kohler K532S 20 hp Twin Engine JOHN DEERE 400 w/Kohler K532S 20 hp Twin Engine KOHLER K482 (Twin) KOHLER K482 (Twin) KOHLER K532 (Twin) KOHLER K532 (Twin) KOHLER K582 (Twin) KOHLER K582 (Twin) KOHLER K660 KOHLER K660 KOHLER K662 (Twin) KOHLER K662 (Twin) 94-88 LINCOLN CONTINENTAL V6-3.8L 05-00 LINCOLN LS V6-3.0L 2009 LINCOLN MKS V6-3.7L 09-07 LINCOLN MKX V6-3.5L 09-07 LINCOLN MKZ V6-3.5L MARKLIFT Mark 30 w/Onan Engine MARKLIFT Mark 30 w/Onan Engine 13-09 MAZDA 6 V6-3.7L 03-01 MAZDA B2300 L4-2.3L 01-98 MAZDA B2500 L4-2.5L 05-94 MAZDA B3000 V6-3.0L 08-07 MAZDA B3000 V6-3.0L 2007 MAZDA CX-9 V6-3.5L 15-08 MAZDA CX-9 V6-3.7L 72-70 MERCURY CAPRI L4-1.6L 97-88 MERCURY COUGAR V6-3.8L 83-82 MERCURY LN7 L4-1.6L 85-81 MERCURY LYNX L4-1.6L 87-85 MERCURY LYNX L4-1.9L 07-04 MERCURY MONTEREY V6-4.2L 05-86 MERCURY SABLE V6-3.0L 09-08 MERCURY SABLE V6-3.5L 95-88 MERCURY SABLE V6-3.8L 94-92 MERCURY TOPAZ V6-3.0L 96-91 MERCURY TRACER L4-1.9L 99-97 MERCURY TRACER L4-2.0L 08-06 MITSUBISHI RAIDER V6-3.7L NEW HOLLAND L250 w/Onan P218G Engine NEW HOLLAND L250 w/Onan P218G Engine NEW HOLLAND L325 w/Kohler K582 Engine NEW HOLLAND L325 w/Kohler K582 Engine NEW HOLLAND L454 w/Ford VSG-411 Engine NEW HOLLAND L454 w/Ford VSG-411 Engine NEW HOLLAND L464 w/Ford VSG-413 Engine NEW HOLLAND L464 w/Ford VSG-413 Engine OAKES L600 OAKES L600 OAKES L700 OAKES L700 ONAN 4.0 MCCK ONAN 4.0 MCCK ONAN 6.5 Aux. w/NH Gasoline Engine ONAN 6.5 Aux. w/NH Gasoline Engine ONAN 6.5 MCCK ONAN 6.5 MCCK ONAN B48G ONAN B48G ONAN B48M-GAO19.9 ONAN B48M-GAO19.9 ONAN B48M-GAO20 ONAN B48M-GAO20 ONAN CCK ONAN CCK ONAN CCKA ONAN CCKA ONAN CCKB ONAN CCKB ONAN CCKMS/1070F ONAN CCKMS/1070F ONAN N52M ONAN N52M ONAN N60V ONAN N60V ONAN NH 6.5L ONAN NH 6.5L ONAN NH, NHD, NHDL, NHE, NHEL, NHM Emerald series ONAN NH, NHD, NHDL, NHE, NHEL, NHM Emerald series ONAN NHA ONAN NHA ONAN NHAB ONAN NHAB ONAN NHB ONAN NHB ONAN NHBA ONAN NHBA ONAN NHC ONAN NHC ONAN NHCMS ONAN NHCMS ONAN NHCV ONAN NHCV ONAN NHL ONAN NHL ONAN NHP ONAN NHP ONAN NHRL-RV 6.3 ONAN NHRL-RV 6.3 ONAN P216G Twin Performer ONAN P216G Twin Performer ONAN P218G, P218V Twin Performer ONAN P218G, P218V Twin Performer ONAN P220G, P220V Twin Performer ONAN P220G, P220V Twin Performer ONAN P224G Twin Performer ONAN P224G Twin Performer ONAN RCCK ONAN RCCK ONAN T260G ONAN T260G OWATONNA 330 w/Onan NHMS Engine OWATONNA 330 w/Onan NHMS Engine ROOF F133 w/Kohler K482 Engine ROOF F133 w/Kohler K482 Engine SIMPLICITY 9020 w/Onan Engine SIMPLICITY 9020 w/Onan Engine THERMO KING XMD (w/RDJA Engine) THERMO KING XMD (w/RDJA Engine) TORO 416-8 w/Onan Performer P220G 20 hp Twin Engine TORO 416-8 w/Onan Performer P220G 20 hp Twin Engine VERMEER LM20 w/Onan Gas Engine VERMEER LM20 w/Onan Gas Engine VERMEER M220 w/Onan Gas Engine VERMEER M220 w/Onan Gas Engine WHEEL HORSE D160 w/Onan Engine WHEEL HORSE D160 w/Onan Engine - Comparison
COMPETITOR NAME COMPETITOR PART # ACDelco PF56 ACDelco PH400 ACDelco PFL400ACL ACDelco PFL400AFCL ACDelco PFL400A Alliance Parts ABP/N10G-LF3339 Amsoil EAO34 Amsoil ASF34 Atlas F-18 Auto Extra 61851516 Autopar - Archived FE215 Autopro 2516 Autovalue 1-3600 Autowize A16 Award AOF-195 Baldwin B243 Beck/Arnley 041-8095 Big A 92516 Big A 92762 Big A 92764 Bolens 277233 Bosch D3422 Bosch 72143WS Bosch 3422 Bravo B195 Cam2 C195 Canada Tire 17-17881-8 Car Care IOF3600 Carquest 85764 Carquest R85516 Carquest R85516MP Carquest 85762 Carquest 85516 Carquest B195 Carquest 84301 Carquest Premium Filters 85516HD Carquest Premium Filters 85516 Carquest Premium Filters 85516MP Carquest Premium Filters 84301 Casite Filters CF213 Castrol CAS3600 Caterpillar 9Y-4459 Caterpillar 3I-1174 Cenex CO4000 Certified CPH3600 Champ PH400XL Champ PH400 Champion COS3600 Champion OF11 Champion 47301T Champion Filters OF11 Champion Filters COS3600 Champion Filters 47301T Chrysler 0471452AA Chrysler P550400 Chrysler 04781452BB Chrysler 4781452AA Chrysler 4781452BB Citgo Petroleum C195 Cruisemaster 223 Defense Filters DL3600 Delphi FX1022 Deutsch D485 Distance Plus D3422 Ditch Witch 155-938 Donaldson P550400 Donaldson P554770 Driveworks DW-195 Dynalife CN-400 ECOGARD X195 Econo-lube L20195 Evergard E195 Excel Ind 277233 Excel Ind 44693 Facet Industrial 400 FERGUSON R1516 Filters Inc OF3600 Firestone TF400 Firestone TF-400 Flag C-2870 Flag C-3600 Fleetguard LF3339 Fleetguard LF16212 Fleetrite LFR-83339 Ford E1EE-6714-AA Ford E4FZ-6731-A Ford E4FZ-6731-AB Ford E1FZ-6731-A Ford FL 400 FRAM Core COR3614ACC FRAM Drive FD3600 FRAM Force FF3600 FRAM Pro FP3614BP FRAM Racing HP10 FRAM Synthetic Endurance FE3600 FRAM Titanium FS3600 FRAM Tough Guard TG3600 FRAM Ultra Synthetic XG3600 FVP R1516 Gehl 083715 Gehl 600287 Gehl 78852 Gehl 078852 Gehl 83715 General Motors 710319 General Motors 19160692 General Motors 19160695 General Motors 7984225 Girling F6567 Girling F6202 Gonher GP3600 Goodyear 222-4520 Goodyear L400 Grand Prix PH400 Gravely 46602 Gravely 046602 Grease Monkey GM20195 Grease Monkey GM400 Group 7 V195 Gulf GF-223 Hastings LF134F Hastings B243 Hastings LF134 Hastings LF135 Hastings LF580 Havoline T-28 Hydra-mac 4209-146 IAPCO A-0201-001 Installer Edge ML3600 Installer Edge AL3600 International Parts Service 4-1087 ITM 11-17801 ITM 111-7801 ITM Autoparts 111-7801 ITM Autoparts 11-17801 Jaguar XR817215 Jaguar XR83332 Jaguar XR815347 Jaguar XR858593 Jaguar XR823395 Jaguar XR8E6714AB Jiffy Lube JL195 Jiffy Lube HL3600 Jiffy Lube L20195 Jlg 7022147 John Deere AM34770 John Deere HE1220445 John Deere HE1220323 John Deere TY15591 K Mart MP-14 K Mart K-14 K&N HP-2009 K&N PS-2009 Kendall K11 Koehler 277233-S Koehler 277233 Kohler 277233-S Kohler 277233 Kralinator L180 Kralinator L109 Kubota 70000-14672 Lee LF-400 Lee LF-400HP Letourneau MO400 LPM 1350-5764 LUBER-FINER PH400 Magneti Marelli 1AMFL00001 MAHLE OC479 MAHLE OC460 Mann-Filter W719/14 Mann-Filter W719/12 Mann-Filter ML 1005 Mann-Filter ML1005 Mann-Filter W719/36 Mann-Filter W818/2 Marathon MO400 Master Parts PH-400 Mazda ZZM1-23-802 Mazda ZZM1-23-802A Mazda YF09-14-302A MicroGard MGL51516 MicroGard MGL3600 MicroGard Select MSL51516 Mighty Distributing System M3600 Mighty Distributing System T3600SP Mileguard MO3600 Minit-Lube PH400 Mobil MO195 Mobil 1 M1-209 Mobil 1 M1-209A Mopar MO-452 MotoMaster MPH3600 Motorcraft FL-400S Motorcraft FL-400A3 Motorcraft FL-276 Motorcraft FL-400 Motorcraft FL-791 Motorcraft FL-400A NAPA 1764 NAPA 7301 NAPA 1516 NAPA 1762 NAPA Gold Filters 1516 NAPA Platinum Filters 41516 New Holland Agriculture 507631 New Holland Agriculture 277233 Onan 122-0445 Onan 122-0680 Onan 122B-323 Onan 122A-323 Onan 122-0323 Onan 122-0469 Onan 122-0608 One Performance 122B-323 One Performance 122-0469 One Performance 122-0323 One Performance 122-0608 One Performance 122-0680 One Performance 122A-323 One Performance 122-0445 Parts Master 61516BP Parts Master 61516 Parts Plus PH400 Pennzoil PZ-19 Pennzoil PZ19 Pentius PLB3600A Performax PO-19 Phillips 66 PO195 Pit Stop PSL11 Power Flo SL20195 Precision Tune OF-143 Premium Guard PG195 Prime Guard Filters - Archived POF195 Professionals Choice - Archived Q195 Pro-Gauge PGO-195 Promatch 971489 Promotive PH195 Pronto PO-195 Pronto PO-3600 Pro-Tec 116 PureZone 8-51516 Purflux LS194 Purolator PSL20195 Purolator L20195 Purolator L20089 Purolator BOSS PBL20195 Purolator PureONE PL20195 Purolator TECH TL20195 PurolatorONE PL20195 Quaker State QS3600BLK Quaker State QS3600 Rockhill 61516 Sears 45200 Security Filters SO195 Service Pro M195 Shell - Archived SH28 Sieg OS3600 Silverline 21516 STP Filters S3600 STP Filters S3600ML STP Filters S3600XL Sunoco O-18 Super Tech Filters ST3600 Tennant 47352 Tennant 56845 Tennant 166765 Thermo-King 11-4948 Trust PH400 Unocal 76 PF400 Valucraft V3600 Valu-test 42064 Valu-test V2516 Valvoline VO-118 Valvoline VO-23 Valvoline VO-118BP Vera 10-01568 VIPER 3600A Volkswagen 06A 115 561E WALMI WS-3600 Warner Filters PH400 Web W3600 Web W8316 Western Auto 74-5882-1 Wix 57301 Wix 51764 Wix 51516 Wix 51516XP - Installation
- Use proper protective gear. Used motor oil should not come in contact with bare skin. Engine oil may be hot.
- Place a drain pan under the oil filter and unscrew oil filter.
- Clean mounting base making sure the O-ring from the old filter is not stuck to the filter mount.
- Apply film of clean oil to filter gasket. Do not use grease.
- Screw new filter on until gasket reaches base contact. Then tighten according to instructions on filter using tightening guide markers.
- Check owner’s manual for correct oil specification viscosity and amount.
- Add oil to “full” on dipstick. Idle engine for 5 minutes and check for leaks.
- Shut off engine and recheck oil level after 5 minutes and top off as necessary.
