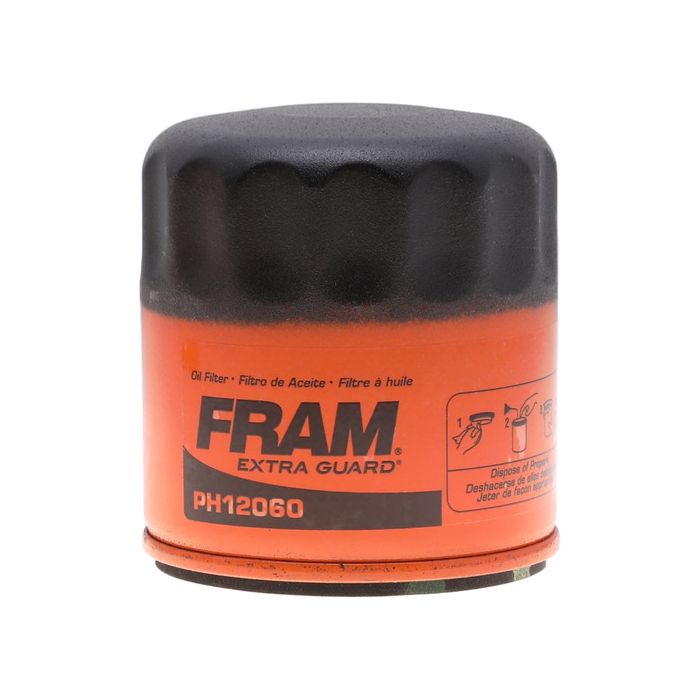

FRAM Extra Guard® Oil Filter

Name: FRAM EXTRA GUARD® OIL FILTER
SKU: PH12060

Oil Filter

SKU

PH12060

More Information
Performance	Advanced
Length	3.12
Width	3.12
Filter Type	Spin-On Canister
Grade Type	Regular
Housing Color	Orange
New Or Remanufactured	New
Reusable	No
Replaceable Filter	Yes
Meets Or Exceeds Original Equipment Manufacture Specifications	Yes
Height	3.330 (in.)
Outside Diameter	3.000 (in.)
Anti-drain Back Valve	Yes
Bypass Relief Valve	Yes
Gasket Inside Diameter	2.450 IN
Gasket Outside Diameter	2.750 IN
Gasket Thickness	0.196 IN
Gasket Type	Base
Attachment Type	Spin-On
Bypass Relief Valve Setting	19-25 PS
Filter Media Material	Cellulose/Synthetic Blend
Inlet Type	Threaded
Inside Thread Diameter	M22x1.5 MM
Non Slip Grip	Yes
Thread Size	Metric
Torque Nut	No

Description
FRAM Extra Guard® oil filters deliver advanced engine protection for everyday drivers who perform routine oil changes at OE (original equipment) recommended intervals. Equipped with SureGrip® technology, FRAM Extra Guard® oil filters provide a non-slip surface allowing for easy install and removal. The silicone anti-drain back valve ensures safe engine startups, extending the life of the oil filter for up to 10,000 miles (16,000 kilometers).
- Proven protection for up to 10,000 miles (16,000 kilometers)
- Engineered for use with synthetic or conventional motor oils
- SureGrip® technology for easy install and removal
- Filter media is a blend of fiber and resin that captures 95% of the dirt particles
- Silicone anti-drain back valve helps ensure safe engine start up
*FRAM Group testing of average filter efficiency of PH8A, PH3387A and PH4967 under ISO 4548-12 for particles greater than 20 microns.

**Greater than 3X the functional life of Nitrile ADB when tested per SAE HS806 hot oil and Anti-drain-back test.

?Not all features are available on every part number in the product line. Check the package for specific features of individual filters.

Applications

This Item Fits the Following Vehicles:

Year	Make	Model	Engine
2013	Cadillac	ATS	2.0L
2013	Cadillac	ATS	2.5L
2013	Cadillac	CTS	6.2L
2013	Chevrolet	Impala	3.6L
2013	Chevrolet	Malibu	2.5L
2013	Chevrolet	Malibu	2.0L
2014	Buick	Regal	2.0L
2014	Cadillac	ATS	2.0L
2014	Cadillac	ATS	2.5L
2014	Cadillac	CTS	6.2L
2014	Cadillac	CTS	2.0L
2014	Chevrolet	Corvette	6.2L
2014	Chevrolet	Impala	2.5L
2014	Chevrolet	Impala Limited	3.6L
2014	Chevrolet	Malibu	2.0L
2014	Chevrolet	Malibu	2.5L
2015	Buick	Regal	2.0L
2015	Cadillac	ATS	2.0L
2015	Cadillac	ATS	2.5L
2015	Cadillac	CTS	6.2L
2015	Cadillac	CTS	2.0L
2015	Chevrolet	Colorado	2.5L
2015	Chevrolet	Corvette	6.2L
2015	Chevrolet	Impala	2.5L
2015	Chevrolet	Impala Limited	3.6L
2015	Chevrolet	Malibu	2.0L
2015	Chevrolet	Malibu	2.5L
2015	GMC	Canyon	2.5L
2016	Buick	Encore	1.4L
2016	Buick	Envision	2.0L
2016	Buick	Regal	2.0L
2016	Cadillac	ATS	2.0L
2016	Cadillac	ATS	2.5L
2016	Cadillac	CT6	2.0L
2016	Cadillac	CTS	6.2L
2016	Cadillac	CTS	2.0L
2016	Chevrolet	Camaro	6.2L
2016	Chevrolet	Camaro	2.0L
2016	Chevrolet	Colorado	2.5L
2016	Chevrolet	Corvette	6.2L
2016	Chevrolet	Cruze	1.4L
2016	Chevrolet	Cruze	1.4L
2016	Chevrolet	Cruze NG	1.4L
2016	Chevrolet	Impala	2.5L
2016	Chevrolet	Impala Limited	3.6L
2016	Chevrolet	Malibu	2.0L
2016	Chevrolet	Malibu	1.5L
2016	Chevrolet	Malibu Limited	2.5L
2016	Chevrolet	Spark	1.4L
2016	Chevrolet	Volt	1.5L
2016	GMC	Canyon	2.5L
2017	Buick	Encore	1.4L
2017	Buick	Envision	2.5L
2017	Buick	Envision	2.0L
2017	Buick	Regal	2.0L
2017	Cadillac	ATS	2.0L
2017	Cadillac	ATS	2.5L
2017	Cadillac	CT6	2.0L
2017	Cadillac	CTS	6.2L
2017	Cadillac	CTS	2.0L
2017	Chevrolet	Camaro	6.2L
2017	Chevrolet	Camaro	2.0L
2017	Chevrolet	Colorado	2.5L
2017	Chevrolet	Corvette	6.2L
2017	Chevrolet	Cruze	1.4L
2017	Chevrolet	Impala	2.5L
2017	Chevrolet	Malibu	2.0L
2017	Chevrolet	Malibu	1.5L
2017	Chevrolet	Spark	1.4L
2017	Chevrolet	Volt	1.5L
2017	GMC	Acadia	2.5L
2017	GMC	Canyon	2.5L
2018	Buick	Encore	1.4L
2018	Buick	Envision	2.5L
2018	Buick	Envision	2.0L
2018	Buick	LaCrosse	2.5L
2018	Buick	Regal Sportback	2.0L
2018	Buick	Regal TourX	2.0L
2018	Cadillac	ATS	2.0L
2018	Cadillac	CT6	2.0L
2018	Cadillac	CTS	2.0L
2018	Cadillac	CTS	6.2L
2018	Chevrolet	Camaro	6.2L
2018	Chevrolet	Camaro	2.0L
2018	Chevrolet	Colorado	2.5L
2018	Chevrolet	Corvette	6.2L
2018	Chevrolet	Cruze	1.4L
2018	Chevrolet	Equinox	2.0L
2018	Chevrolet	Equinox	1.5L
2018	Chevrolet	Impala	2.5L
2018	Chevrolet	Malibu	2.0L
2018	Chevrolet	Malibu	1.5L
2018	Chevrolet	Spark	1.4L
2018	Chevrolet	Traverse	2.0L
2018	Chevrolet	Volt	1.5L
2018	GMC	Acadia	2.5L
2018	GMC	Canyon	2.5L
2018	GMC	Terrain	2.0L
2018	GMC	Terrain	1.5L
2019	Buick	Encore	1.4L
2019	Buick	Envision	2.5L
2019	Buick	Envision	2.0L
2019	Buick	LaCrosse	2.5L
2019	Buick	Regal Sportback	2.0L
2019	Buick	Regal TourX	2.0L
2019	Cadillac	ATS	2.0L
2019	Cadillac	CTS	2.0L
2019	Cadillac	CTS	6.2L
2019	Chevrolet	Blazer	2.5L
2019	Chevrolet	Camaro	6.2L
2019	Chevrolet	Camaro	2.0L
2019	Chevrolet	Colorado	2.5L
2019	Chevrolet	Corvette	6.2L
2019	Chevrolet	Cruze	1.4L
2019	Chevrolet	Equinox	2.0L
2019	Chevrolet	Equinox	1.5L
2019	Chevrolet	Impala	2.5L
2019	Chevrolet	Malibu	2.0L
2019	Chevrolet	Malibu	1.5L
2019	Chevrolet	Spark	1.4L
2019	Chevrolet	Traverse	2.0L
2019	Chevrolet	Volt	1.5L
2019	GMC	Acadia	2.5L
2019	GMC	Canyon	2.5L
2019	GMC	Terrain	2.0L
2019	GMC	Terrain	1.5L
2020	Buick	Encore GX	1.2L
2020	Buick	Envision	2.5L
2020	Buick	Envision	2.0L
2020	Buick	Regal Sportback	2.0L
2020	Buick	Regal TourX	2.0L
2020	Chevrolet	Blazer	2.5L
2020	Chevrolet	Camaro	6.2L
2020	Chevrolet	Camaro	2.0L
2020	Chevrolet	Colorado	2.5L
2020	Chevrolet	Corvette	6.2L
2020	Chevrolet	Equinox	2.0L
2020	Chevrolet	Equinox	1.5L
2020	Chevrolet	Malibu	2.0L
2020	Chevrolet	Malibu	1.5L
2020	Chevrolet	Spark	1.4L
2020	GMC	Acadia	2.5L
2020	GMC	Canyon	2.5L
2020	GMC	Terrain	2.0L
2020	GMC	Terrain	1.5L
2020	MG	HS	1.5L
2021	Buick	Encore	1.4L
2021	Buick	Encore GX	1.2L
2021	Chevrolet	Blazer	2.5L
2021	Chevrolet	Camaro	6.2L
2021	Chevrolet	Camaro	2.0L
2021	Chevrolet	Colorado	2.5L
2021	Chevrolet	Corvette	6.2L
2021	Chevrolet	Equinox	1.5L
2021	Chevrolet	Malibu	2.0L
2021	Chevrolet	Malibu	1.5L
2021	Chevrolet	Onix	1.0L
2021	Chevrolet	Onix	1.2L
2021	Chevrolet	Spark	1.4L
2021	Chevrolet	Trailblazer	1.2L
2021	Chevrolet	Trax	1.4L
2021	GMC	Acadia	2.5L
2021	GMC	Canyon	2.5L
2021	GMC	Terrain	2.0L
2021	GMC	Terrain	1.5L
2021	MG	HS	1.5L
2022	Buick	Encore	1.4L
2022	Buick	Encore GX	1.2L
2022	Cadillac	CT5	6.2L
2022	Chevrolet	Blazer	2.5L
2022	Chevrolet	Camaro	6.2L
2022	Chevrolet	Camaro	2.0L
2022	Chevrolet	Colorado	2.5L
2022	Chevrolet	Corvette	6.2L
2022	Chevrolet	Equinox	1.5L
2022	Chevrolet	Malibu	2.0L
2022	Chevrolet	Malibu	1.5L
2022	Chevrolet	Onix	1.0L
2022	Chevrolet	Onix	1.2L
2022	Chevrolet	Spark	1.4L
2022	Chevrolet	Trailblazer	1.2L
2022	Chevrolet	Trax	1.4L
2022	GMC	Canyon	2.5L
2022	GMC	Terrain	1.5L
2022	MG	HS	1.5L
2023	Buick	Encore GX	1.2L
2023	Cadillac	CT5	6.2L
2023	Chevrolet	Camaro	6.2L
2023	Chevrolet	Camaro	2.0L
2023	Chevrolet	Corvette	6.2L
2023	Chevrolet	Equinox	1.5L
2023	Chevrolet	Malibu	1.5L
2023	Chevrolet	Onix	1.0L
2023	Chevrolet	Trailblazer	1.2L
2023	Ford	Escape	2.0L
2023	GMC	Terrain	1.5L
2023	Lincoln	Corsair	2.0L
2023	MG	HS	1.5L
2024	Buick	Encore GX	1.2L
2024	Buick	Envista	1.2L
2024	Cadillac	CT5	6.2L
2024	Chevrolet	Camaro	6.2L
2024	Chevrolet	Corvette	6.2L
2024	Chevrolet	Equinox	1.5L
2024	Chevrolet	Malibu	1.5L
2024	Chevrolet	Onix	1.0L
2024	Chevrolet	Trailblazer	1.2L
2024	Chevrolet	Trax	1.2L
2024	Ford	Escape	2.0L
2024	Ford	Mustang	2.3L
2024	GMC	Terrain	1.5L
2024	Lincoln	Corsair	2.0L
2024	Lincoln	Nautilus	2.0L
2024	MG	HS	1.5L
2025	Buick	Encore GX	1.2L
2025	Buick	Envista	1.2L
2025	Cadillac	CT5	6.2L
2025	Chevrolet	Corvette	6.2L
2025	Chevrolet	Equinox	1.5L
2025	Chevrolet	Malibu	1.5L
2025	Chevrolet	Onix	1.0L
2025	Chevrolet	Trailblazer	1.2L
2025	Chevrolet	Trax	1.2L
2025	Ford	Bronco	2.3L
2025	Ford	Bronco Sport	2.0L
2025	Ford	Escape	2.0L
2025	Ford	Explorer	2.3L
2025	Ford	Maverick	2.0L
2025	Ford	Mustang	2.3L
2025	Ford	Ranger	2.3L
2025	GMC	Terrain	1.5L
2025	Lincoln	Corsair	2.0L
2025	Lincoln	Nautilus	2.0L
2026	Buick	Encore GX	1.2L
2026	Buick	Envista	1.2L
2026	Cadillac	CT5	6.2L
2026	Chevrolet	Corvette	6.2L
2026	Chevrolet	Equinox	1.5L
2026	Chevrolet	Onix	1.0L
2026	Chevrolet	Trailblazer	1.2L
2026	Chevrolet	Trax	1.2L
2026	Ford	Bronco	2.3L
2026	Ford	Bronco Sport	2.0L
2026	Ford	Escape	2.0L
2026	Ford	Explorer	2.3L
2026	Ford	Maverick	2.0L
2026	Ford	Mustang	2.3L
2026	Ford	Ranger	2.3L
2026	GMC	Terrain	1.5L
2026	Lincoln	Corsair	2.0L
2026	Lincoln	Nautilus	2.0L
2027	Buick	Envista	1.2L
2027	Chevrolet	Corvette	6.7L
2027	Chevrolet	Equinox	1.5L
2027	Ford	Explorer	2.3L
2027	GMC	Terrain	1.5L

Interchange

Compatible competitor and OE part numbers

Brand	Part Number
ACDelco	PF64
ACDelco	UPF64R
Carquest Premium Filters	95140
Carquest Standard Filters	R95140
Certified	CPH12060
Champ	PH10064
DDXX	MO2222
Defense Filters	DL12060
ECOGARD	S11642
FRAM Core	COR12060ACC
FRAM Drive	FD12060
FRAM Force	FF12060
FRAM Pro	FP12060BP
FRAM Synthetic Endurance	FE12060
FRAM Titanium	FS12060
FRAM Tough Guard	TG12060
FRAM Ultra Synthetic	XG12060
General Motors	12640445
General Motors	12667194
General Motors	12670058
General Motors	12674698
General Motors	12683286
General Motors	12696048
General Motors	12706595
General Motors	25206377
General Motors	650237
HQCY	MO2222
LUBER-FINER	PH10064
MicroGard	MGL10290
MicroGard Select	MSL10290
Mighty Distributing System	M9509SP
Mobil 1	M1-114A
MotoMaster	MPH12060
NAPA	100290
NAPA Gold Filters	7060
NAPA Platinum Filters	4100290
NAPA Platinum Filters	47060
NAPA ProSelect Filters	2100290
NAPA ProSelect Filters	27060
NAPA Silver Filters	3100290
NAPA Silver Filters	37060
Parts Master	WL610290
Parts Master	WL610290BP
Parts Master	WL610290X
Pennzoil	PZ194
Premium Guard	UPG64R
Purolator	L11403
Purolator BOSS	PBL11403
Purolator TECH	TL11403
PurolatorONE	PL11403
Service Champ	HP2222
Service Champ	OF2222
STP	S12060
STP Filters	S12060
STP Filters	S12060XL
Tough Guard	TG12060
Ultra	XG12060
Wix	WL10290
Wix	WL10290XP

Installation
1. Use proper protective gear. Used motor oil should not come in contact with bare skin. Engine oil may be hot.
2. Place a drain pan under the oil filter and unscrew oil filter.
3. Clean mounting base making sure the O-ring from the old filter is not stuck to the filter mount.
4. Apply film of clean oil to filter gasket. Do not use grease.
5. Screw new filter on until gasket reaches base contact. Then tighten according to instructions on filter using tightening guide markers.
6. Check owner’s manual for correct oil specification viscosity and amount.
7. Add oil to “full” on dipstick. Idle engine for 5 minutes and check for leaks.
8. Shut off engine and recheck oil level after 5 minutes and top off as necessary.
