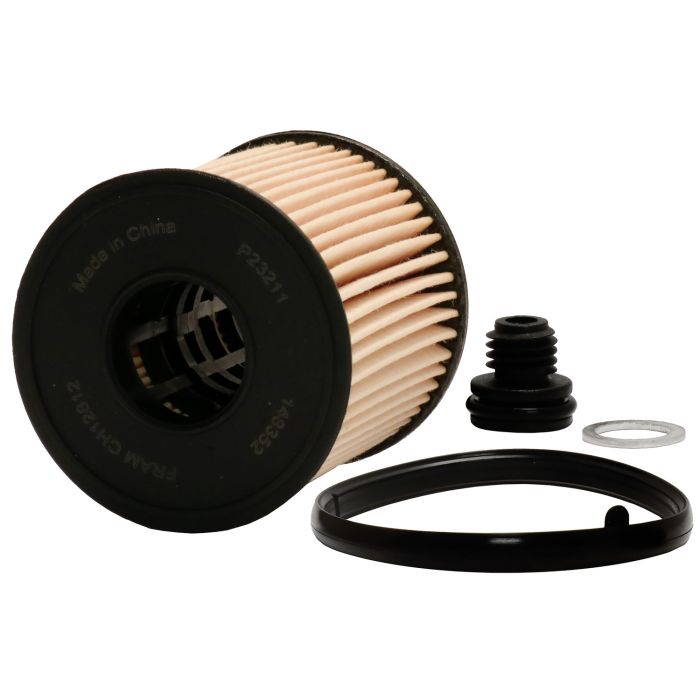

FRAM Extra Guard® Oil Filter

Add to Compare
SKU
CH12812
More Information
Height (Inch) 2.5
Outer Diameter Top (Inch) 2.579
Anti-Drain Back Valve No
Bypass Relief Valve No
Drain Plug Included Yes
Filter Media Material Cellulose/Synthetic Blend
Inside Diameter Bottom (Inch) 0.984
O-Ring Inside Diameter (Inch) 0.591
O-Ring Outside Diameter (Inch) 0.709
O-Ring Thickness (Inch) 0.118
O-Rings Included Yes
Outer Diameter Bottom (Inch) 2.579
Top Inside Diameter (Inch) 0.984
Torque Nut No
Washer Inside Diameter (Inch) 0.563
Washer Outside Diameter (Inch) 0.768
Washer Thickness (Inch) 0.059
More Information
Where To Shop
Search
  • Description

    FRAM Extra Guard® oil filters deliver advanced engine protection for everyday drivers who perform routine oil changes at OE (original equipment) recommended intervals. Engineered for conventional and synthetic motor oil, Extra Guard offers proven engine protection for up to 10,000 miles (16,000 kilometers).

    • Proven protection for up to 10,000 miles (16,000 kilometers)
    • Engineered for use with synthetic or conventional motor oils
    • Filter media is a blend of fiber and resin that captures 95%?of the dirt particles
    • The perfect balance of dirt-trapping efficiency and dirt-holding capacity
    • Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today’s engines

    *FRAM Group testing of average filter efficiency of PH8A, PH3387A and PH4967 under ISO 4548-12 for particles greater than 20 microns.

    **Greater than 3X the functional life of Nitrile ADB when tested per SAE HS806 hot oil and Anti-drain-back test.

    ?Not all features are available on every part number in the product line. Check the package for specific features of individual filters.

  • Applications

    This Item Fits the Following Vehicles:

    Year Make Model Engine
    25-21 HYUNDAI ELANTRA L4-2.0L
    25-22 HYUNDAI KONA L4-2.0L
    25-20 HYUNDAI SONATA L4-2.0L
    2025 KIA K4 L4-2.0L
  • Comparison
    COMPETITOR NAME COMPETITOR PART #
    Carquest 95332
    FRAM Tough Guard TG12812
    FRAM Ultra Synthetic XG12812
    Hyundai 263502J000
    LUBER-FINER P1099
    NAPA Gold Filters 100521
    Premium Guard PG99602EX
    PurolatorONE PL11760
    Service Champ CF1760
    STP Filters S45028
    STP Filters S45028XL
    Valvoline VO-216
    Wix WL10521
  • Installation
    1. Remove drain plug from housing cap if present and allow oil to drain from cap. Remove housing cap old gaskets/O-Rings and filter element. Discard the used filter element and gaskets/O-Rings in the proper manner.
    2. Clean filter housing components and apply a light coating of clean engine oil to the new provided gaskets/O-Rings. Install being careful to avoid damage to the gaskets/O-Rings. Avoid twisting of the gaskets/O-Rings.
    3. Install new filter element into the housing cap. Reinstall the housing cap and tighten to the proper installation torque as listed on the housing cap or in the service manual. Reinstall the housing cap drain if present to the proper installation torque.
