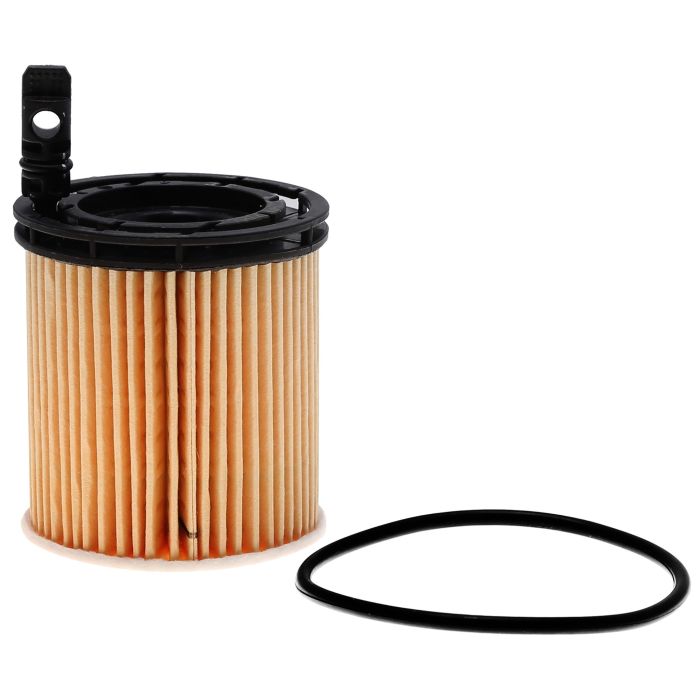

FRAM Extra Guard® Oil Filter

Oil Filter
SKU
CH12782
More Information
Performance Advanced
Length 2.76
Width 2.76
Filter Type Cartridge
Grade Type Regular
Housing Color NA
New Or Remanufactured New
Reusable No
Washable No
Replaceable Filter Yes
Meets Or Exceeds Original Equipment Manufacture Specifications Yes
Height 4.33
Outside Diameter Top 2.6 IN
Bottom Inside Diameter 1 IN
Anti-drain Back Valve No
Bypass Relief Valve No
Filter Media Material Cellulose/Synthetic Blend
Gasket Or Seal Included Yes
Non Slip Grip No
O-ring (1) Inside Diameter 0.945 IN
O-ring (1) Outside Diameter 1.07 IN
O-ring (1) Thickness 0.157 IN
O-ring Inside Diameter 2.893 IN
O-ring Outside Diameter 3.03 IN
O-ring Thickness 0.137 IN
O-rings Included Yes
Outer Diameter Bottom 2.58 IN
Top Inside Diameter 0.75 IN
Torque Nut No
Washer (1) Inside Diameter 0.571 IN
Washer (1) Outside Diameter 0.807 IN
Washer (1) Thickness 0.079 IN
  • Description

    FRAM Extra Guard® oil filters deliver advanced engine protection for everyday drivers who perform routine oil changes at OE (original equipment) recommended intervals. Engineered for conventional and synthetic motor oil, Extra Guard offers proven engine protection for up to 10,000 miles (16,000 kilometers).

    • Proven protection for up to 10,000 miles (16,000 kilometers)
    • Engineered for use with synthetic or conventional motor oils
    • Filter media is a blend of fiber and resin that captures 95%?of the dirt particles
    • The perfect balance of dirt-trapping efficiency and dirt-holding capacity
    • Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today’s engines

    *FRAM Group testing of average filter efficiency of PH8A, PH3387A and PH4967 under ISO 4548-12 for particles greater than 20 microns.

    **Greater than 3X the functional life of Nitrile ADB when tested per SAE HS806 hot oil and Anti-drain-back test.

    ?Not all features are available on every part number in the product line. Check the package for specific features of individual filters.

  • Applications

    This Item Fits the Following Vehicles:

    Year Make Model Engine
    2020 Hyundai Accent 1.6L
    2020 Hyundai Sonata 1.6L
    2020 Hyundai Venue 1.6L
    2020 Kia Rio 1.6L
    2021 Hyundai Accent 1.6L
    2021 Hyundai Creta 1.5L
    2021 Hyundai Elantra 1.6L
    2021 Hyundai Santa Fe 1.6L
    2021 Hyundai Sonata 1.6L
    2021 Hyundai Venue 1.6L
    2021 Kia K5 1.6L
    2021 Kia Rio 1.6L
    2021 Kia Sorento 1.6L
    2022 Hyundai Accent 1.6L
    2022 Hyundai Creta 1.5L
    2022 Hyundai Elantra 1.6L
    2022 Hyundai Kona 1.6L
    2022 Hyundai Santa Fe 1.6L
    2022 Hyundai Sonata 1.6L
    2022 Hyundai Tucson 1.6L
    2022 Hyundai Venue 1.6L
    2022 Kia K5 1.6L
    2022 Kia Rio 1.6L
    2022 Kia Sorento 1.6L
    2023 Hyundai Creta 1.5L
    2023 Hyundai Elantra 1.6L
    2023 Hyundai Kona 1.6L
    2023 Hyundai Santa Fe 1.6L
    2023 Hyundai Sonata 1.6L
    2023 Hyundai Tucson 1.6L
    2023 Hyundai Venue 1.6L
    2023 Kia K5 1.6L
    2023 Kia Rio 1.6L
    2023 Kia Sorento 1.6L
    2023 Kia Sportage 1.6L
    2024 Hyundai Creta 1.5L
    2024 Hyundai Elantra 1.6L
    2024 Hyundai Kona 1.6L
    2024 Hyundai Santa Fe 1.6L
    2024 Hyundai Tucson 1.6L
    2024 Hyundai Venue 1.6L
    2024 Kia K5 1.6L
    2024 Kia Seltos 1.6L
    2024 Kia Seltos 1.5L
    2024 Kia Seltos 1.6L
    2024 Kia Sonet 1.5L
    2024 Kia Sorento 1.6L
    2024 Kia Sportage 1.6L
    2025 Hyundai Creta 1.5L
    2025 Hyundai Elantra 1.6L
    2025 Hyundai Kona 1.6L
    2025 Hyundai Santa Fe 1.6L
    2025 Hyundai Tucson 1.6L
    2025 Hyundai Venue 1.6L
    2025 Kia Carnival 1.6L
    2025 Kia K4 1.6L
    2025 Kia K4 1.6L
    2025 Kia Seltos 1.6L
    2025 Kia Seltos 1.6L
    2025 Kia Seltos 1.5L
    2025 Kia Seltos 1.6L
    2025 Kia Sonet 1.5L
    2025 Kia Sorento 1.6L
    2025 Kia Sportage 1.6L
    2026 Hyundai Creta 1.5L
    2026 Hyundai Elantra 1.6L
    2026 Hyundai Kona 1.6L
    2026 Hyundai Santa Fe 1.6L
    2026 Hyundai Tucson 1.6L
    2026 Hyundai Venue 1.6L
    2026 Kia Carnival 1.6L
    2026 Kia K4 1.6L
    2026 Kia K4 1.6L
    2026 Kia Seltos 1.5L
    2026 Kia Seltos 1.6L
    2026 Kia Seltos 1.6L
    2026 Kia Sonet 1.5L
    2026 Kia Sorento 1.6L
    2026 Kia Sportage 1.6L
    2027 Hyundai Kona 1.6L
    2027 Hyundai Santa Fe 1.6L
    2027 Kia Carnival 1.6L
    2027 Kia K4 1.6L
    2027 Kia K4 1.6L
    2027 Kia Seltos 1.6L
    2027 Kia Sorento 1.6L
    2027 Kia Sportage 1.6L
  • Interchange

    Compatible competitor and OE part numbers

    Brand Part Number
    Beck/Arnley 041-0888
    Carquest Premium Filters 95325
    FRAM Drive FD12782
    FRAM Force FF12782
    FRAM Titanium FS12782
    Hyundai 26350-2M000
    LUBER-FINER P1083
    MicroGard Select MSL10473
    Mighty Distributing System M9040
    NAPA Gold Filters 100473
    Premium Guard PG99518EX
    Premium Guard Extended Life PG99518EX
    PurolatorONE PL11520
    Service Champ CF1520
    STP S45017
    STP Filters S45017
    Valvoline VO-206
    Wix WL10473
  • Installation
    1. Remove drain plug from housing cap if present and allow oil to drain from cap. Remove housing cap old gaskets/O-Rings and filter element. Discard the used filter element and gaskets/O-Rings in the proper manner.
    2. Clean filter housing components and apply a light coating of clean engine oil to the new provided gaskets/O-Rings. Install being careful to avoid damage to the gaskets/O-Rings. Avoid twisting of the gaskets/O-Rings.
    3. Install new filter element into the housing cap. Reinstall the housing cap and tighten to the proper installation torque as listed on the housing cap or in the service manual. Reinstall the housing cap drain if present to the proper installation torque.
