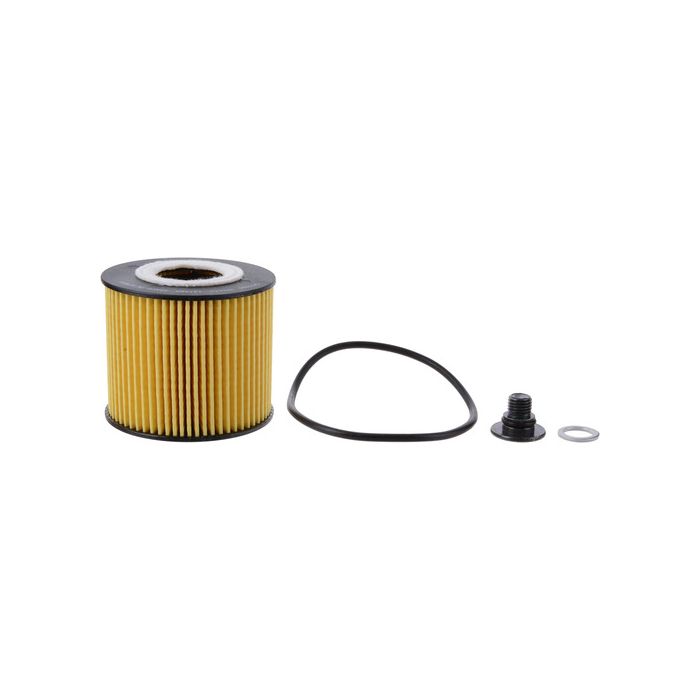

FRAM EXTRA GUARD<sup>®</sup> OIL FILTER

FRAM Extra Guard® Oil Filter

Add to Compare
Oil Filter
SKU
CH11935
More Information
Performance Advanced
Length 3.35
Width 3.35
Filter Type Cartridge
Grade Type Regular
Housing Color NA
New Or Remanufactured New
Reusable No
Washable No
Replaceable Filter Yes
Meets Or Exceeds Original Equipment Manufacture Specifications Yes
Height 2.834 (in.)
Outside Diameter Top 3.248 IN
Bottom Inside Diameter 1.299 IN
Anti-drain Back Valve No
Bypass Relief Valve No
Drain Plug Included Yes
Filter Media Material Cellulose/Synthetic Blend
Inside Diameter Bottom 1.299 (in.)
Non Slip Grip No
O-ring (1) Inside Diameter 0.472 IN
O-ring (1) Outside Diameter 0.566 IN
O-ring (1) Thickness 0.094 IN
O-ring Inside Diameter 3.661 IN
O-ring Outside Diameter 3.818 IN
O-ring Thickness 0.157 IN
O-rings Included Yes
Outer Diameter Bottom 3.248 IN
Outer Diameter Top 3.248 (in.)
Top Inside Diameter 1.299 IN
Torque Nut No
Washer Inside Diameter 0.559 IN
Washer Outside Diameter 0.779 IN
Washer Thickness 0.078 IN
  • Description

    FRAM Extra Guard® oil filters deliver advanced engine protection for everyday drivers who perform routine oil changes at OE (original equipment) recommended intervals. Engineered for conventional and synthetic motor oil, Extra Guard offers proven engine protection for up to 10,000 miles (16,000 kilometers).

    • Proven protection for up to 10,000 miles (16,000 kilometers)
    • Engineered for use with synthetic or conventional motor oils
    • Filter media is a blend of fiber and resin that captures 95%?of the dirt particles
    • The perfect balance of dirt-trapping efficiency and dirt-holding capacity
    • Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today’s engines

    *FRAM Group testing of average filter efficiency of PH8A, PH3387A and PH4967 under ISO 4548-12 for particles greater than 20 microns.

    **Greater than 3X the functional life of Nitrile ADB when tested per SAE HS806 hot oil and Anti-drain-back test.

    ?Not all features are available on every part number in the product line. Check the package for specific features of individual filters.

  • Applications

    This Item Fits the Following Vehicles:

    Year Make Model Engine
    2015 Hyundai Genesis 5.0L
    2016 Hyundai Genesis 5.0L
    2017 Genesis G80 5.0L
    2017 Genesis G90 5.0L
    2018 Genesis G80 5.0L
    2018 Genesis G90 5.0L
    2019 Genesis G80 5.0L
    2019 Genesis G90 5.0L
    2020 Genesis G80 5.0L
    2020 Genesis G90 5.0L
    2021 Genesis G90 5.0L
  • Interchange

    Compatible competitor and OE part numbers

    Brand Part Number
    Carquest 94720
    Carquest Premium Filters 94720
    Hyundai 26320-3F500
    Knecht OX977
    LUBER-FINER P1027
    NAPA 100067
    NAPA Gold Filters 100067
    Purolator L19174
    Service Champ WP1027
    Warner WP1027
    Warner Filters WP1027
    Wix WL10067
  • Installation
    1. Remove drain plug from housing cap if present and allow oil to drain from cap. Remove housing cap old gaskets/O-Rings and filter element. Discard the used filter element and gaskets/O-Rings in the proper manner.
    2. Clean filter housing components and apply a light coating of clean engine oil to the new provided gaskets/O-Rings. Install being careful to avoid damage to the gaskets/O-Rings. Avoid twisting of the gaskets/O-Rings.
    3. Install new filter element into the housing cap. Reinstall the housing cap and tighten to the proper installation torque as listed on the housing cap or in the service manual. Reinstall the housing cap drain if present to the proper installation torque.
