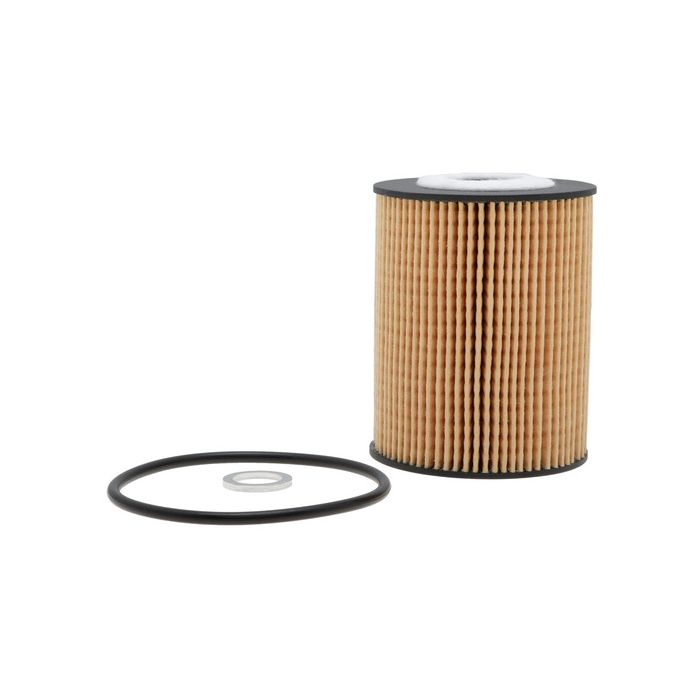

FRAM Extra Guard® Oil Filter

Add to Compare
SKU
CH11934
More Information
Height (Inch) 3.267
Outer Diameter Top (Inch) 2.578
Anti-Drain Back Valve No
Bypass Relief Valve No
Filter Media Material Cellulose/Synthetic Blend
Inside Diameter Bottom (Inch) 1.102
O-Ring Inside Diameter (Inch) 2.874
O-Ring Outside Diameter (Inch) 3.007
O-Ring Thickness (Inch) 0.133
O-Rings Included Yes
Outer Diameter Bottom (Inch) 2.578
Top Inside Diameter (Inch) 1.102
Torque Nut No
Washer Inside Diameter (Inch) 0.559
Washer Outside Diameter (Inch) 0.779
Washer Thickness (Inch) 0.078
More Information
Where To Shop
Search
  • Description

    FRAM Extra Guard® oil filters deliver advanced engine protection for everyday drivers who perform routine oil changes at OE (original equipment) recommended intervals. Engineered for conventional and synthetic motor oil, Extra Guard offers proven engine protection for up to 10,000 miles (16,000 kilometers).

    • Proven protection for up to 10,000 miles (16,000 kilometers)
    • Engineered for use with synthetic or conventional motor oils
    • Filter media is a blend of fiber and resin that captures 95%?of the dirt particles
    • The perfect balance of dirt-trapping efficiency and dirt-holding capacity
    • Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today’s engines

    *FRAM Group testing of average filter efficiency of PH8A, PH3387A and PH4967 under ISO 4548-12 for particles greater than 20 microns.

    **Greater than 3X the functional life of Nitrile ADB when tested per SAE HS806 hot oil and Anti-drain-back test.

    ?Not all features are available on every part number in the product line. Check the package for specific features of individual filters.

  • Applications

    This Item Fits the Following Vehicles:

    Year Make Model Engine
    20-17 GENESIS G80 V6-3.8L
    16-15 HYUNDAI GENESIS V6-3.8L
    25-20 HYUNDAI PALISADE V6-3.8L
    20-17 KIA CADENZA V6-3.3L
    21-19 KIA SEDONA V6-3.3L
    20-19 KIA SORENTO V6-3.3L
    25-20 KIA TELLURIDE V6-3.8L
  • Comparison
    COMPETITOR NAME COMPETITOR PART #
    Baldwin P40143
    Carquest 94719
    Carquest Premium Filters 94719
    Champ P1026
    ECOGARD X10430
    FRAM Drive FD11934
    FRAM Extra Guard CH11934
    FRAM Force FF11934
    FRAM Pro FP11934BP
    FRAM Titanium FS11934
    FRAM Ultra Synthetic XG11934
    Hastings LF733
    Hyundai 26320-3CKB0
    K&N HP-7035
    Knecht OX355
    LUBER-FINER P1026
    MAHLE OX255D
    MAHLE OX355D
    MicroGard Select MSL10033
    Mighty Distributing System MX9017
    Mobil P1026
    Mobil 1 M1C-156A
    MotoMaster MCH11934
    NAPA Gold Filters 100033
    Parts Master WL610033
    Premium Guard PG99016
    Purolator L18179
    Service Champ CF8179
    STP S11934XL
    STP Filters S11934XL
    Valvoline VO-167
    Warner WP1026
    Warner Filters WP1026
    Wix WL10033
  • Installation
    1. Remove drain plug from housing cap if present and allow oil to drain from cap. Remove housing cap old gaskets/O-Rings and filter element. Discard the used filter element and gaskets/O-Rings in the proper manner.
    2. Clean filter housing components and apply a light coating of clean engine oil to the new provided gaskets/O-Rings. Install being careful to avoid damage to the gaskets/O-Rings. Avoid twisting of the gaskets/O-Rings.
    3. Install new filter element into the housing cap. Reinstall the housing cap and tighten to the proper installation torque as listed on the housing cap or in the service manual. Reinstall the housing cap drain if present to the proper installation torque.
