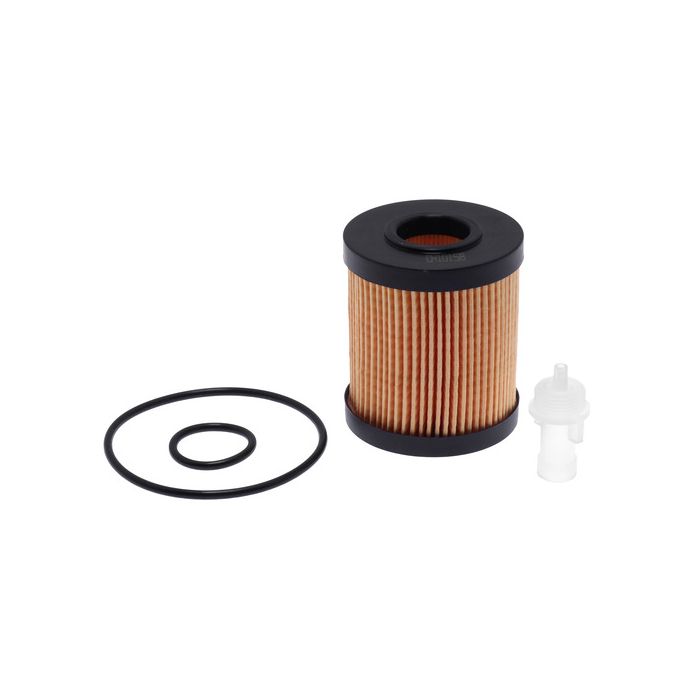

FRAM Extra Guard® Oil Filter
SKU
CH10158
| Performance | No Grade |
|---|---|
| Height | 3.228 (in.) |
| Anti-drain Back Valve | No |
| Bypass Relief Valve | No |
| Filter Media Material | Cellulose/Synthetic Blend |
| Inside Diameter Bottom | 1.102 (in.) |
| Non Slip Grip | No |
| O-ring (1) Inside Diameter | 1.103 (in.) |
| O-ring (1) Outside Diameter | 1.241 (in.) |
| O-ring (1) Thickness | 0.138 (in.) |
| O-ring Inside Diameter | 3.152 (in.) |
| O-ring Outside Diameter | 3.290 (in.) |
| O-ring Thickness | 0.138 (in.) |
| O-rings Included | Yes |
| Outer Diameter Bottom | 2.756 (in.) |
| Outer Diameter Top | 2.756 (in.) |
| Top Inside Diameter | 1.102 (in.) |
| Torque Nut | No |
- Description
FRAM Extra Guard® oil filters deliver advanced engine protection for everyday drivers who perform routine oil changes at OE (original equipment) recommended intervals. Engineered for conventional and synthetic motor oil, Extra Guard offers proven engine protection for up to 10,000 miles (16,000 kilometers).
- Proven protection for up to 10,000 miles (16,000 kilometers)
- Engineered for use with synthetic or conventional motor oils
- Filter media is a blend of fiber and resin that captures 95%?of the dirt particles
- The perfect balance of dirt-trapping efficiency and dirt-holding capacity
- Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today’s engines
*FRAM Group testing of average filter efficiency of PH8A, PH3387A and PH4967 under ISO 4548-12 for particles greater than 20 microns.
**Greater than 3X the functional life of Nitrile ADB when tested per SAE HS806 hot oil and Anti-drain-back test.
?Not all features are available on every part number in the product line. Check the package for specific features of individual filters. - Applications
This Item Fits the Following Vehicles:
Year Make Model Engine 2006 Lexus GS300 3.0L 2006 Lexus IS250 2.5L 2006 Lexus IS350 3.5L 2007 Lexus GS350 3.5L 2007 Lexus GS450h 3.5L 2007 Lexus IS250 2.5L 2007 Lexus IS350 3.5L 2007 Lexus LS460 4.6L 2008 Lexus GS350 3.5L 2008 Lexus GS450h 3.5L 2008 Lexus GS460 4.6L 2008 Lexus IS250 2.5L 2008 Lexus IS350 3.5L 2008 Lexus LS460 4.6L 2008 Lexus LS600h 5.0L 2009 Lexus GS350 3.5L 2009 Lexus GS450h 3.5L 2009 Lexus GS460 4.6L 2009 Lexus IS250 2.5L 2009 Lexus IS350 3.5L 2009 Lexus LS460 4.6L 2009 Lexus LS600h 5.0L 2010 Lexus GS350 3.5L 2010 Lexus GS450h 3.5L 2010 Lexus GS460 4.6L 2010 Lexus GX460 4.6L 2010 Lexus IS250 2.5L 2010 Lexus IS350 3.5L 2010 Lexus LS460 4.6L 2010 Lexus LS600h 5.0L 2010 Toyota 4Runner 4.0L 2010 Toyota FJ Cruiser 4.0L 2011 Lexus GS350 3.5L 2011 Lexus GS450h 3.5L 2011 Lexus GS460 4.6L 2011 Lexus GX460 4.6L 2011 Lexus IS250 2.5L 2011 Lexus IS350 3.5L 2011 Lexus LS460 4.6L 2011 Lexus LS600h 5.0L 2011 Toyota 4Runner 4.0L 2011 Toyota FJ Cruiser 4.0L 2011 Toyota Tundra 4.0L 2012 Lexus GX460 4.6L 2012 Lexus IS250 2.5L 2012 Lexus IS350 3.5L 2012 Lexus LS460 4.6L 2012 Lexus LS600h 5.0L 2012 Toyota 4Runner 4.0L 2012 Toyota FJ Cruiser 4.0L 2012 Toyota Tundra 4.0L 2013 Lexus GS350 3.5L 2013 Lexus GS450h 3.5L 2013 Lexus GX460 4.6L 2013 Lexus IS250 2.5L 2013 Lexus IS350 3.5L 2013 Lexus LS460 4.6L 2013 Lexus LS600h 5.0L 2013 Toyota 4Runner 4.0L 2013 Toyota FJ Cruiser 4.0L 2013 Toyota Tundra 4.0L 2014 Lexus GS350 3.5L 2014 Lexus GS450h 3.5L 2014 Lexus GX460 4.6L 2014 Lexus IS250 2.5L 2014 Lexus IS350 3.5L 2014 Lexus LS460 4.6L 2014 Lexus LS600h 5.0L 2014 Toyota 4Runner 4.0L 2014 Toyota FJ Cruiser 4.0L 2014 Toyota Tundra 4.0L 2015 Lexus GS350 3.5L 2015 Lexus GS450h 3.5L 2015 Lexus GX460 4.6L 2015 Lexus IS250 2.5L 2015 Lexus IS350 3.5L 2015 Lexus LS460 4.6L 2015 Lexus LS600h 5.0L 2015 Lexus RC350 3.5L 2015 Toyota 4Runner 4.0L 2016 Lexus GS350 3.5L 2016 Lexus GS450h 3.5L 2016 Lexus GX460 4.6L 2016 Lexus IS300 3.5L 2016 Lexus IS350 3.5L 2016 Lexus LS460 4.6L 2016 Lexus LS600h 5.0L 2016 Lexus RC300 3.5L 2016 Lexus RC350 3.5L 2016 Toyota 4Runner 4.0L 2017 Lexus GS350 3.5L 2017 Lexus GS450h 3.5L 2017 Lexus GX460 4.6L 2017 Lexus IS300 3.5L 2017 Lexus IS350 3.5L 2017 Lexus LS460 4.6L 2017 Lexus RC300 3.5L 2017 Lexus RC350 3.5L 2017 Toyota 4Runner 4.0L 2018 Lexus GS350 3.5L 2018 Lexus GS450h 3.5L 2018 Lexus GX460 4.6L 2018 Lexus IS300 3.5L 2018 Lexus IS350 3.5L 2018 Lexus LS500 3.4L 2018 Lexus RC300 3.5L 2018 Lexus RC350 3.5L 2018 Toyota 4Runner 4.0L 2019 Lexus GS350 3.5L 2019 Lexus GX460 4.6L 2019 Lexus IS300 3.5L 2019 Lexus IS350 3.5L 2019 Lexus LS500 3.4L 2019 Lexus RC300 3.5L 2019 Lexus RC350 3.5L 2019 Toyota 4Runner 4.0L 2020 Lexus GS350 3.5L 2020 Lexus GX460 4.6L 2020 Lexus IS300 3.5L 2020 Lexus IS350 3.5L 2020 Lexus LS500 3.4L 2020 Lexus RC300 3.5L 2020 Lexus RC350 3.5L 2020 Toyota 4Runner 4.0L 2021 Lexus GX460 4.6L 2021 Lexus IS300 3.5L 2021 Lexus IS350 3.5L 2021 Lexus LS500 3.4L 2021 Lexus RC300 3.5L 2021 Lexus RC350 3.5L 2021 Toyota 4Runner 4.0L 2022 Lexus GX460 4.6L 2022 Lexus IS300 3.5L 2022 Lexus IS350 3.5L 2022 Lexus LS500 3.4L 2022 Lexus RC300 3.5L 2022 Lexus RC350 3.5L 2022 Toyota 4Runner 4.0L 2023 Lexus GX460 4.6L 2023 Lexus IS300 3.5L 2023 Lexus IS350 3.5L 2023 Lexus LS500 3.4L 2023 Lexus RC300 3.5L 2023 Lexus RC350 3.5L 2023 Toyota 4Runner 4.0L 2024 Lexus IS300 3.5L 2024 Lexus IS350 3.5L 2024 Lexus LS500 3.4L 2024 Lexus RC300 3.5L 2024 Lexus RC350 3.5L 2024 Toyota 4Runner 4.0L 2025 Lexus IS300 3.5L 2025 Lexus IS350 3.5L 2025 Lexus LS500 3.4L 2025 Lexus RC300 3.5L 2025 Lexus RC350 3.5L 2026 Lexus IS350 3.5L 2026 Lexus LS500 3.4L 2027 Lexus IS350 3.5L - Comparison
COMPETITOR NAME COMPETITOR PART # - Installation
- Remove drain plug from housing cap if present and allow oil to drain from cap. Remove housing cap old gaskets/O-Rings and filter element. Discard the used filter element and gaskets/O-Rings in the proper manner.
- Clean filter housing components and apply a light coating of clean engine oil to the new provided gaskets/O-Rings. Install being careful to avoid damage to the gaskets/O-Rings. Avoid twisting of the gaskets/O-Rings.
- Install new filter element into the housing cap. Reinstall the housing cap and tighten to the proper installation torque as listed on the housing cap or in the service manual. Reinstall the housing cap drain if present to the proper installation torque.
