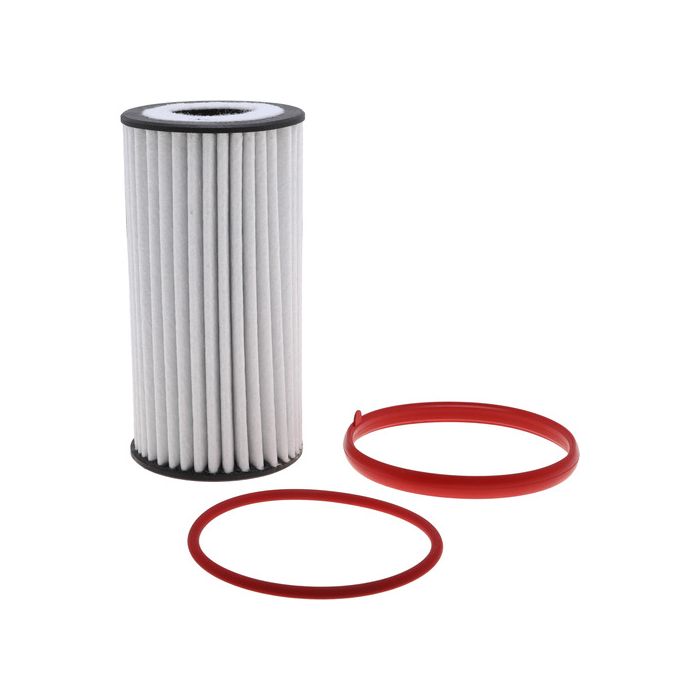

FRAM Synthetic Endurance™ Oil Filter

SKU
FE10158
More Information
Height (Inch) 3.234
Anti-Drain Back Valve No
Bypass Relief Valve No
Bottom Inside Diameter (Inch) 1.11
Filter Media Material Synthetic
O-Ring (1) Inside Diameter (Inch) 1.083
O-Ring (1) Outside Diameter (Inch) 1.221
O-Ring (1) Thickness (Inch) 0.138
O-Ring Inside Diameter (Inch) 3.152
O-Ring Outside Diameter (Inch) 3.290
O-Ring Thickness (Inch) 0.138
O-Rings Included Yes
Outer Diameter Bottom (Inch) 2.75
Top Inside Diameter (Inch) 1.11
Torque Nut No
Where To Shop
Search
  • Description

    FRAM Synthetic Endurance™ premium oil filters are designed to provide extended durability and performance. Its fully synthetic filtration media delivers 99% filtration efficiency and maximum engine protection for up to 25,000 miles (40,000 kilometers) when paired with the appropriate synthetic or high-mileage motor oil. FRAM Synthetic Endurance™ was specially developed for use in modern vehicles and features heavier steel construction for today's higher flow engines.

    • Provides maximum protection and performance for up to 25,000 miles (40,000 kilometers).
    • Optimized for use with synthetic or high mileage oil.
    • Heavy-duty shell and wire screen back synthetic filter media provides maximum durability.
    • Designed with a fully synthetic filter media for 99% filtration efficiency.
    • 360° Textured Grip provides non-slip surface for easier installation and removal.
    • Perfect Seal® No-Stick Gasket provides extended durability.
    • 1 Provides up to 25,000 miles/40,000 km of protection when used with an appropriate synthetic oil. Follow recommended change intervals as outlined in your owner’s manual.

      *FRAM Group testing of average filter efficiency of FE8A, FE3387A and FE4967 or equivalent FRAM TG or EG models under ISO 4548-12 for particles greater than 20 microns.

      **FRAM Group mulitpass testing of representative sampling of average filter capacity of comparable competitive retail products based on ISO4548-12 for FE8A and FE3387A.

      ***Greater than 3X the functional life of Nitrile ADB when tested per SAE HS806 hot oil and Anti-drain-back test.

      + FRAM Group testing per USCAR-36 Low Temperature Leakage test after hot oil, when compared to standard nitrile gasket.

      ꝉ Not all features are available on every part number in the product line. Check the package for specific features of individual filters.

  • Applications

    This Item Fits the Following Vehicles:

    Year Make Model Engine
    2006 LEXUS GS300 V6-3.0L
    11-07 LEXUS GS350 V6-3.5L
    20-13 LEXUS GS350 V6-3.5L
    11-07 LEXUS GS450H V6-3.5L
    18-13 LEXUS GS450H V6-3.5L
    11-08 LEXUS GS460 V8-4.6L
    23-10 LEXUS GX460 V8-4.6L
    15-06 LEXUS IS250 V6-2.5L
    25-16 LEXUS IS300 V6-3.5L
    25-06 LEXUS IS350 V6-3.5L
    17-07 LEXUS LS460 V8-4.6L
    25-18 LEXUS LS500 V6-3.4L
    16-08 LEXUS LS600H V8-5.0L
    24-16 LEXUS RC300 V6-3.5L
    24-15 LEXUS RC350 V6-3.5L
    24-10 TOYOTA 4RUNNER V6-4.0L
    14-10 TOYOTA FJ CRUISER V6-4.0L
    14-11 TOYOTA TUNDRA V6-4.0L
  • Comparison
    COMPETITOR NAME COMPETITOR PART #
    A.L. Solutions U.S. ALO-8155
    ACDelco PF2260
    Auto Extra 61857173
    Baldwin P7418
    Bosch 72251WS
    Carquest 84173
    Carquest Premium Filters 84173
    Casite Filters CF618
    Champ P968
    Champ P968XL
    Champion COC10158
    Champion Filters COC10158
    Defense Filters DL10158
    Driveworks DW-5609
    ECOGARD X5609
    FERGUSON G7173
    FRAM Drive FD10158
    FRAM Synthetic Endurance FE10158
    FRAM Titanium FS10158
    FRAM Tough Guard TG10158
    FRAM Ultra Synthetic XG10158
    FVP G7173
    Group 7 V5609
    Hastings LF618
    Inter-Continental Gear & Brake ALO-8155
    Inter-Continental Gear & Brake ALO-8155/50
    K&N HP-7023
    K&N PS-7023
    LUBER-FINER P968
    MAHLE OX790D
    MicroGard MGL57173
    MicroGard MGL10158
    Mighty Distributing System M968
    Mobil 1 M1C-256
    Mobil 1 M1C-256A
    NAPA 7173
    Parts Master 67173X
    Parts Master 67173
    Pennzoil PZ-165
    Pennzoil PZ165
    Pentius PCB10158
    Performax PO-165
    Premium Guard PG5609
    Prime Guard Filters - Archived POF5609
    Promotive PH5609
    Pronto PO-5609
    PureZone 8-57173
    Purolator L25609
    Purolator BOSS PBL25609
    PurolatorONE PL25609
    Quaker State QS45517
    Service Champ CF5609
    Silverline 27173
    STP S10158
    STP Filters S10158
    STP Filters S10158XL
    Tough Guard TG10158
    Toyota 04152-31060
    Toyota 04152-38010
    Toyota 04152-YZZA2
    Toyota 04152-YZZA3
    Toyota 04152-31080
    Toyota 04152-YZZA5
    Ultra XG10158
    Valvoline VO-87
    VIPER 10158
    Wix 57173
  • Installation
    1. Remove drain plug from housing cap if present and allow oil to drain from cap. Remove housing cap, old gaskets/O-Rings, and filter element. Discard the used filter element and gaskets/O-Rings in the proper manner.
    2. Clean filter housing components and apply a light coating of clean engine oil to the new provided gaskets/O-Rings. Install, being careful to avoid damage to the gaskets/O-Rings. Avoid twisting of the gaskets/O-Rings.
    3. Install new filter element into the housing cap. Reinstall the housing cap and tighten to the proper installation torque as listed on the housing cap or in the service manual. Reinstall the housing cap drain if present to the proper installation torque.
