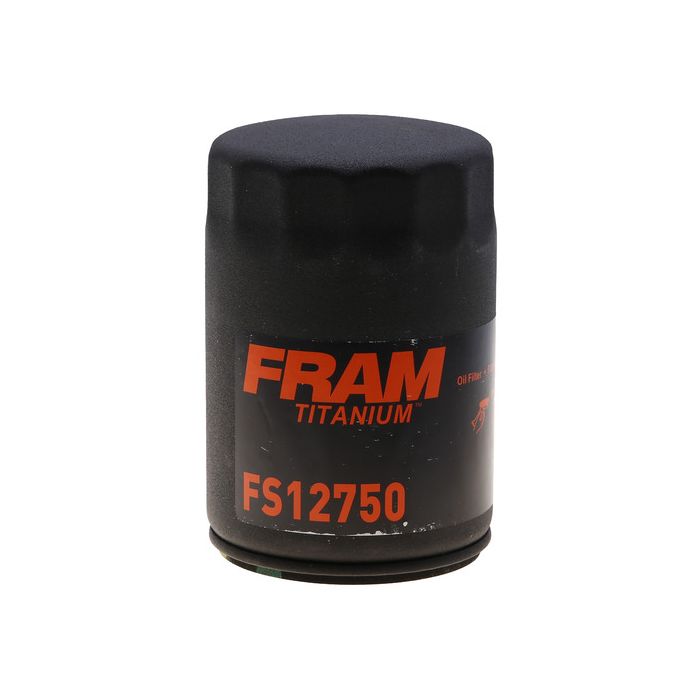

FRAM Titanium™ Oil Filter

Add to Compare
SKU
FS12750
More Information
Height (Inch) 4.45
Outside Diameter (Inch) 2.997
Anti-Drain Back Valve Yes
Bypass Relief Valve No
Gasket Inside Diameter (Inch) 2.39
Gasket Outside Diameter (Inch) 2.76
Gasket Thickness (Inch) 0.37
Gasket Type Base
Attachment Type Spin-On
Burst Pressure (Pounds per Square Inch) 400
Filter Media Material Cellulose/Synthetic Blend
Inlet Type Threaded
Inside Thread Diameter (Inch) M22 x 1.5
Thread Size Standard
Torque Nut No
More Information
Where To Shop
Search
  • Description

    FRAM Titanium™ advanced high-flow synthetic oil filters offer ultimate engine protection for up to 20,000 miles (32,000 kilometers). Engineered with premium synthetic blend media, FRAM Titanium™ provides over 99% dirt trapping efficiency.

    • Proven protection for up to 20,000 miles (32,000 kilometers)
    • Dual-layered synthetic blend media provides over 99% filtration efficiency.*
    • FRAM Powerflow™ technology allows for efficient oil flow over the filter media
    • Perfect Seal™ Gasket gives extended durability and temperature protection

    *FRAM Group testing of average filter efficiency of FS8A, FS3387A and FS4967 under ISO 4548-12 for particles greater than 20 microns.

    **Greater than 3X the functional life of Nitrile ADB when tested per SAE HS806 hot oil and Anti-drain-back test.

  • Applications

    This Item Fits the Following Vehicles:

    Year Make Model Engine
    2020 BUICK ENCLAVE V6-3.6L
    19-17 BUICK LACROSSE V6-3.6L
    20-18 BUICK REGAL SPORTBACK V6-3.6L
    19-16 CADILLAC ATS V6-3.6L
    19-16 CADILLAC CT6 V6-3.0L
    20-16 CADILLAC CT6 V6-3.6L
    19-16 CADILLAC CTS V6-3.6L
    25-17 CADILLAC XT5 V6-3.6L
    25-20 CADILLAC XT6 V6-3.6L
    25-19 CHEVROLET BLAZER V6-3.6L
    24-16 CHEVROLET CAMARO V6-3.6L
    2020 CHEVROLET TRAVERSE V6-3.6L
    23-17 GMC ACADIA V6-3.6L
  • Comparison
    COMPETITOR NAME COMPETITOR PART #
    ACDelco UPF63R
    Champ PH1500
    FRAM Drive FD12750
    FRAM Force FF12750
    FRAM Ultra Synthetic XG12750
    General Motors 12693541
    LUBER-FINER PH1500
    Mighty Distributing System M9512
    Motomaster OE Plus MOPH12750
    NAPA Gold Filters 100412
    Parts Master WL610412
    PUREPRO PL21495
    PurolatorONE PL21495
    Service Champ WPH1500
    STP Filters S45013
    Valvoline VO-201
    Warner WPH1500
    Warner Filters WPH1500
    Wix WL10412
  • Installation
    1. Use proper protective gear. Used motor oil should not come in contact with bare skin. Engine oil may be hot.
    2. Place a drain pan under the oil filter and unscrew oil filter.
    3. Clean mounting base making sure the O-ring from the old filter is not stuck to the filter mount.
    4. Apply film of clean oil to filter gasket. Do not use grease.
    5. Screw new filter on until gasket reaches base contact. Then tighten according to instructions on filter using tightening guide markers.
    6. Check owner's manual for correct oil specification viscosity and amount.
    7. Add oil to 'full' on dipstick. Idle engine for 5 minutes and check for leaks.
    8. Shut off engine and recheck oil level after 5 minutes and top off as necessary.
