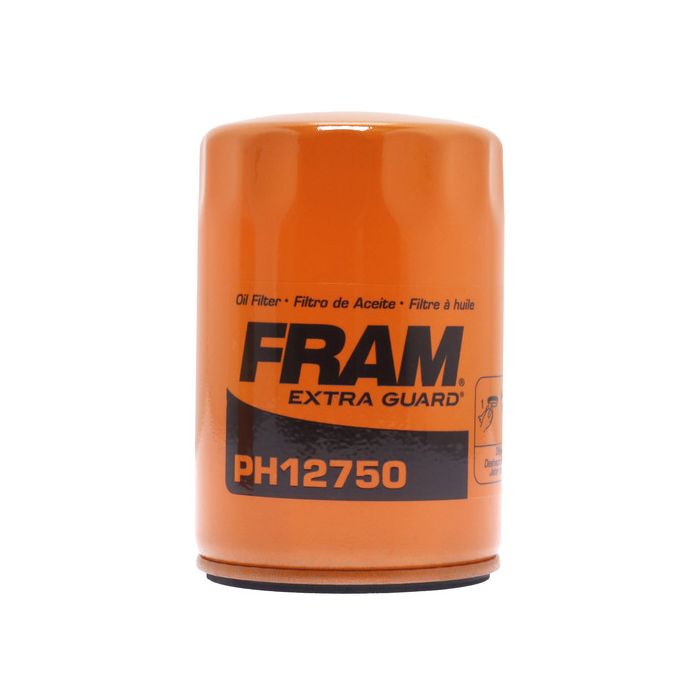

FRAM Extra Guard® Oil Filter

Add to Compare
SKU
PH12750
More Information
Height (Inch) 4.45
Outside Diameter (Inch) 2.98
Anti-Drain Back Valve Yes
Bypass Relief Valve Yes
Gasket Inside Diameter (Inch) 2.39
Gasket Outside Diameter (Inch) 2.77
Gasket Thickness (Inch) 0.38
Gasket Type Base
Attachment Type Spin-On
Bypass Relief Valve Setting (Pounds per Square Inch) 22
Filter Media Material Cellulose/Synthetic Blend
Inlet Type Threaded
Inside Thread Diameter (Millimeter) M22x1.5
Thread Size Metric
Torque Nut No
More Information
Where To Shop
Search
  • Description

    FRAM Extra Guard® oil filters deliver advanced engine protection for everyday drivers who perform routine oil changes at OE (original equipment) recommended intervals. Equipped with SureGrip® technology, FRAM Extra Guard® oil filters provide a non-slip surface allowing for easy install and removal. The silicone anti-drain back valve ensures safe engine startups, extending the life of the oil filter for up to 10,000 miles (16,000 kilometers).

    • Proven protection for up to 10,000 miles (16,000 kilometers)
    • Engineered for use with synthetic or conventional motor oils
    • SureGrip® technology for easy install and removal
    • Filter media is a blend of fiber and resin that captures 95% of the dirt particles
    • Silicone anti-drain back valve helps ensure safe engine start up

    *FRAM Group testing of average filter efficiency of PH8A, PH3387A and PH4967 under ISO 4548-12 for particles greater than 20 microns.

    **Greater than 3X the functional life of Nitrile ADB when tested per SAE HS806 hot oil and Anti-drain-back test.

    ?Not all features are available on every part number in the product line. Check the package for specific features of individual filters.

  • Applications

    This Item Fits the Following Vehicles:

    Year Make Model Engine
    2020 BUICK ENCLAVE V6-3.6L
    19-17 BUICK LACROSSE V6-3.6L
    20-18 BUICK REGAL SPORTBACK V6-3.6L
    19-16 CADILLAC ATS V6-3.6L
    19-16 CADILLAC CT6 V6-3.0L
    20-16 CADILLAC CT6 V6-3.6L
    19-16 CADILLAC CTS V6-3.6L
    25-17 CADILLAC XT5 V6-3.6L
    25-20 CADILLAC XT6 V6-3.6L
    25-19 CHEVROLET BLAZER V6-3.6L
    24-16 CHEVROLET CAMARO V6-3.6L
    2020 CHEVROLET TRAVERSE V6-3.6L
    23-17 GMC ACADIA V6-3.6L
  • Comparison
    COMPETITOR NAME COMPETITOR PART #
    ACDelco UPF63R
    Champ PH1500
    FRAM Drive FD12750
    FRAM Force FF12750
    FRAM Ultra Synthetic XG12750
    General Motors 12693541
    LUBER-FINER PH1500
    MicroGard Select MSL10412
    Mighty Distributing System M9512
    Motomaster OE Plus MOPH12750
    NAPA Gold Filters 100412
    Parts Master WL610412
    PUREPRO PL21495
    PurolatorONE PL21495
    Service Champ WPH1500
    STP Filters S45013
    Valvoline VO-201
    Warner WPH1500
    Warner Filters WPH1500
    Wix WL10412
  • Installation
    1. Use proper protective gear. Used motor oil should not come in contact with bare skin. Engine oil may be hot.
    2. Place a drain pan under the oil filter and unscrew oil filter.
    3. Clean mounting base making sure the O-ring from the old filter is not stuck to the filter mount.
    4. Apply film of clean oil to filter gasket. Do not use grease.
    5. Screw new filter on until gasket reaches base contact. Then tighten according to instructions on filter using tightening guide markers.
    6. Check owner’s manual for correct oil specification viscosity and amount.
    7. Add oil to “full” on dipstick. Idle engine for 5 minutes and check for leaks.
    8. Shut off engine and recheck oil level after 5 minutes and top off as necessary.
