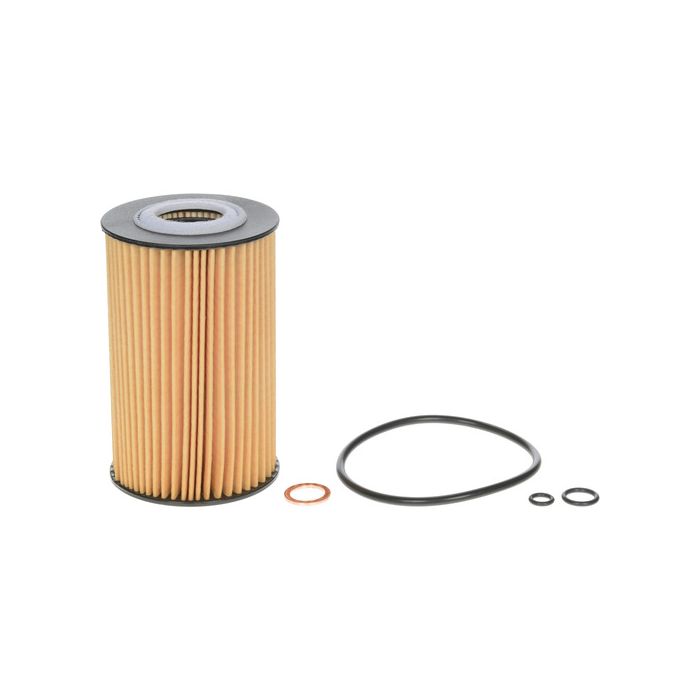

FRAM Extra Guard® Oil Filter
SKU
CH8087
| Height (Inch) | 4.016 |
|---|---|
| Anti-Drain Back Valve | No |
| Bypass Relief Valve | No |
| Bottom Inside Diameter (Inch) | 0.875 |
| Filter Media Material | Cellulose/Synthetic Blend |
| O-Ring (1) Inside Diameter (Inch) | 0.390 |
| O-Ring (1) Outside Diameter (Inch) | 0.469 |
| O-Ring (1) Thickness (Inch) | 0.079 |
| O-Ring (2) Inside Diameter (Inch) | 0.236 |
| O-Ring (2) Outside Diameter (Inch) | 0.936 |
| O-Ring (2) Thickness (Inch) | 0.070 |
| O-Ring Inside Diameter (Inch) | 2.939 |
| O-Ring Outside Diameter (Inch) | 3.078 |
| O-Ring Thickness (Inch) | 0.139 |
| O-Rings Included | Yes |
| Outer Diameter Bottom (Inch) | 2.563 |
| Top Inside Diameter (Inch) | 0.875 |
| Torque Nut | No |
| Washer Inside Diameter (Inch) | 0.473 |
| Washer Outside Diameter (Inch) | 0.670 |
| Washer Thickness (Inch) | 0.059 |
Where To Shop
Search
Search
- Description
FRAM Extra Guard® oil filters deliver advanced engine protection for everyday drivers who perform routine oil changes at OE (original equipment) recommended intervals. Engineered for conventional and synthetic motor oil, Extra Guard offers proven engine protection for up to 10,000 miles (16,000 kilometers).
- Proven protection for up to 10,000 miles (16,000 kilometers)
- Engineered for use with synthetic or conventional motor oils
- Filter media is a blend of fiber and resin that captures 95%?of the dirt particles
- The perfect balance of dirt-trapping efficiency and dirt-holding capacity
- Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today’s engines
*FRAM Group testing of average filter efficiency of PH8A, PH3387A and PH4967 under ISO 4548-12 for particles greater than 20 microns.
**Greater than 3X the functional life of Nitrile ADB when tested per SAE HS806 hot oil and Anti-drain-back test.
?Not all features are available on every part number in the product line. Check the package for specific features of individual filters.
- Applications
This Item Fits the Following Vehicles:
Year Make Model Engine 99-96 BMW 318I L4-1.9L 99-96 BMW 318IS L4-1.9L 99-96 BMW 318TI L4-1.9L 98-96 BMW Z3 L4-1.9L - Comparison
COMPETITOR NAME COMPETITOR PART # ACDelco PF2252G Beck/Arnley 041-8106 Big A 92213 BMW 11 42 1 716 192 BMW 11 42 1 432 097 BMW 11 42 1 743 398 Bosch 72201 Carquest 85213 Champ P8445 Champion COC8087 Champion Filters COC8087 FERGUSON G1213 FVP G1213 Group 7 L25251 Hastings LF514 Installer Edge AL8087 Jiffy Lube HL8087 LUBER-FINER P8445 MAHLE OX127/1DECO Mann-Filter HU715/3X Mann-Filter HU715/4X Mighty Distributing System P8445 Mighty Distributing System M8445 Mobil L25251 NAPA 1213 Pentius PCB8087 Performax PO-160 Premium Guard PG5251 Purolator L25251 Quaker State L25251 Shell - Archived L25251 STP S8087 STP Filters S8087 Valvoline LC-8445 VIPER 8087 Warner P8445 Warner Filters P8445 Wix 51213 - Installation
- Remove drain plug from housing cap if present and allow oil to drain from cap. Remove housing cap old gaskets/O-Rings and filter element. Discard the used filter element and gaskets/O-Rings in the proper manner.
- Clean filter housing components and apply a light coating of clean engine oil to the new provided gaskets/O-Rings. Install being careful to avoid damage to the gaskets/O-Rings. Avoid twisting of the gaskets/O-Rings.
- Install new filter element into the housing cap. Reinstall the housing cap and tighten to the proper installation torque as listed on the housing cap or in the service manual. Reinstall the housing cap drain if present to the proper installation torque.
