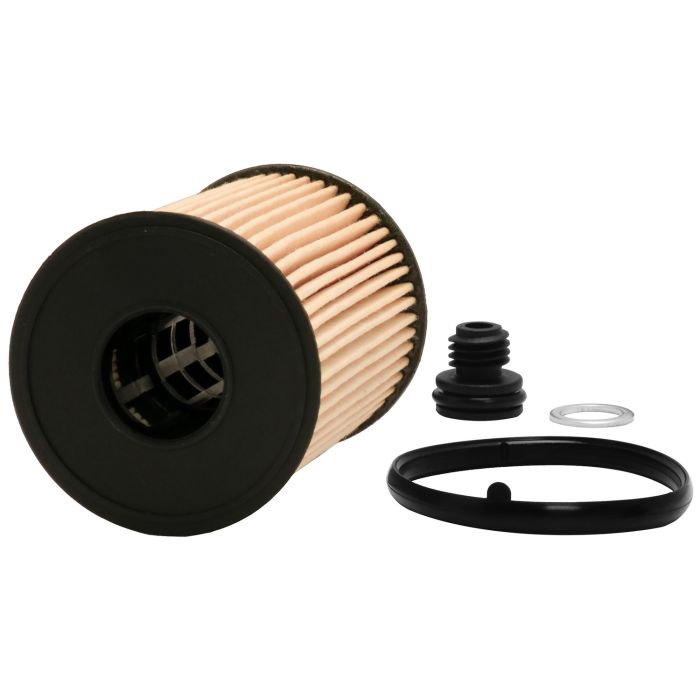

FRAM Extra Guard® Oil Filter
Oil Filter
SKU
CH12811
| Performance | Advanced |
|---|---|
| Length | 2.76 |
| Width | 2.76 |
| Filter Type | Cartridge |
| Grade Type | Regular |
| Housing Color | NA |
| New Or Remanufactured | New |
| Reusable | No |
| Washable | No |
| Replaceable Filter | Yes |
| Meets Or Exceeds Original Equipment Manufacture Specifications | Yes |
| Height | 3.386 IN |
| Outside Diameter Top | 2.579 IN |
| Bottom Inside Diameter | 0.984 IN |
| Anti-drain Back Valve | No |
| Bypass Relief Valve | No |
| Drain Plug Included | Yes |
| Filter Media Material | Cellulose/Synthetic Blend |
| Gasket Inside Diameter | 2.898 IN |
| Gasket Outside Diameter | 3.028 IN |
| Gasket Thickness | 0.13 IN |
| Non Slip Grip | No |
| O-ring Inside Diameter | 0.591 IN |
| O-ring Outside Diameter | 0.709 IN |
| O-ring Thickness | 0.118 IN |
| O-rings Included | Yes |
| Outer Diameter Bottom | 2.579 IN |
| Top Inside Diameter | 1.179 IN |
| Torque Nut | No |
| Washer Inside Diameter | 0.563 IN |
| Washer Outside Diameter | 0.622 IN |
| Washer Thickness | 0.059 IN |
- Description
Keep your engine performing at its best with the trusted protection of FRAM Extra Guard® Oil Filters. Engineered for everyday driving, Extra Guard combines dependable filtration, consistent oil flow, and proven durability to help keep your engine running smoothly mile after mile.
- Proven Engine Protection: Designed to provide reliable engine protection for up to 10,000 miles.
- Compatible with Synthetic & Conventional Oils: Engineered to perform with both synthetic and conventional motor oils.
- 95% Dirt-Trapping Efficiency: Advanced fiber and resin-blend media captures 95% of harmful dirt particles to help protect your engine.
- Optimized Filtration Performance: Delivers the ideal balance of dirt-trapping efficiency and dirt-holding capacity for dependable, long-lasting protection.
- Applications
This Item Fits the Following Vehicles:
Year Make Model Engine 2020 Hyundai Sonata 2.5L 2021 Hyundai Santa Fe 2.5L 2021 Hyundai Sonata 2.5L 2021 Kia K5 2.5L 2021 Kia Sorento 2.5L 2022 Hyundai Santa Cruz 2.5L 2022 Hyundai Santa Fe 2.5L 2022 Hyundai Sonata 2.5L 2022 Hyundai Tucson 2.5L 2022 Kia K5 2.5L 2022 Kia Sorento 2.5L 2023 Hyundai Santa Cruz 2.5L 2023 Hyundai Santa Fe 2.5L 2023 Hyundai Sonata 2.5L 2023 Hyundai Tucson 2.5L 2023 Kia K5 2.5L 2023 Kia Sorento 2.5L 2023 Kia Sportage 2.5L 2024 Hyundai Santa Cruz 2.5L 2024 Hyundai Santa Fe 2.5L 2024 Hyundai Sonata 2.5L 2024 Hyundai Tucson 2.5L 2024 Kia K5 2.5L 2024 Kia Sorento 2.5L 2024 Kia Sportage 2.5L 2025 Hyundai Santa Cruz 2.5L 2025 Hyundai Santa Fe 2.5L 2025 Hyundai Sonata 2.5L 2025 Hyundai Tucson 2.5L 2025 Kia K5 2.5L 2025 Kia Sorento 2.5L 2025 Kia Sportage 2.5L 2026 Hyundai Palisade 2.5L 2026 Hyundai Santa Cruz 2.5L 2026 Hyundai Santa Fe 2.5L 2026 Hyundai Sonata 2.5L 2026 Hyundai Tucson 2.5L 2026 Kia K5 2.5L 2026 Kia Sorento 2.5L 2026 Kia Sportage 2.5L 2027 Hyundai Palisade 2.5L 2027 Hyundai Santa Cruz 2.5L 2027 Hyundai Santa Fe 2.5L 2027 Kia K5 2.5L 2027 Kia Sportage 2.5L 2027 Kia Telluride 2.5L - Interchange
Compatible competitor and OE part numbers
Brand Part Number Carquest 95329 FRAM Core COR12811ACC FRAM Drive FD12811 FRAM Force FF12811 FRAM Pro FP12811BP FRAM Synthetic Endurance FE12811 FRAM Titanium FS12811 FRAM Tough Guard TG12811 FRAM Ultra Synthetic XG12811 Hyundai 26350-2S000 LUBER-FINER P1086 MicroGard Select MSL10514 NAPA Gold Filters 100514 NAPA Proformer 2100514 Premium Guard PG99527EX PurolatorONE PL11752 Service Champ CF1752 STP Filters S45020 STP Filters S45020XL Valvoline VO-208 Wix WL10514 - Installation
- Remove drain plug from housing cap if present and allow oil to drain from cap. Remove housing cap old gaskets/O-Rings and filter element. Discard the used filter element and gaskets/O-Rings in the proper manner.
- Clean filter housing components and apply a light coating of clean engine oil to the new provided gaskets/O-Rings. Install being careful to avoid damage to the gaskets/O-Rings. Avoid twisting of the gaskets/O-Rings.
- Install new filter element into the housing cap. Reinstall the housing cap and tighten to the proper installation torque as listed on the housing cap or in the service manual. Reinstall the housing cap drain if present to the proper installation torque.
