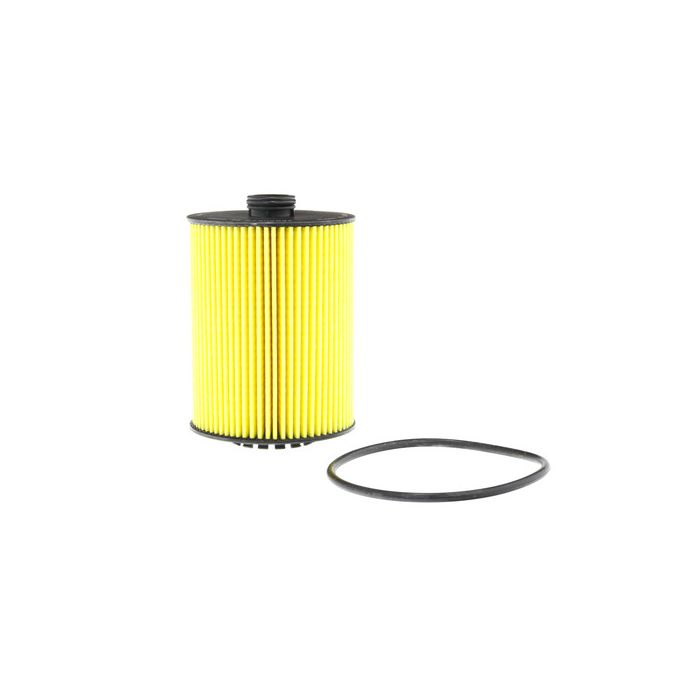

FRAM Drive™ Oil Filter

Add to Compare
SKU
FD11242
More Information
Height (Inch) 4.669
Outer Diameter Top (Inch) 3.172
Anti-Drain Back Valve No
Bypass Relief Valve No
Filter Media Material Cellulose/Synthetic Blend
Inside Diameter Bottom Closed
O-Ring (1) Inside Diameter (Inch) 0.729
O-Ring (1) Outside Diameter (Inch) 0.827
O-Ring (1) Thickness (Inch) 0.099
O-Ring Inside Diameter (Inch) 3.585
O-Ring Outside Diameter (Inch) 3.743
O-Ring Thickness (Inch) 0.158
O-Rings Included Yes
Outer Diameter Bottom (Inch) 3.172
Top Inside Diameter (Inch) 0.662
Torque Nut No
More Information
Where To Shop
Search
  • Description

    FRAM Drive™ is the perfect oil filter for everyday driver. Designed with OE grade synthetic blend media and compatible with both conventional and synthetic oil types, FRAM Drive™ keeps engine protected for up to 7,500 miles (12,000 kilometers). FRAM Drive™ is engineered to withstand high temperatures and endure working pressures common in today’s engines.

    • Proven protection for up to 7,500 miles (12,000 kilometers)
    • Engineered for use with synthetic or conventional motor oil
    • Precision Relief Valve provides consistent oil flow, even in cold conditions
    • Designed for everyday drivers who perform oil changes at OE (original equipment) recommended intervals
    • Includes gaskets and O-rings manufactured to endure the high pressures and high temperatures in today’s engines

    *FRAM Group testing of filter performance of FD8A and FD7317 under ISO4548- 12

  • Applications

    This Item Fits the Following Vehicles:

    Year Make Model Engine
    14-12 PORSCHE CAYENNE V6-3.6L
    18-16 PORSCHE CAYENNE V6-3.6L
    23-18 VOLKSWAGEN ATLAS V6-3.6L
    23-20 VOLKSWAGEN ATLAS CROSS SPORT V6-3.6L
    17-13 VOLKSWAGEN CC V6-3.6L
    18-12 VOLKSWAGEN PASSAT V6-3.6L
    17-12 VOLKSWAGEN TOUAREG V6-3.6L
  • Comparison
    COMPETITOR NAME COMPETITOR PART #
    Carquest 84462
    Carquest Premium Filters 84462
    Champ P998
    Champion Filters COC11242
    ECOGARD X10023
    FERGUSON G7462
    FRAM Drive FD11242
    FVP G7462
    Hastings LF690
    LUBER-FINER P998
    MAHLE OX983DECO
    MicroGard MGL57462
    MotoMaster MCH11242
    NAPA 7462
    Parts Master 67462
    Premium Guard PG6293
    PUREPRO P998
    PureZone 8-57462
    Purolator L26293
    Service Champ CF6293
    STP S11242
    STP Filters S11242
    Valvoline VO-133
    Volkswagen 03H 115 562
    Volkswagen 958 107 222 10
    Wix 57462
  • Installation
    1. Use proper protective gear. Used motor oil should not come in contact with bare skin. Engine oil may be hot.
    2. Place a drain pan under the oil filter and unscrew oil filter.
    3. Clean mounting base making sure the O-ring from the old filter is not stuck to the filter mount.
    4. Apply film of clean oil to filter gasket. Do not use grease.
    5. Screw new filter on until gasket reaches base contact. Then tighten according to instructions on filter using tightening guide markers.
    6. Check owner’s manual for correct oil specification viscosity and amount.
    7. Add oil to “full” on dipstick. Idle engine for 5 minutes and check for leaks.
    8. Shut off engine and recheck oil level after 5 minutes and top off as necessary.
