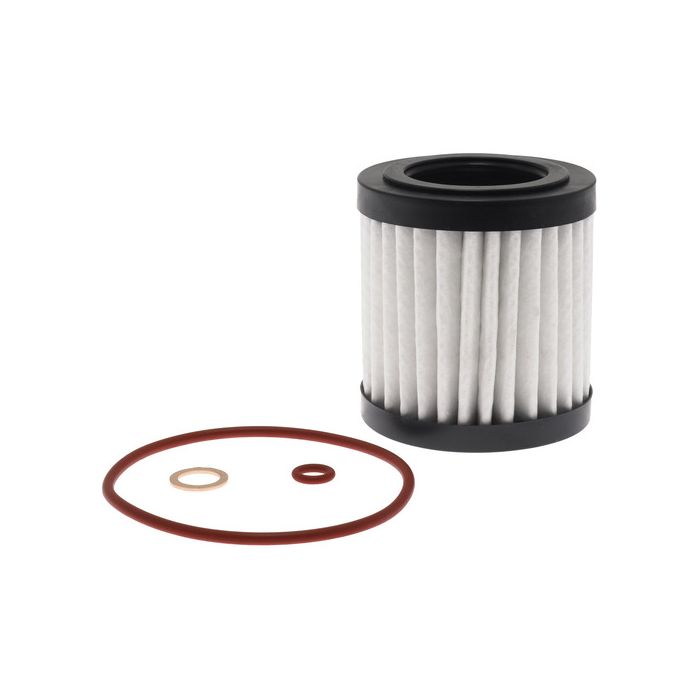

FRAM Synthetic Endurance™ Oil Filter
| Height (Inch) | 2.993 |
|---|---|
| Outer Diameter Top (Inch) | 2.89 |
| Anti-Drain Back Valve | No |
| Bypass Relief Valve | No |
| Filter Media Material | Synthetic |
| Inside Diameter Bottom (Inch) | 1.62 |
| O-Ring (1) Inside Diameter (Inch) | 0.299 |
| O-Ring (1) Outside Diameter (Inch) | 0.402 |
| O-Ring (1) Thickness (Inch) | 0.103 |
| O-Ring Inside Diameter (Inch) | 3.234 |
| O-Ring Outside Diameter (Inch) | 3.373 |
| O-Ring Thickness (Inch) | 0.139 |
| O-Rings Included | Yes |
| Outer Diameter Bottom (Inch) | 2.89 |
| Top Inside Diameter (Inch) | 1.62 |
| Torque Nut | No |
| Washer Inside Diameter (Inch) | 0.472 |
| Washer Outside Diameter (Inch) | 0.669 |
| Washer Thickness (Inch) | 0.047 |
Search
- Description
FRAM Synthetic Endurance™ premium oil filters are designed to provide extended durability and performance. Its fully synthetic filtration media delivers 99% filtration efficiency and maximum engine protection for up to 25,000 miles (40,000 kilometers) when paired with the appropriate synthetic or high-mileage motor oil. FRAM Synthetic Endurance™ was specially developed for use in modern vehicles and features heavier steel construction for today's higher flow engines.
- Provides maximum protection and performance for up to 25,000 miles (40,000 kilometers).
- Optimized for use with synthetic or high mileage oil.
- Heavy-duty shell and wire screen back synthetic filter media provides maximum durability.
- Designed with a fully synthetic filter media for 99% filtration efficiency.
- 360° Textured Grip provides non-slip surface for easier installation and removal.
- Perfect Seal® No-Stick Gasket provides extended durability.
1 Provides up to 25,000 miles/40,000 km of protection when used with an appropriate synthetic oil. Follow recommended change intervals as outlined in your owner’s manual.
*FRAM Group testing of average filter efficiency of FE8A, FE3387A and FE4967 or equivalent FRAM TG or EG models under ISO 4548-12 for particles greater than 20 microns.
**FRAM Group mulitpass testing of representative sampling of average filter capacity of comparable competitive retail products based on ISO4548-12 for FE8A and FE3387A.
***Greater than 3X the functional life of Nitrile ADB when tested per SAE HS806 hot oil and Anti-drain-back test.
+ FRAM Group testing per USCAR-36 Low Temperature Leakage test after hot oil, when compared to standard nitrile gasket.
ꝉ Not all features are available on every part number in the product line. Check the package for specific features of individual filters.
- Applications
This Item Fits the Following Vehicles:
Year Make Model Engine 2011 BMW 1 SERIES M L6-3.0L 13-08 BMW 128I L6-3.0L 13-08 BMW 135I L6-3.0L 2013 BMW 135IS L6-3.0L 16-14 BMW 228I L4-2.0L 16-15 BMW 228I XDRIVE L4-2.0L 18-12 BMW 320I L4-2.0L 18-13 BMW 320I XDRIVE L4-2.0L 11-06 BMW 323I L6-2.5L 2006 BMW 325I L6-3.0L 2006 BMW 325XI L6-3.0L 16-12 BMW 328I L4-2.0L 13-07 BMW 328I L6-3.0L 16-14 BMW 328I GT XDRIVE L4-2.0L 16-13 BMW 328I XDRIVE L4-2.0L 13-09 BMW 328I XDRIVE L6-3.0L 08-07 BMW 328XI L6-3.0L 2006 BMW 330CI L6-3.0L 2006 BMW 330I L6-3.0L 2006 BMW 330XI L6-3.0L 15-07 BMW 335I L6-3.0L 16-14 BMW 335I GT XDRIVE L6-3.0L 15-09 BMW 335I XDRIVE L6-3.0L 13-11 BMW 335IS L6-3.0L 08-07 BMW 335XI L6-3.0L 16-14 BMW 428I L4-2.0L 16-15 BMW 428I GRAN COUPE L4-2.0L 16-14 BMW 428I XDRIVE L4-2.0L 16-15 BMW 428I XDRIVE GRAN COUPE L4-2.0L 16-14 BMW 435I L6-3.0L 16-15 BMW 435I GRAN COUPE L6-3.0L 16-14 BMW 435I XDRIVE L6-3.0L 16-15 BMW 435I XDRIVE GRAN COUPE L6-3.0L 07-06 BMW 525I L6-3.0L 07-06 BMW 525XI L6-3.0L 16-12 BMW 528I L4-2.0L 11-08 BMW 528I L6-3.0L 16-12 BMW 528I XDRIVE L4-2.0L 10-09 BMW 528I XDRIVE L6-3.0L 2008 BMW 528XI L6-3.0L 07-06 BMW 530I L6-3.0L 07-06 BMW 530XI L6-3.0L 16-08 BMW 535I L6-3.0L 17-10 BMW 535I GT L6-3.0L 17-11 BMW 535I GT XDRIVE L6-3.0L 16-09 BMW 535I XDRIVE L6-3.0L 2008 BMW 535XI L6-3.0L 18-12 BMW 640I L6-3.0L 19-13 BMW 640I GRAN COUPE L6-3.0L 18-14 BMW 640I XDRIVE L6-3.0L 19-14 BMW 640I XDRIVE GRAN COUPE L6-3.0L 15-11 BMW 740I L6-3.0L 15-11 BMW 740LI L6-3.0L 15-13 BMW 740LI XDRIVE L6-3.0L 15-13 BMW ACTIVEHYBRID 3 L6-3.0L 16-12 BMW ACTIVEHYBRID 5 L6-3.0L 15-13 BMW ACTIVEHYBRID 7 L6-3.0L 21-16 BMW M2 L6-3.0L 16-14 BMW M235I L6-3.0L 16-15 BMW M235I XDRIVE L6-3.0L 18-15 BMW M3 L6-3.0L 20-15 BMW M4 L6-3.0L 15-12 BMW X1 L4-2.0L 15-13 BMW X1 L6-3.0L 17-13 BMW X3 L4-2.0L 17-07 BMW X3 L6-3.0L 18-15 BMW X4 L4-2.0L 18-15 BMW X4 L6-3.0L 18-16 BMW X5 L4-2.0L 18-07 BMW X5 L6-3.0L 19-08 BMW X6 L6-3.0L 16-12 BMW Z4 L4-2.0L 16-06 BMW Z4 L6-3.0L - Comparison
COMPETITOR NAME COMPETITOR PART # ACDelco PF461G Auto Extra 61857327 BMW 11 42 7 541 827 BMW 11 42 8 683 204 BMW 11 42 8 683 196 BMW 11 42 7 953 125 BMW 11 42 7 566 327 BMW 11 42 7 854 049 BMW 11 42 7 953 129 BMW 11 42 7 854 445 BMW 11 42 7 640 862 Bosch 3307 Carquest R84327 Carquest Premium Filters 84327 Champ P969 Champion COC10075 Champion Filters COC10075 Defense Filters DL10075 Driveworks DW-5607 ECOGARD X5607 FERGUSON G7327 FRAM Drive FD10075 FRAM Force FF10075 FRAM Synthetic Endurance FE10075 FRAM Titanium FS10075 FRAM Tough Guard TG10075 FRAM Ultra Synthetic XG10075 FVP G7327 Group 7 V5607 Hastings LF634 K&N PS-7014 K&N HP-7014 LUBER-FINER P969 MAHLE OX 387D ECO MAHLE OX387DECO Mann-Filter HU8011Z Mann-Filter HU816X MicroGard MGL10075 Mighty Distributing System MX969 Mileguard MO10075 Mobil MO-969 Mobil 1 M1C-155A NAPA 7327 NAPA 27327 NAPA Platinum Filters 47327 NAPA Silver Filters 37327 Parts Master 67327X Parts Master 67327 Pennzoil PZ163 Pentius PCB10075 Performax PO-163 Premium Guard PG5607 Promotive PH5607 Pronto PO-5670 PureZone 8-57327 Purolator PL15607 Purolator L15607 Purolator BOSS PBL15607 Purolator PureONE PL15607 Purolator TECH TL15607 PurolatorONE PL15607 Quaker State QS163 Service Champ CF10075 STP Filters S10075XL STP Filters S10075 STP Filters S10075ML Ultra XG10075 Valvoline VO-91 Wix 57327XP Wix 57327 - Installation
- Remove drain plug from housing cap if present and allow oil to drain from cap. Remove housing cap, old gaskets/O-Rings, and filter element. Discard the used filter element and gaskets/O-Rings in the proper manner.
- Clean filter housing components and apply a light coating of clean engine oil to the new provided gaskets/O-Rings. Install, being careful to avoid damage to the gaskets/O-Rings. Avoid twisting of the gaskets/O-Rings.
- Install new filter element into the housing cap. Reinstall the housing cap and tighten to the proper installation torque as listed on the housing cap or in the service manual. Reinstall the housing cap drain if present to the proper installation torque.
